Audio-Technica BPHS1-XF4 Communications Headset

Communications Headset with 4-Pin XLRF-Type Connector

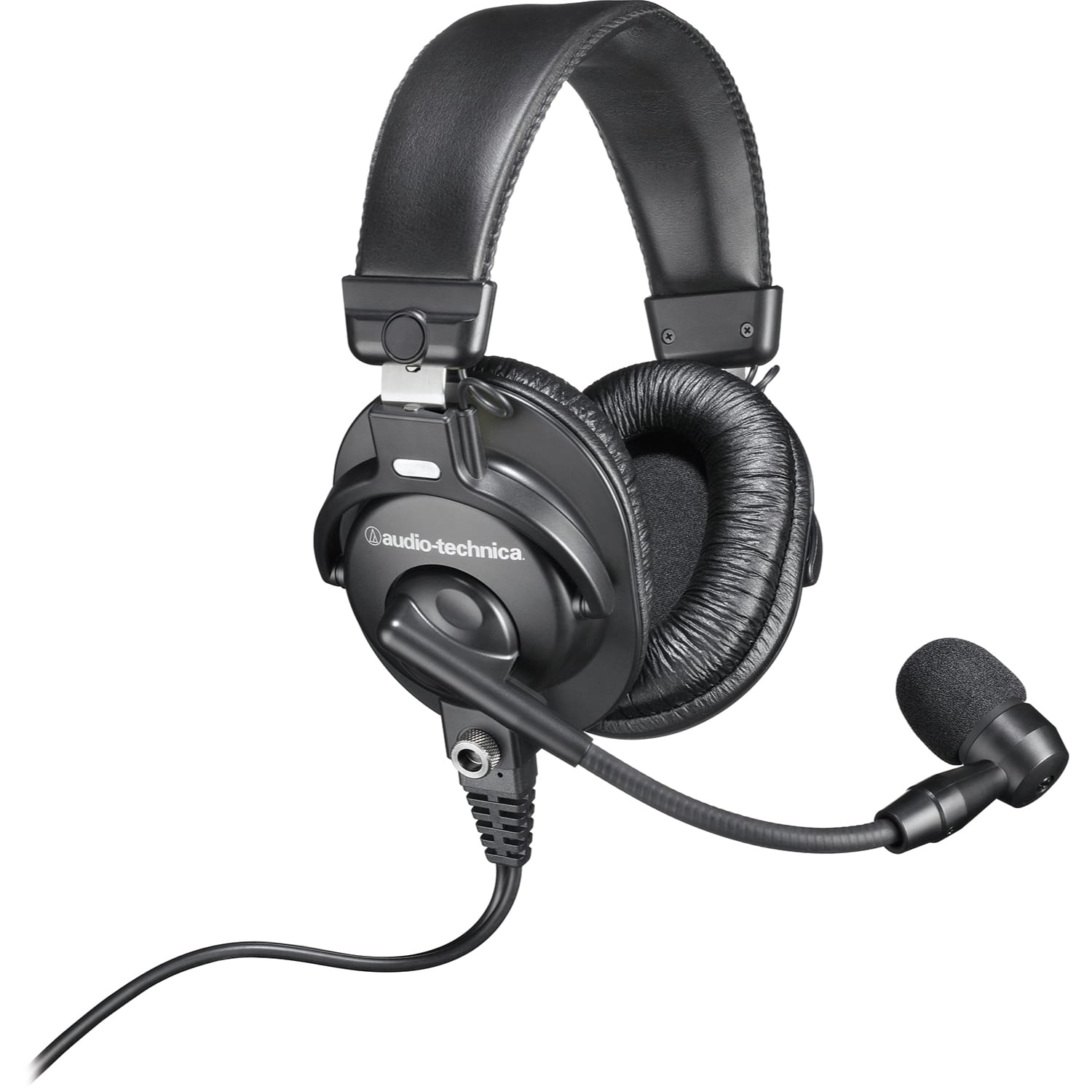

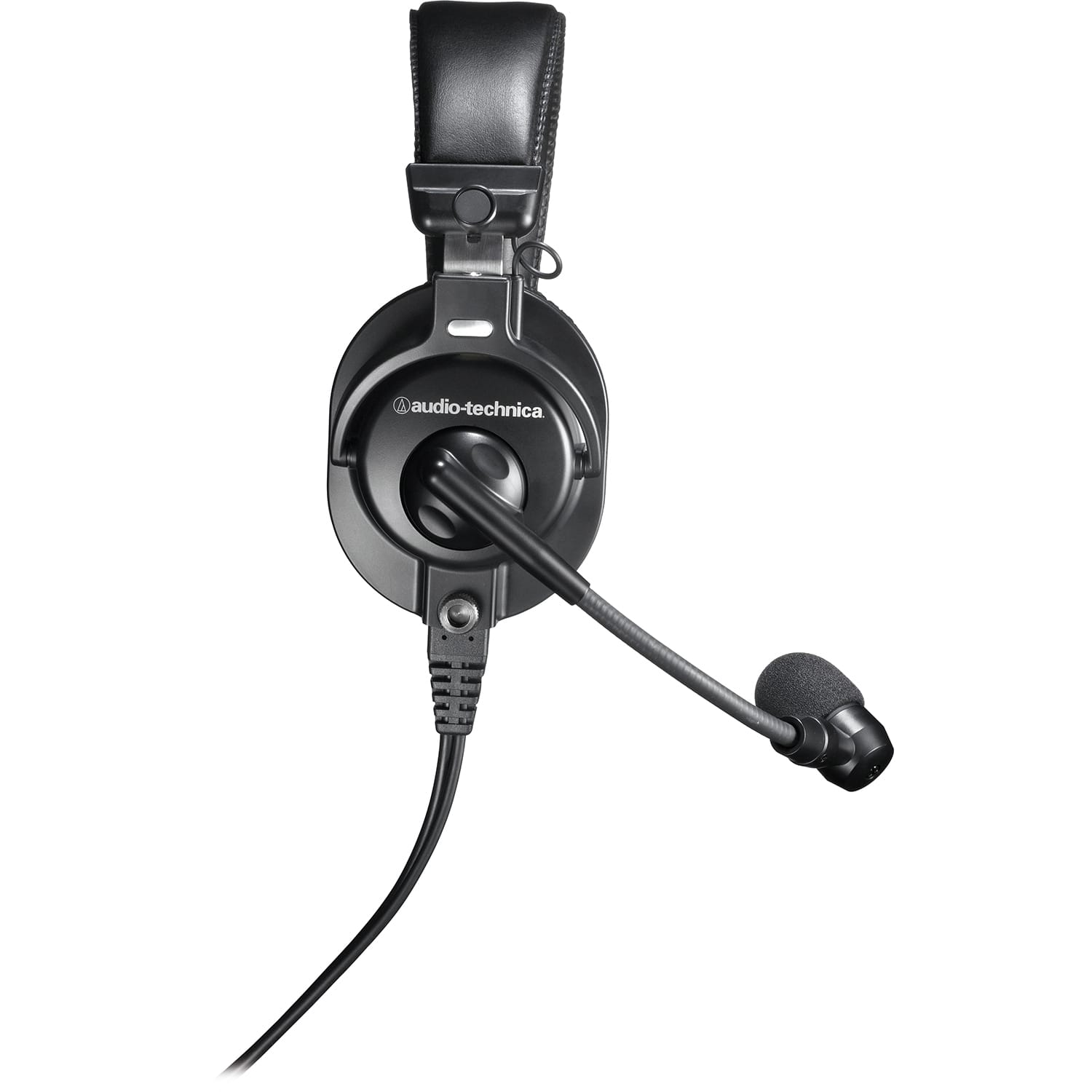

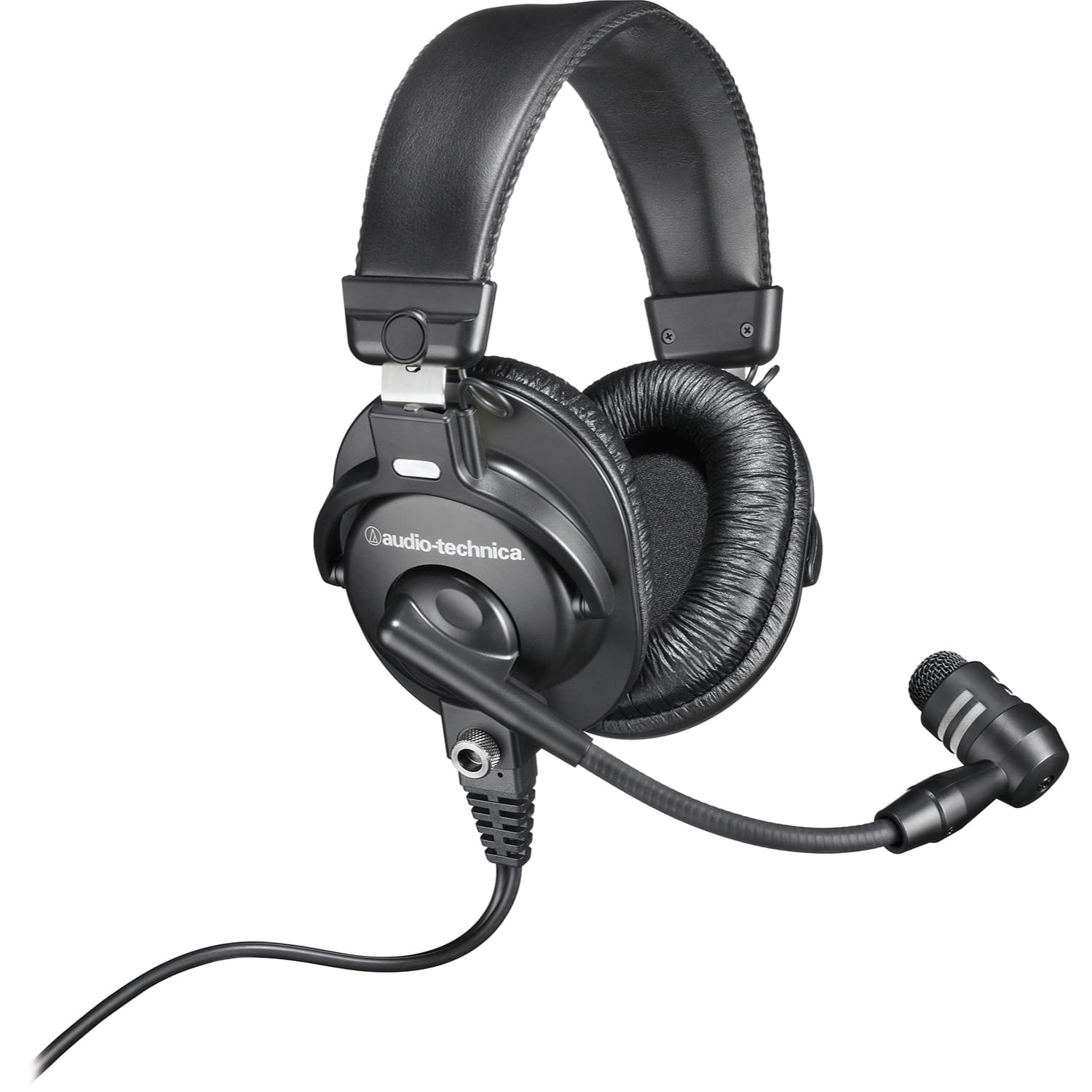

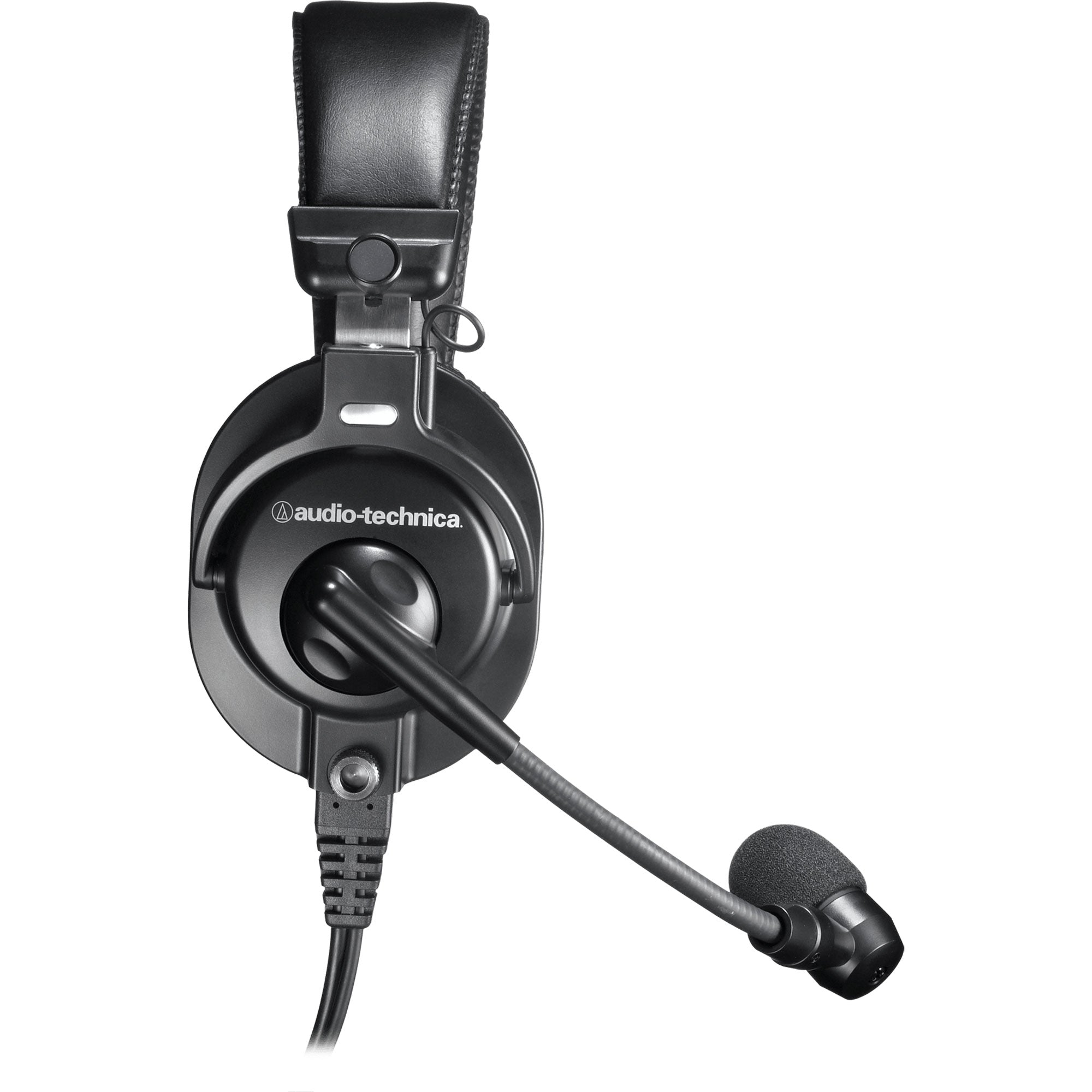

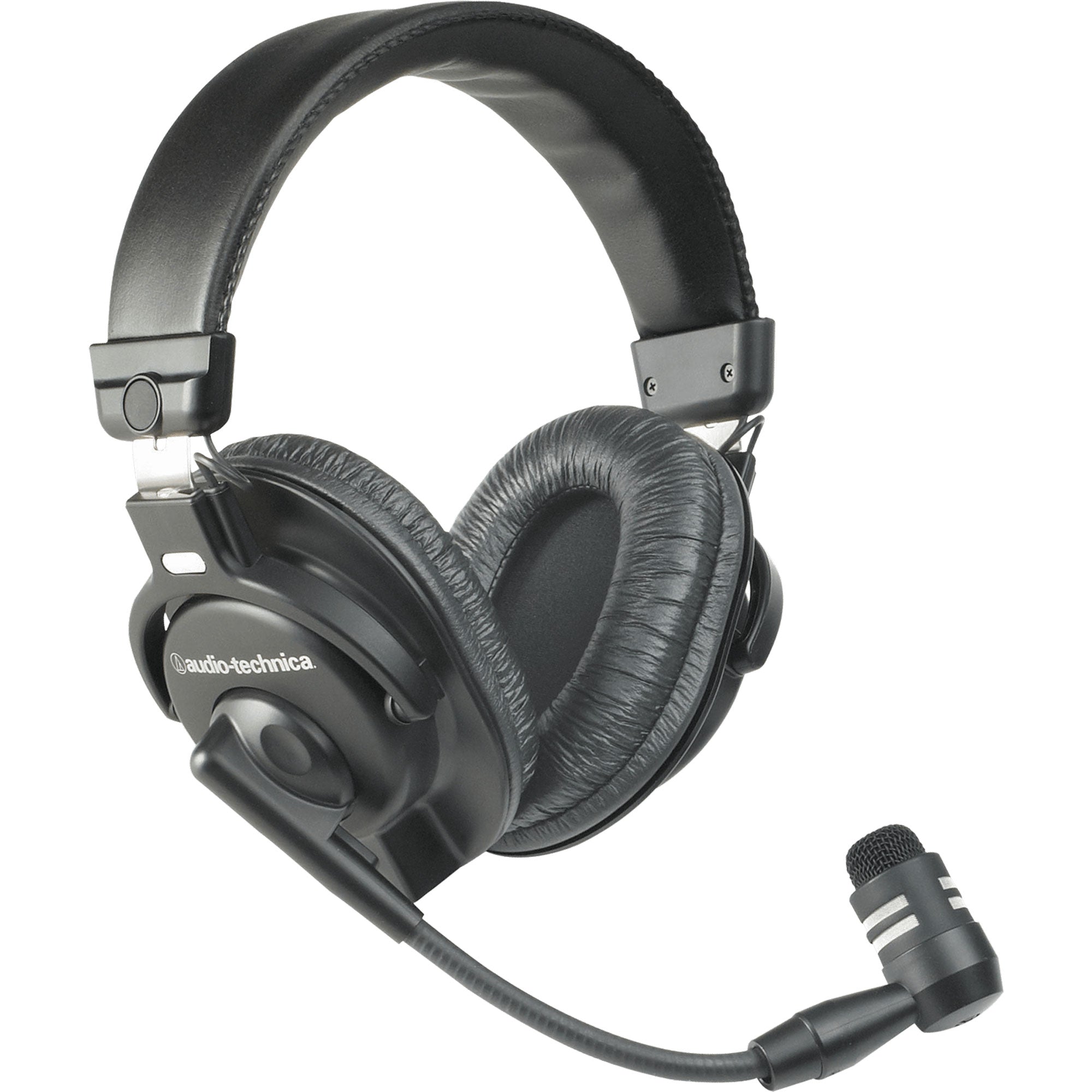

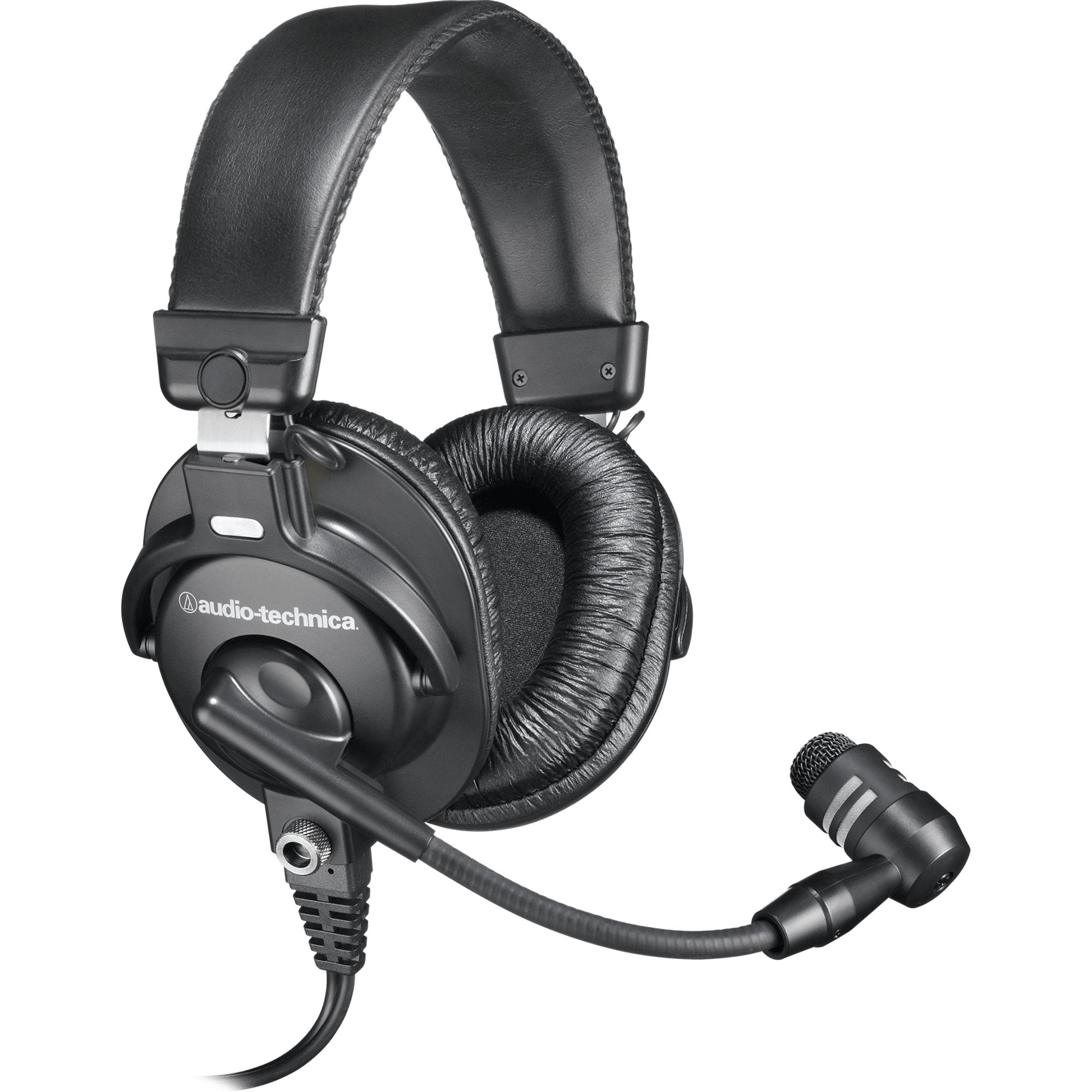

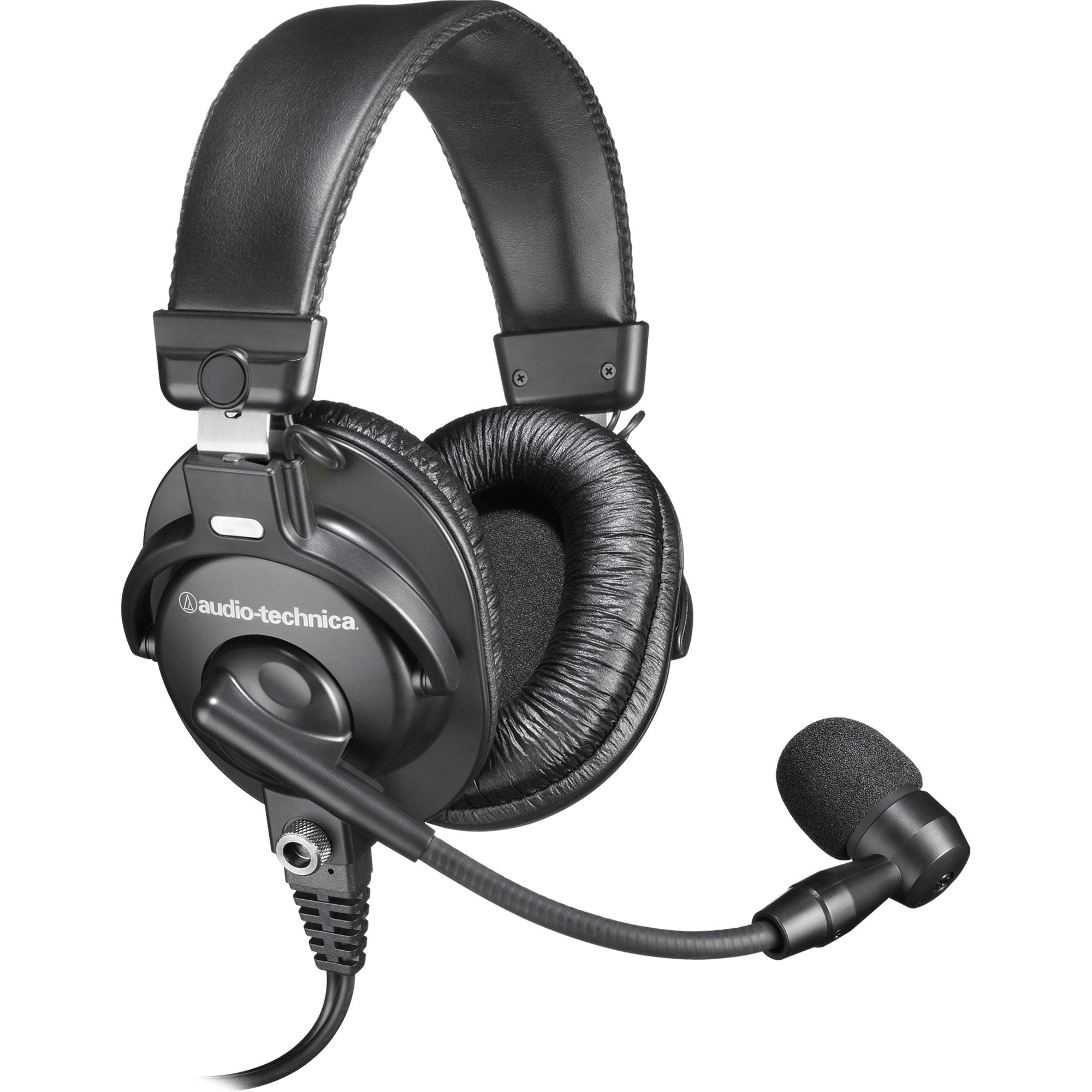

Created for use with intercom systems, this rugged communications headset offers natural, highly intelligible and focused vocal reproduction, closed-back circumaural (around-the-ear) ear cups to seal out background noise, and a high-output dynamic microphone mounted on a flexible gooseneck boom.

The headset's microphone has a cardioid polar pattern tailored for pickup of speech with maximum voice intelligibility over a wide range of frequencies. It is more sensitive to sound originating directly in front of the element, making it useful in reducing pickup of unwanted sounds. The flexible gooseneck boom swivels for easy positioning on either the right or left side.

Features:

• Microphone features polar pattern and frequency response tailored for natural, highly intelligible vocal reproduction
• Closed-back circumaural ear cups help seal out crowd noise and other background distractions
• Neodymium magnets in microphone and headphones for high output level & detailed sound reproduction
• Rugged design with user-replaceable cable and ear pads
• Cardioid pickup pattern of the dynamic microphone rejects off-axis sounds
• Boom-mounted microphone can be positioned on the left or right side
• Adjustable cushioned headband and lightweight design for long-wearing comfort
• Detachable cable (BPCB4) terminates in 4-pin XLRF-type connector for use with intercom systems

Specifications:

• Type:
  Closed-back Dynamic (Headphone)
  Cardioid Dynamic (Microphone)
• Driver Diameter: 40 mm (Headphone)
• Voice Coil: Copper-clad aluminum wire
• Frequency Response:
  20-20,000 Hz (Headphone)
  40-20,000 Hz (Microphone)
• Maximum Input Power: 1,600 mW at 1 kHz
• Sensitivity:
  100 dB (Headphone)
  -57 dB (1.4 mV) re 1V at 1 Pa (Microphone)
• Impedance:
  65 ohms (Headphone)
  560 ohms (Microphone)
• Weight: 264 g (9.3 oz)
• Dimensions:
  82.0 mm (3.23") wide (earcup);
  46.0 mm (1.81") wide (headband);
  180.1 mm (7.09") long (boom), microphone extended;
  24.0 mm (0.94") diameter (microphone)

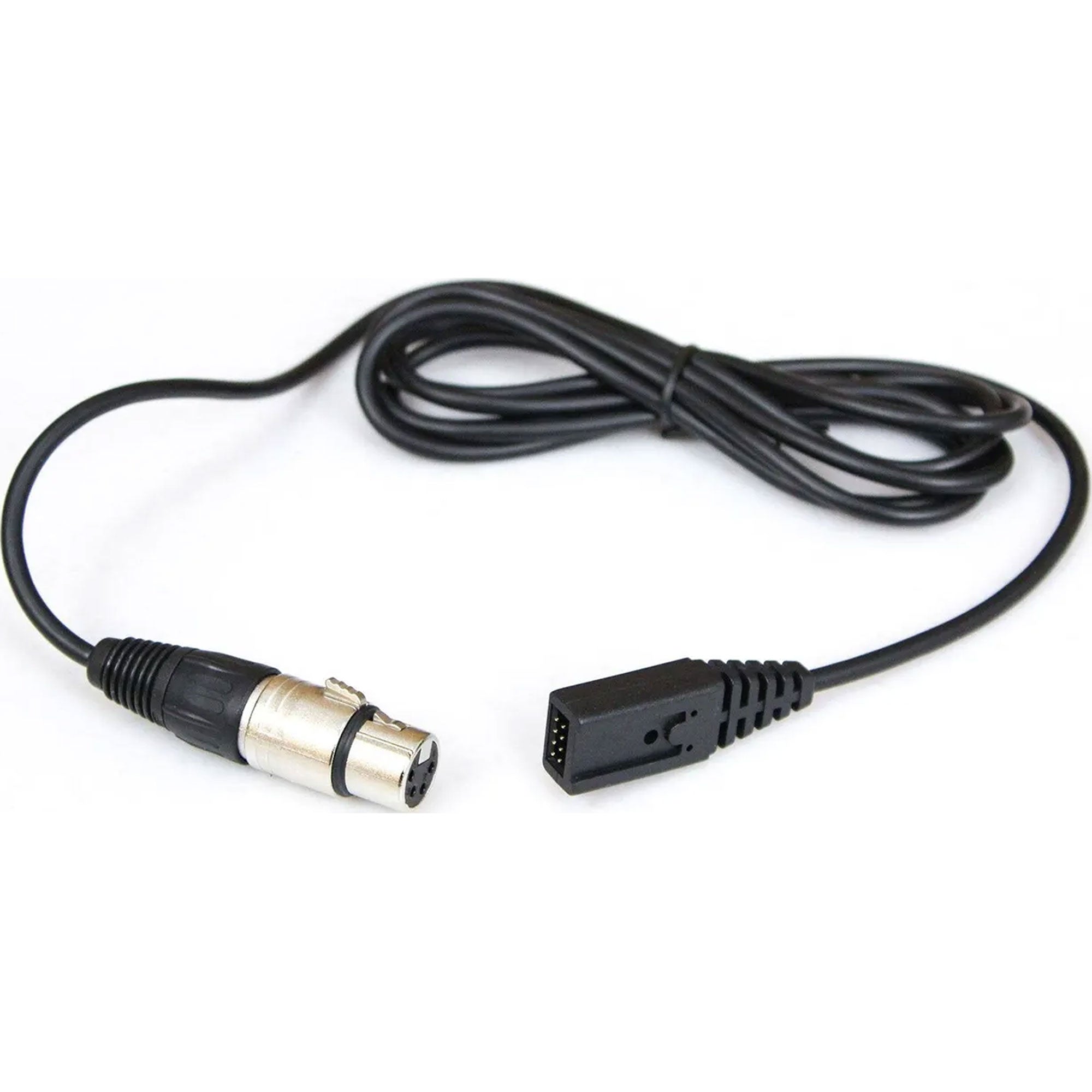

• Cable: 2 m (6.6') long with 8-pin connector at headset end; 4-pin XLRF-type connector output

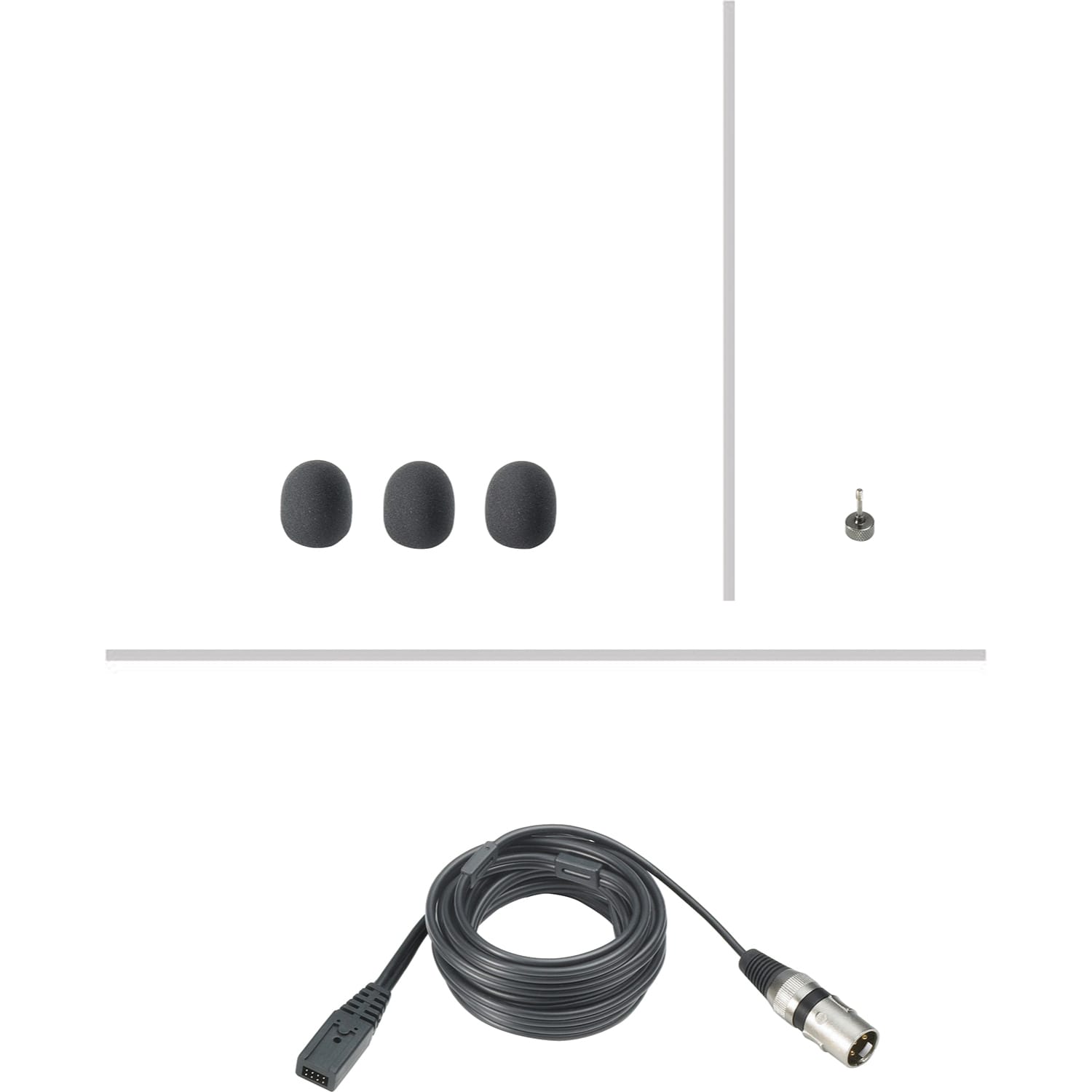

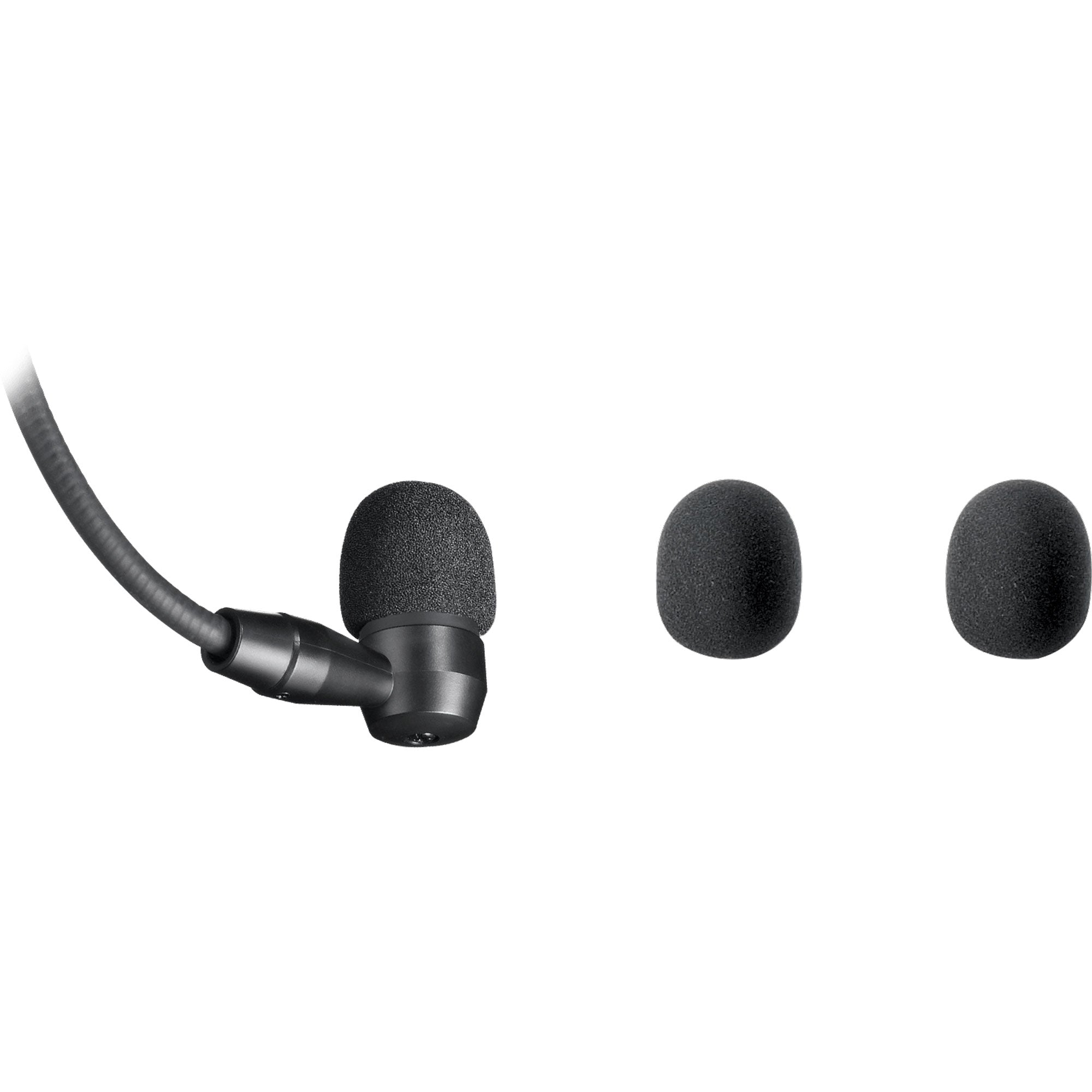

• Accessories Included: 3 windscreens; spare connector screw
