Audio-Technica ATW-901A/L System 9 VHF Wireless System (Lavalier Microphone)

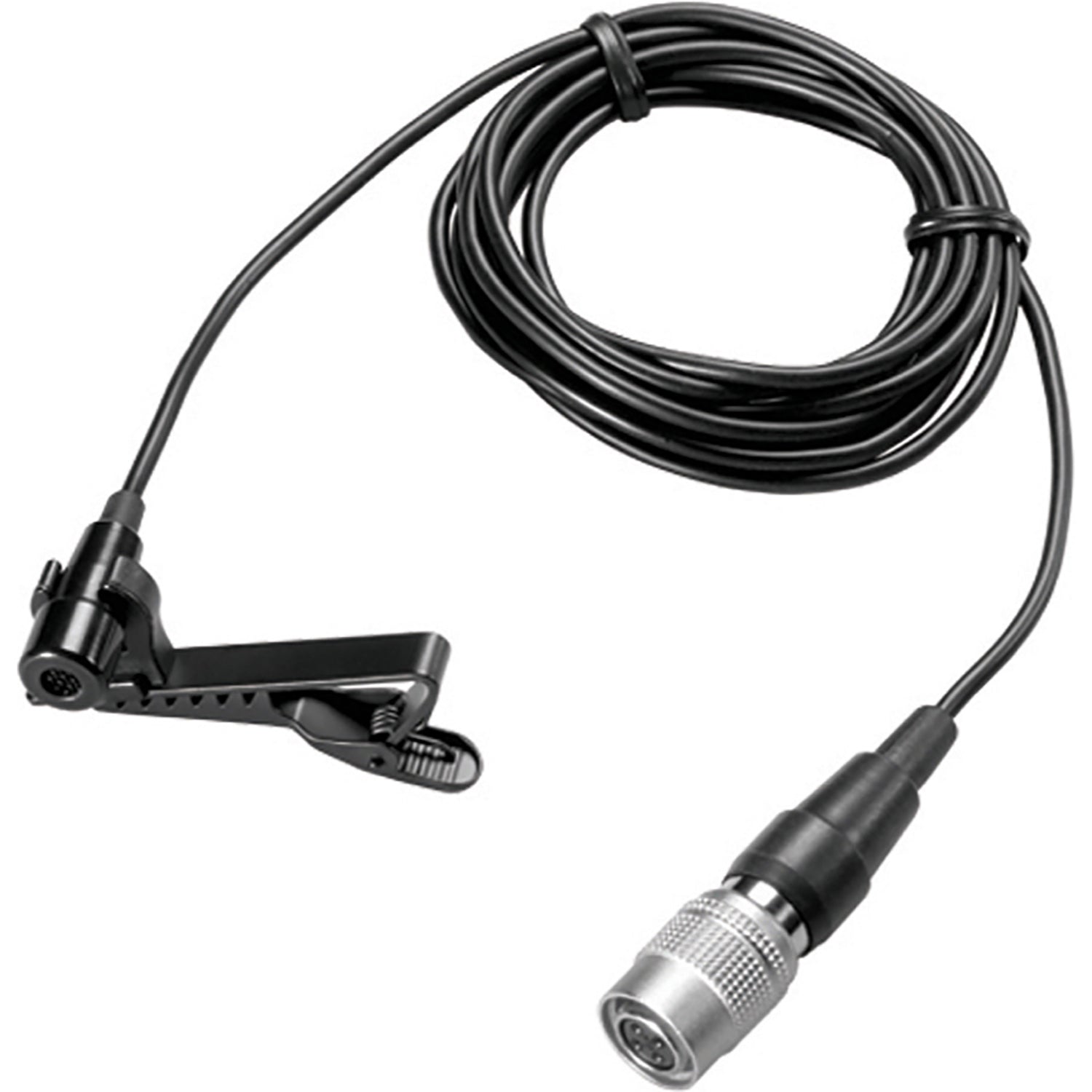

ATW-901A/L System 9 Wireless System w/ Omnidirectional Lavalier Microphone

Audio-Technica's System 9 is a four-channel frequency-agile wireless system designed to provide rock-solid performance along with easy setup and clear, natural sound quality. Featuring sleek, stackable, contemporary styling, System 9 is available in handheld, headworn, guitar, lavalier and body-pack configurations. The system offers four compatible user-switchable VHF channels (169.505, 170.245, 171.045, and 171.905 MHz).

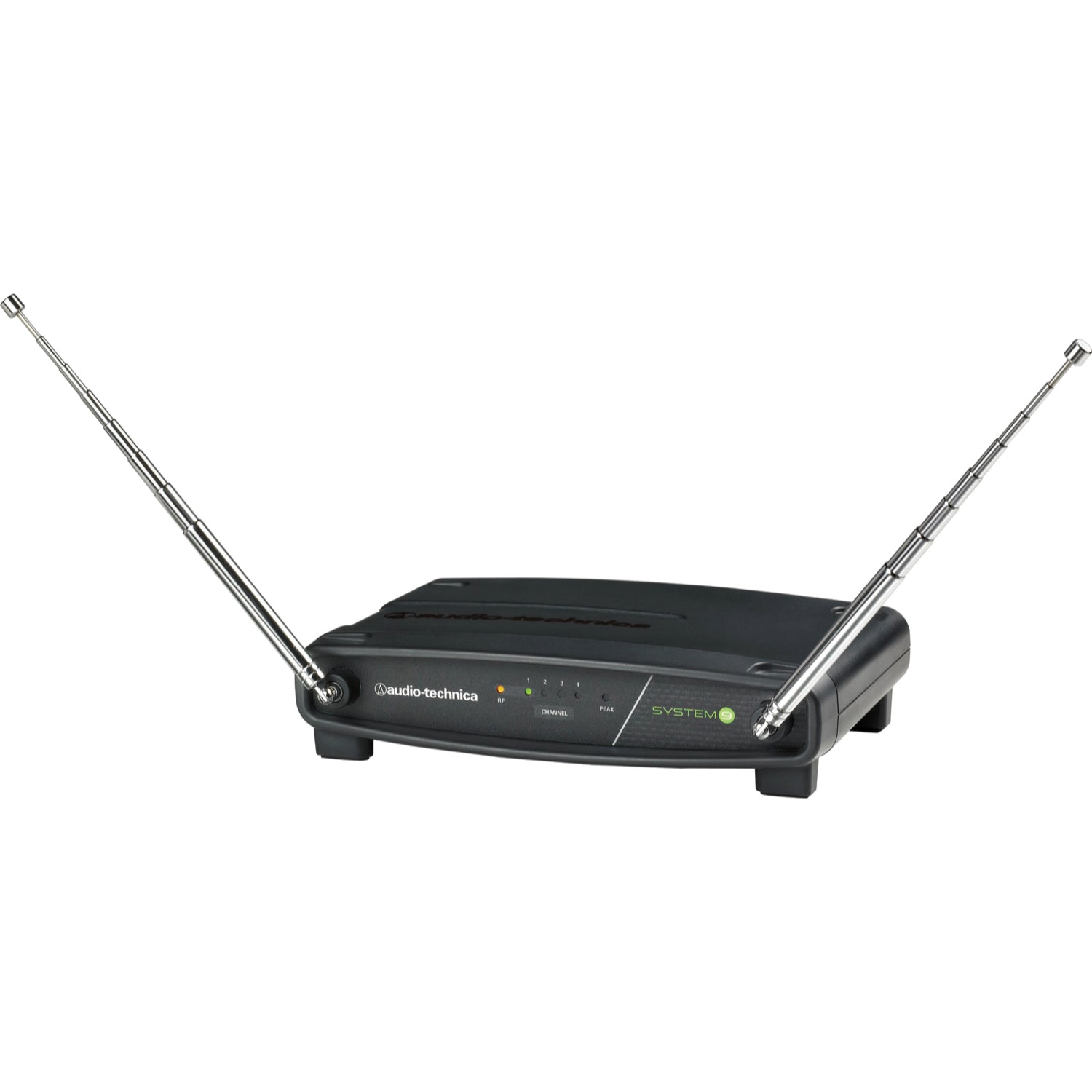

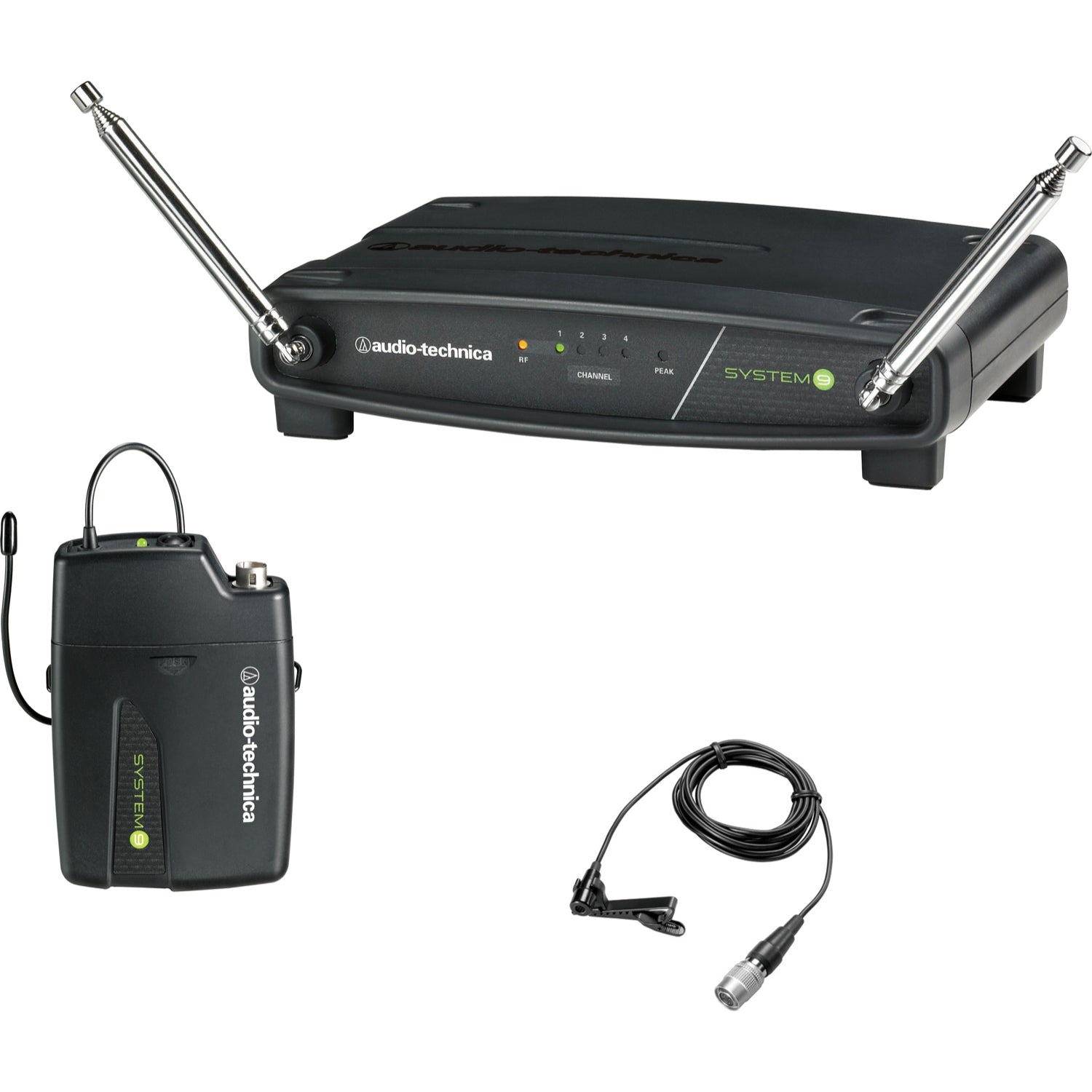

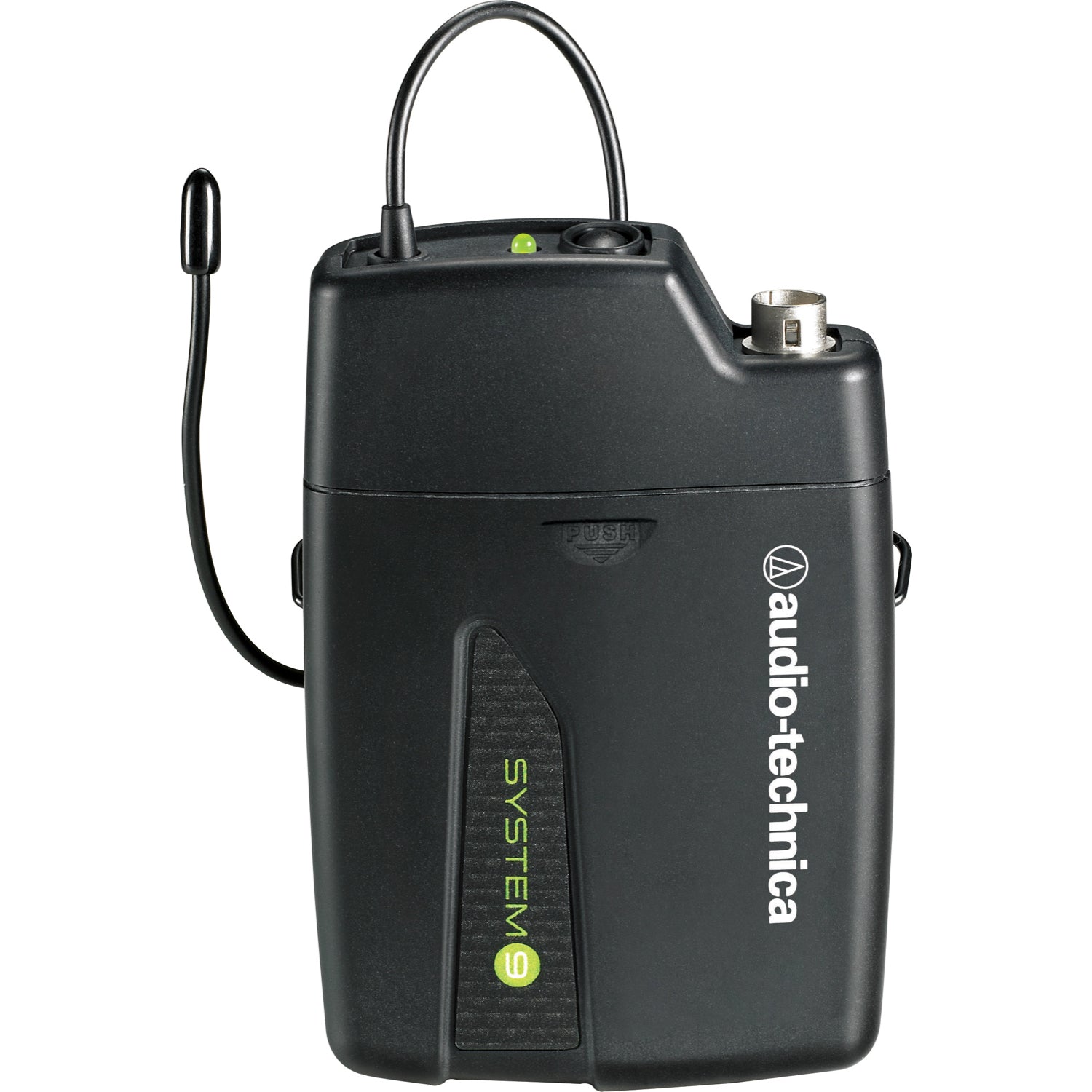

Each System 9 configuration includes the ATW-R900a receiver and either a body-pack transmitter or handheld microphone/transmitter. The ATW-R900a is a non-diversity, single-channel receiver with advanced dipole antenna design for extended operating range, which improves operation by providing a ground element in addition to the usual signal element. The ATW-R900a also offers volume control along with AF Peak, RF and Power indicator lights.

Features:

• Easy operation and clear, natural sound quality
• 4 selectable frequency-coordinated VHF channels
• Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
• Reliable performance and durable construction
• Advanced dipole antenna system for extended operating range

Specifications:

• Operating Frequencies: VHF highband, 169 MHz to 172 MHz
• Modulation Mode: FM
• Maximum Deviation: +/-10 kHz
• Dynamic Range: >/=90 dB (A-weighted), typical
• Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
• Operating Range: 200' (60 m) typical
• Open range environment with no interfering signals
• Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
• Battery performance may be reduced at very low temperatures
• Frequency Response: 80 Hz to 13 kHz
• Receiver Specifications
• Receiving System: Non-diversity, single-channel, dual antenna system
• Image Rejection: 50 dB minimum
• RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
• Audio Output:
  Nominal Output Level
• XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load) 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
