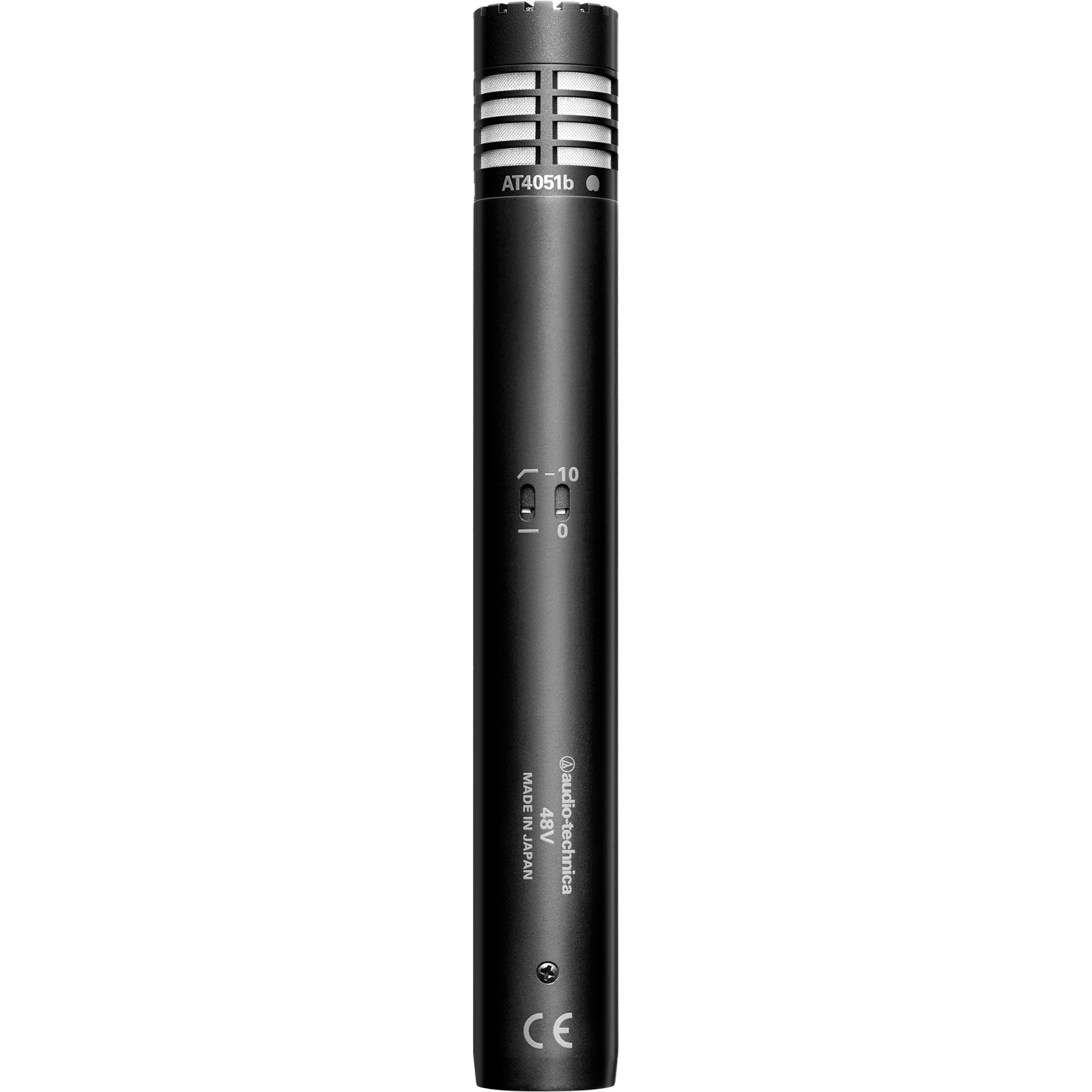

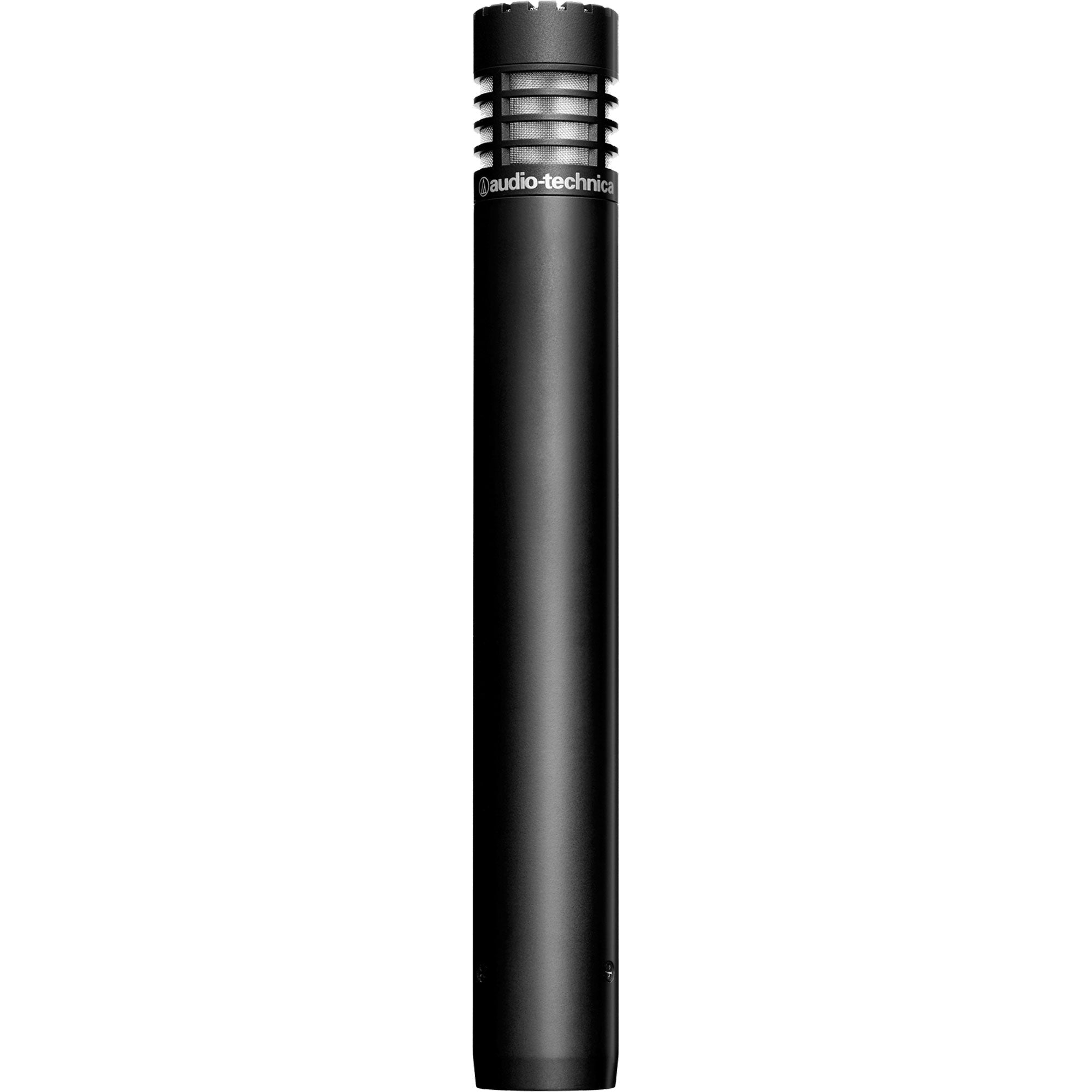

Audio-Technica AT4051b Cardioid Condenser Microphone

Cardioid Condenser Microphone

Ideal for professional recording and critical applications in broadcast, this versatile studio performer may be used with confidence in a wide variety of professional miking applications. Featuring direct-coupled balanced outputs for clean signals in high-output conditions, the microphone is totally free of the distortion associated with conventional transformer-coupled outputs. Its fast response to transients contributes to the open, transparent reproduction of even the most difficult-to-capture instruments. The microphone is fully RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).

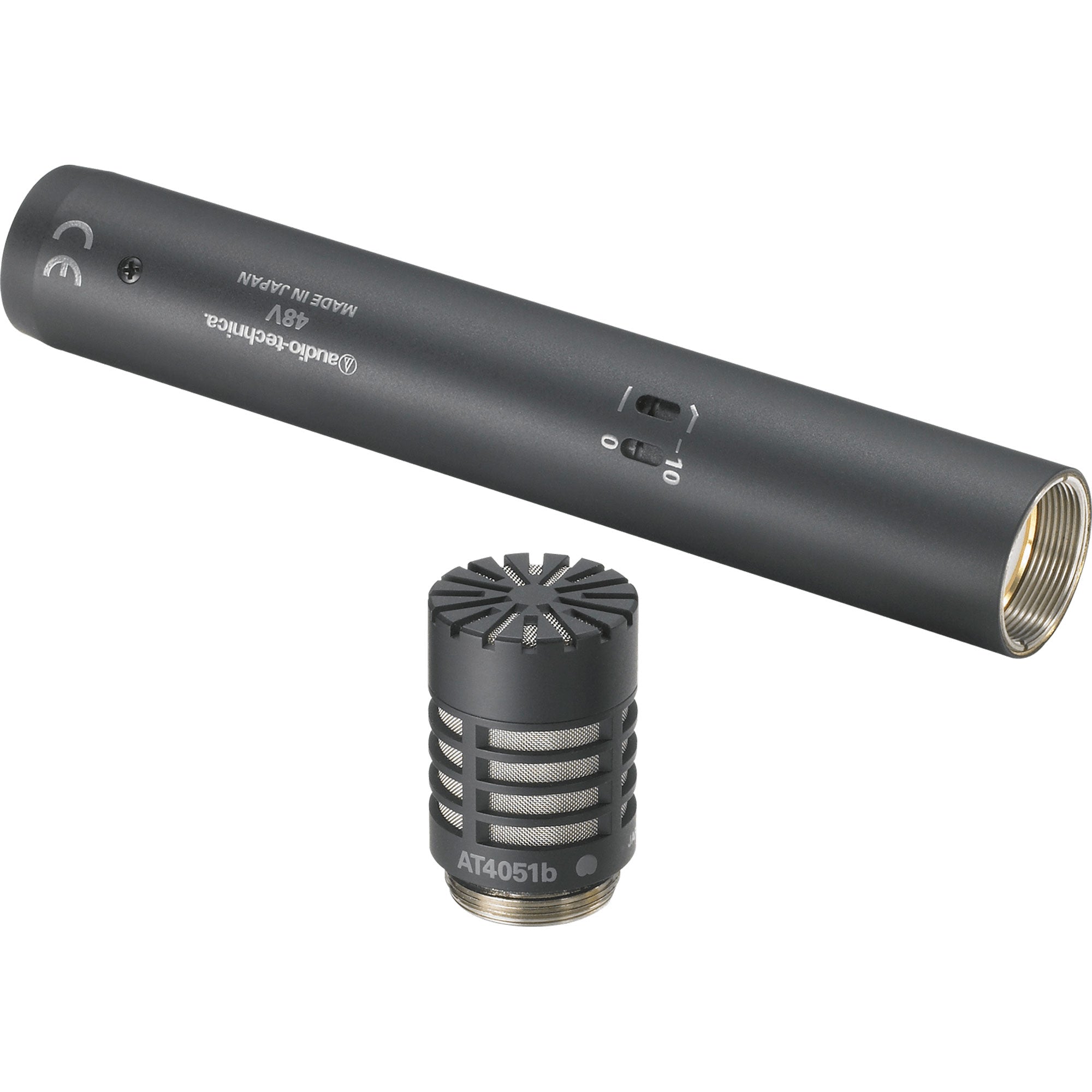

The AT4051b consists of two modular subassemblies: an AT4900b-48 body and an AT4051b-EL cardioid head capsule (both available separately). Additional interchangeable capsules are available in omnidirectional (AT4049b-EL) and hypercardioid (AT4053b-EL).

Features:

• Specially engineered to meet the most critical acoustic requirements of professional recording, broadcast and sound reinforcement
• High front-to-back rejection ratio-cardioid polar pattern improves isolation of desired sound source
• Direct-coupled, balanced output results in a clean signal even under high-output conditions
• Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
• Switchable 80 Hz hi-pass filter and 10 dB pad
• Rugged turned-brass microphone housing for enduring dependability
• State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards
• RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)

Specifications:

• ELEMENT: Externally polarized (DC bias) capacitor
• POLAR PATTERN: Cardioid
• FREQUENCY RESPONSE: 20-20,000 Hz
• LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
• OPEN CIRCUIT SENSITIVITY: -34 dB (19.9 mV) re 1V at 1 Pa
• IMPEDANCE: 50 ohms
• MAXIMUM INPUT SOUND LEVEL: 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)
• NOISE: 16 dB SPL
• DYNAMIC RANGE (TYPICAL): 129 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 78 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 48V DC, 4.8 mA typical
• SWITCH: Flat, roll-off; 10 dB pad (nominal)
• WEIGHT: 126 g (4.4 oz)
• DIMENSIONS: 155.0 mm (6.10") long, 21.0 mm (0.83") maximum body diameter
• OUTPUT CONNECTOR: Integral 3-pin XLRM-type
• OPTIONAL INTERCHANGEABLE ELEMENTS: AT4049b-EL (omnidirectional); AT4053b-EL (hypercardioid)

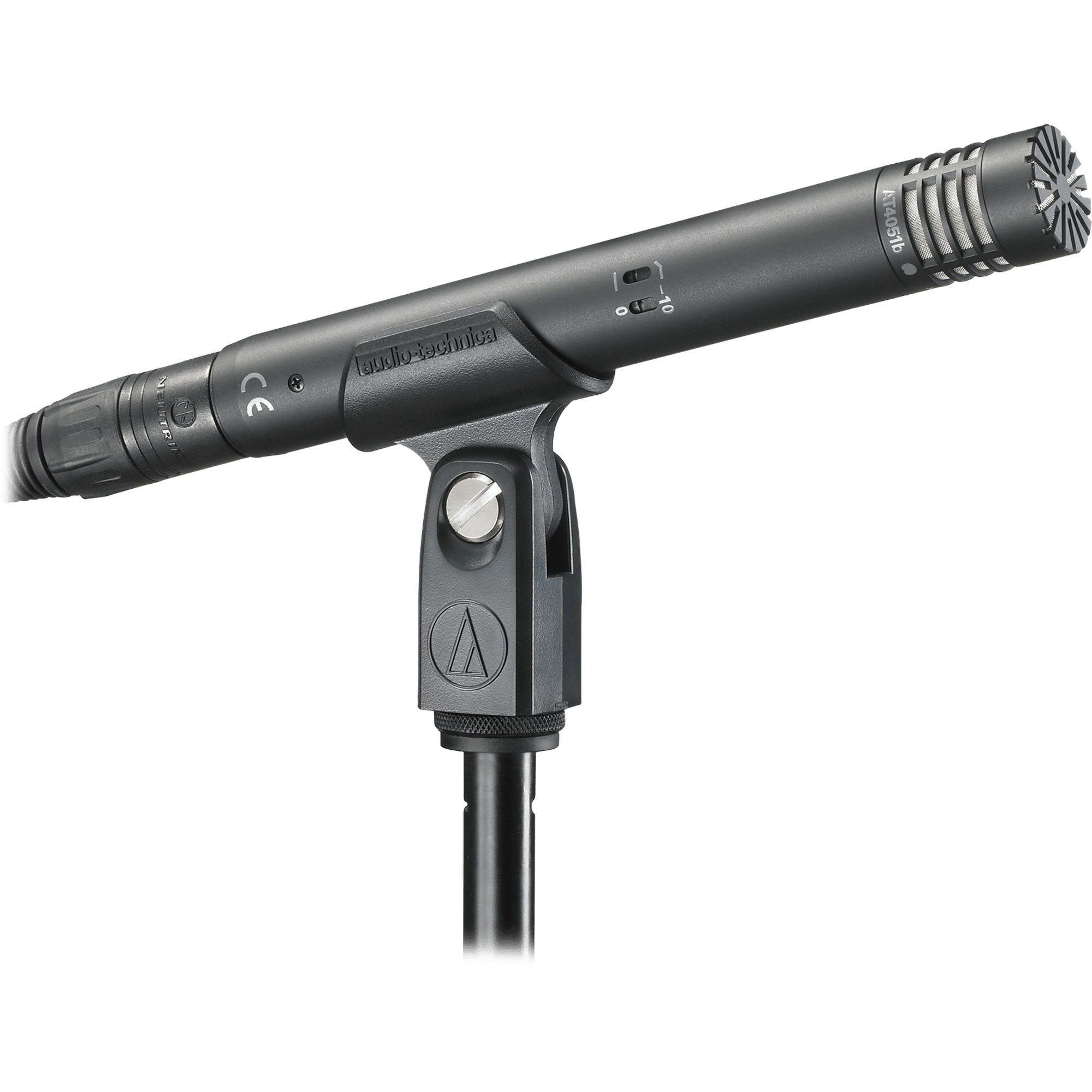

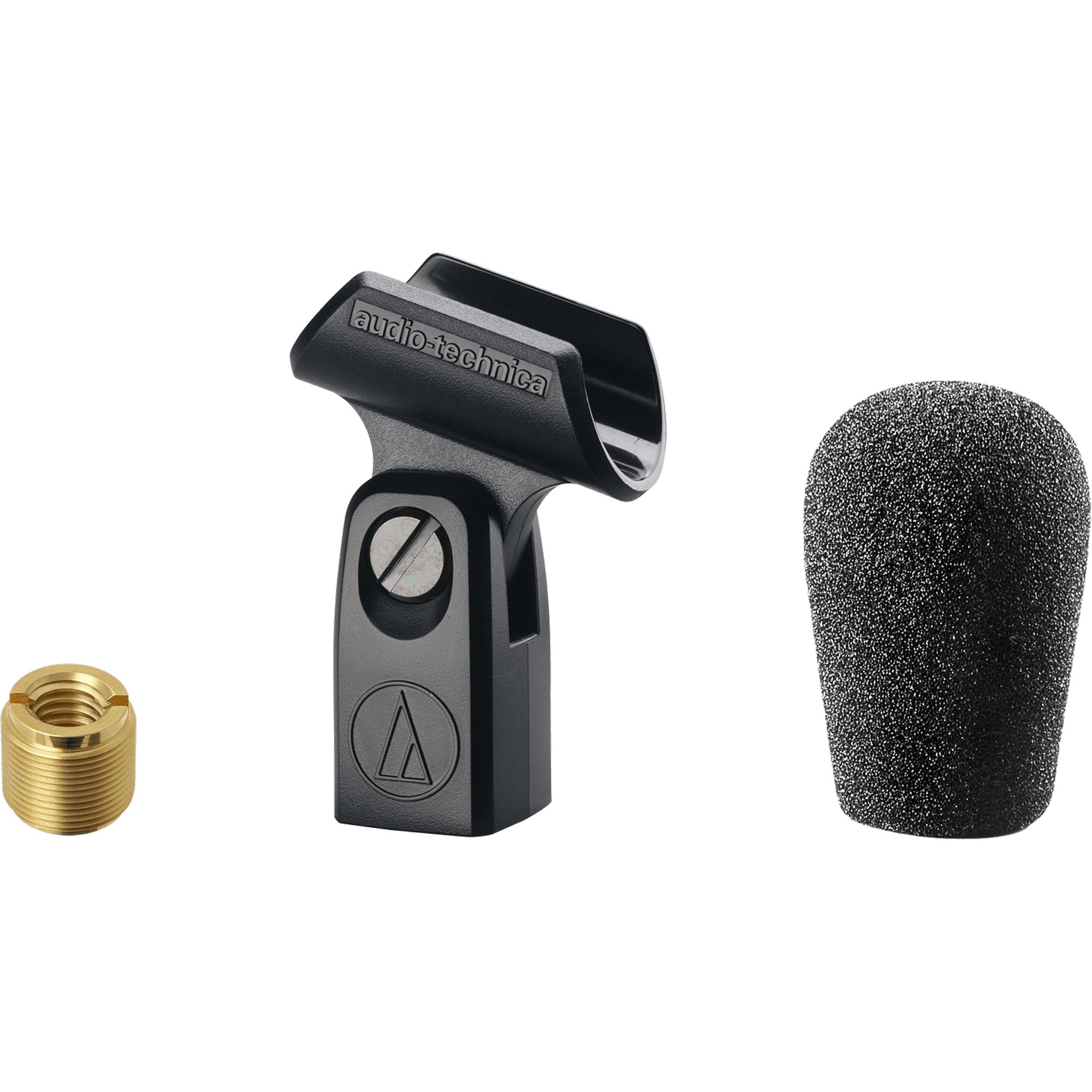

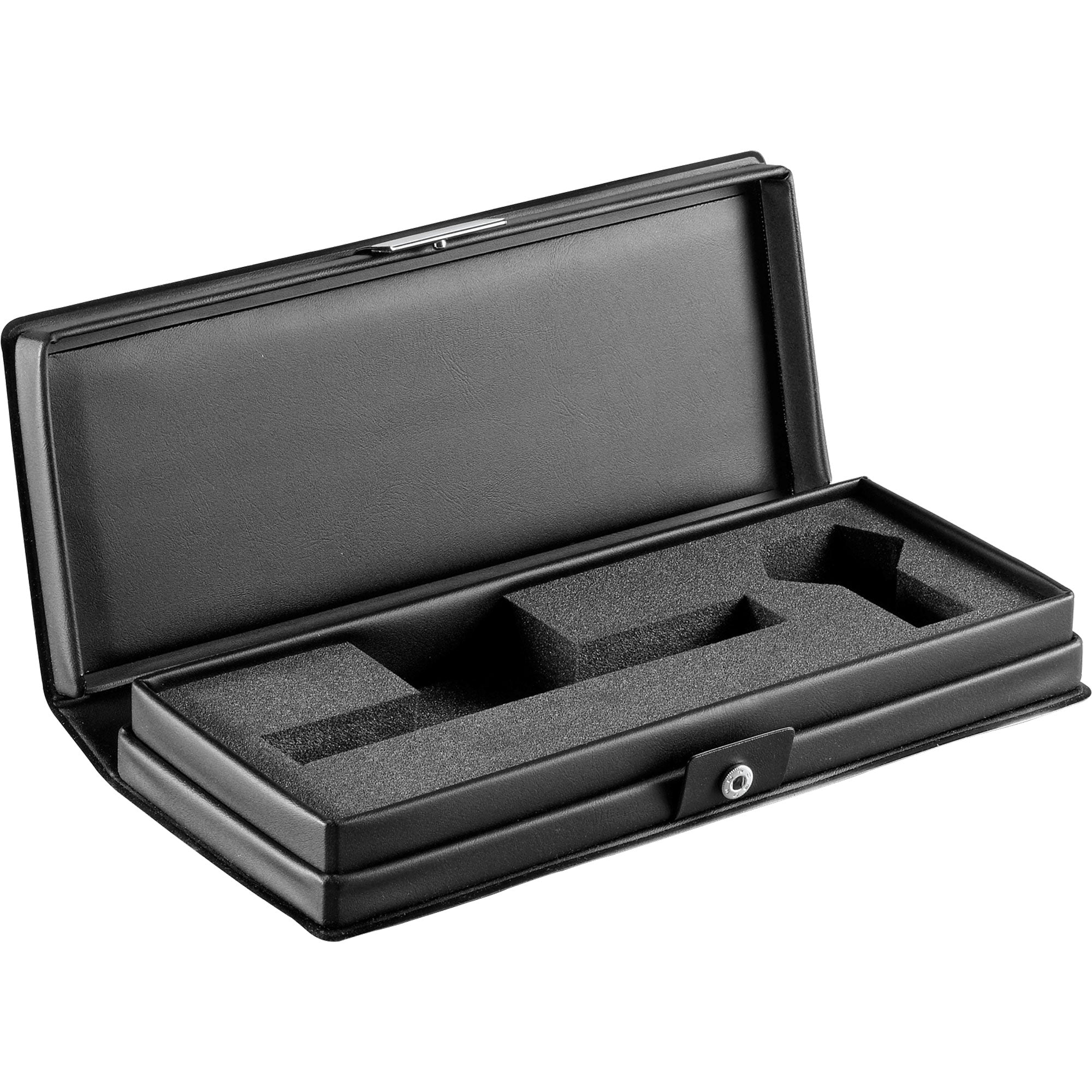

• ACCESSORIES FURNISHED: AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; protective carrying case
• AUDIO-TECHNICA CASE STYLE: S1
