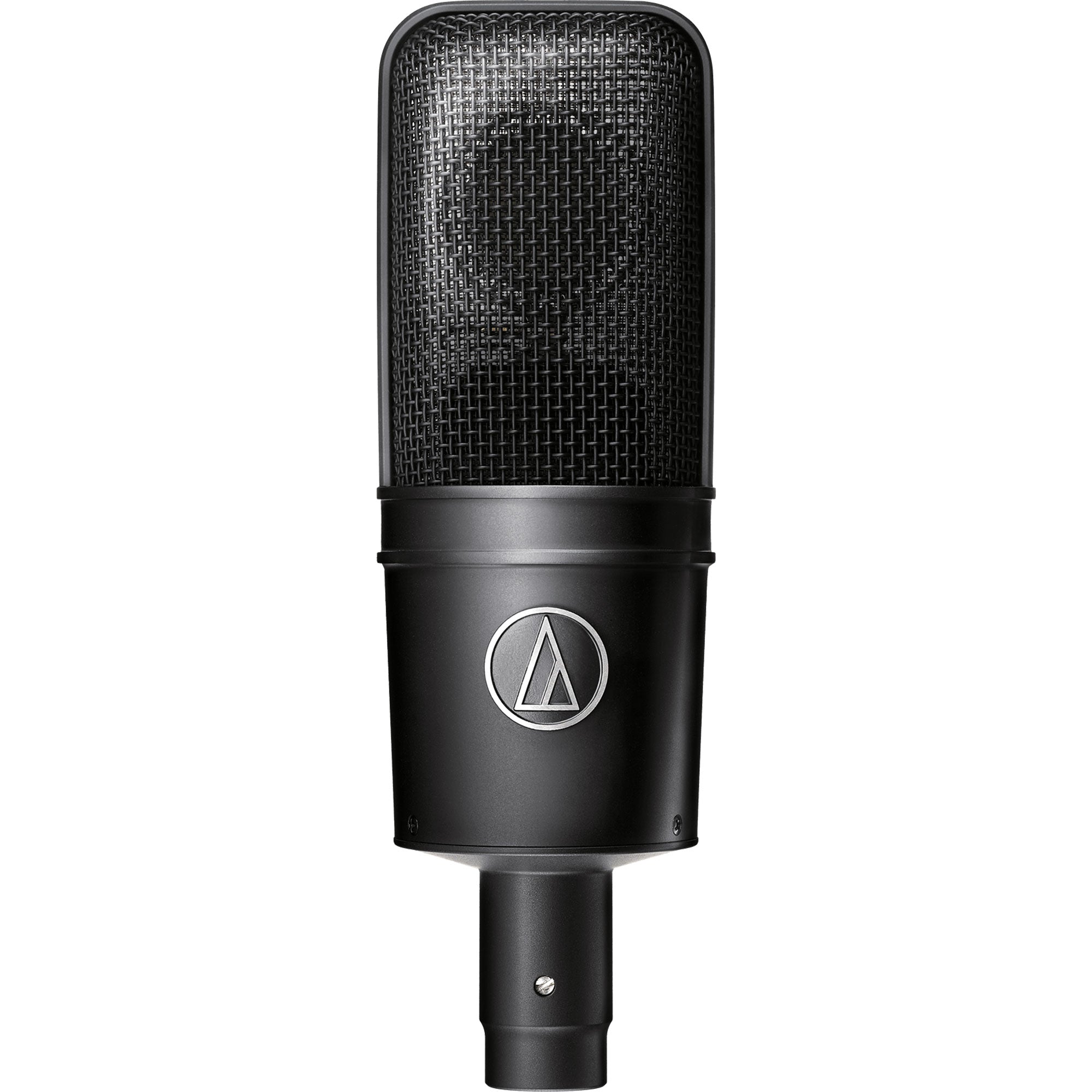

Audio-Technica AT4040 Cardioid Condenser Microphone

Cardioid Condenser Microphone

The AT4040 side-address condenser microphone features an advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics. A marriage of technical precision and artistic inspiration, the AT4040 offers exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility. This ultra-consistent microphone may be used with confidence in a wide variety of studio and live miking applications, even under the stringent demands of digital recording systems. The AT4040's low-noise circuitry is symmetrical and transformerless, resulting in exceptional transient response and clean output signals for transparent reproduction of even the most troublesome of instruments and sound effects.

Features

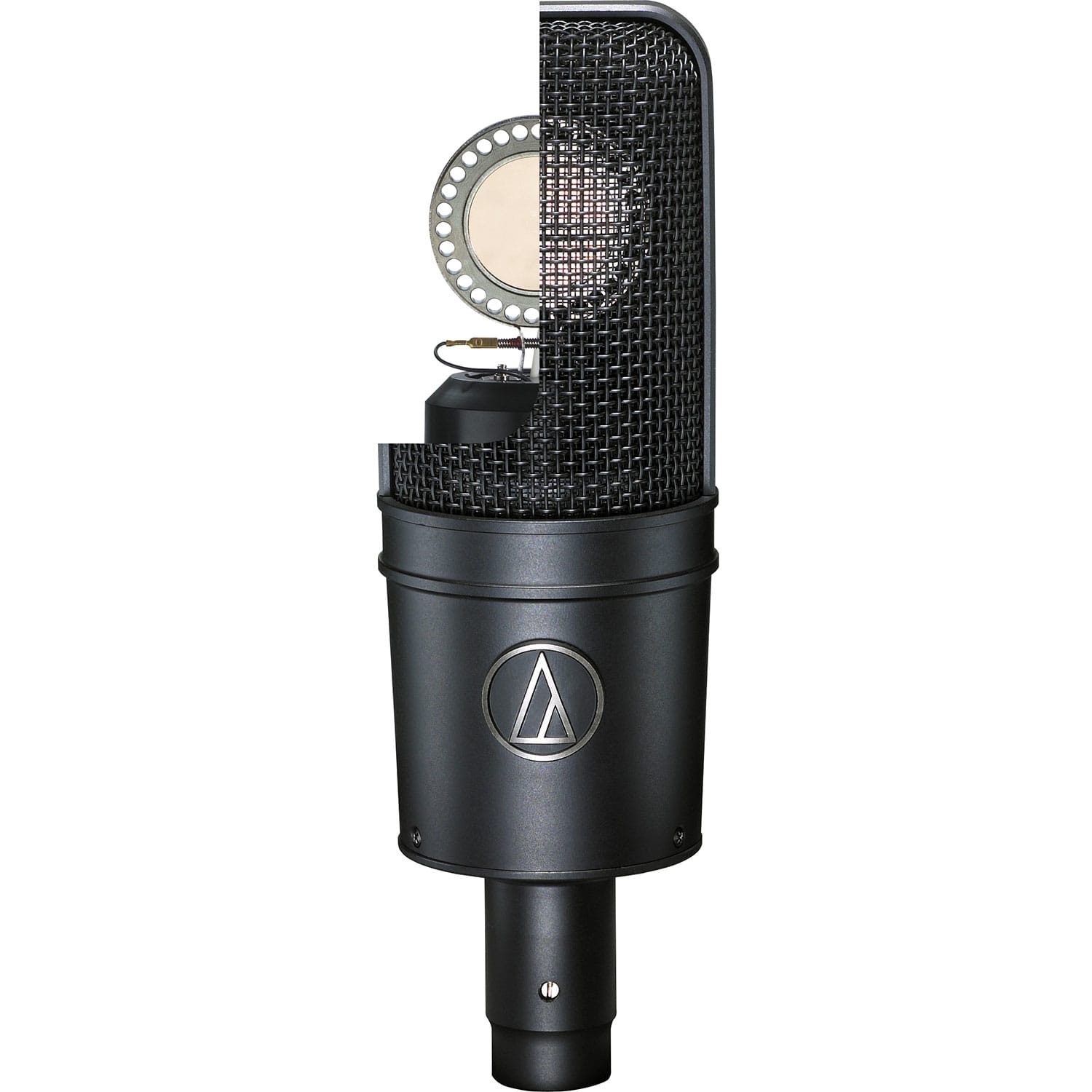

• Technically-advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics

• Externally polarized (DC bias) true condenser design

• Exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility

• Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients

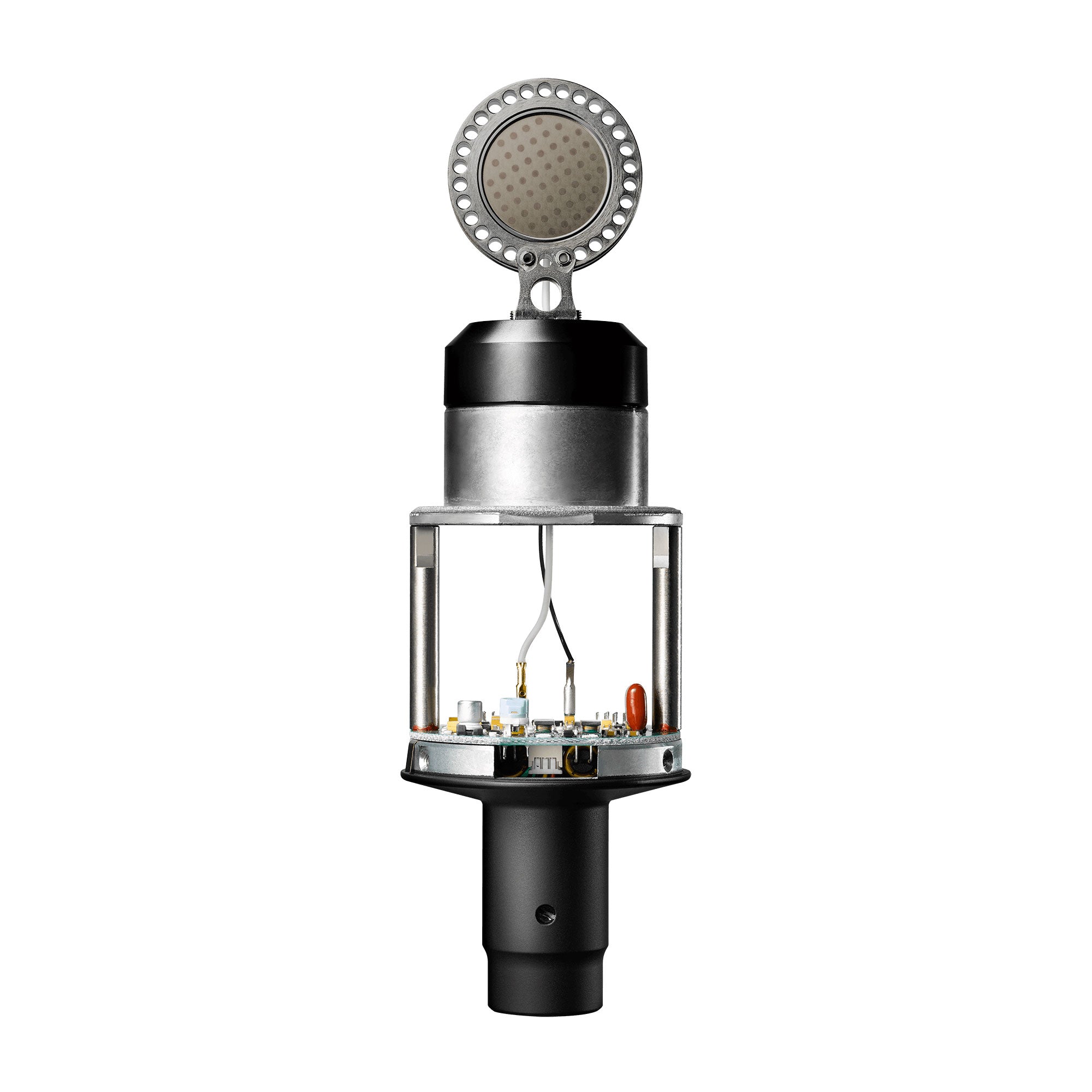

• Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity

• Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

• State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards

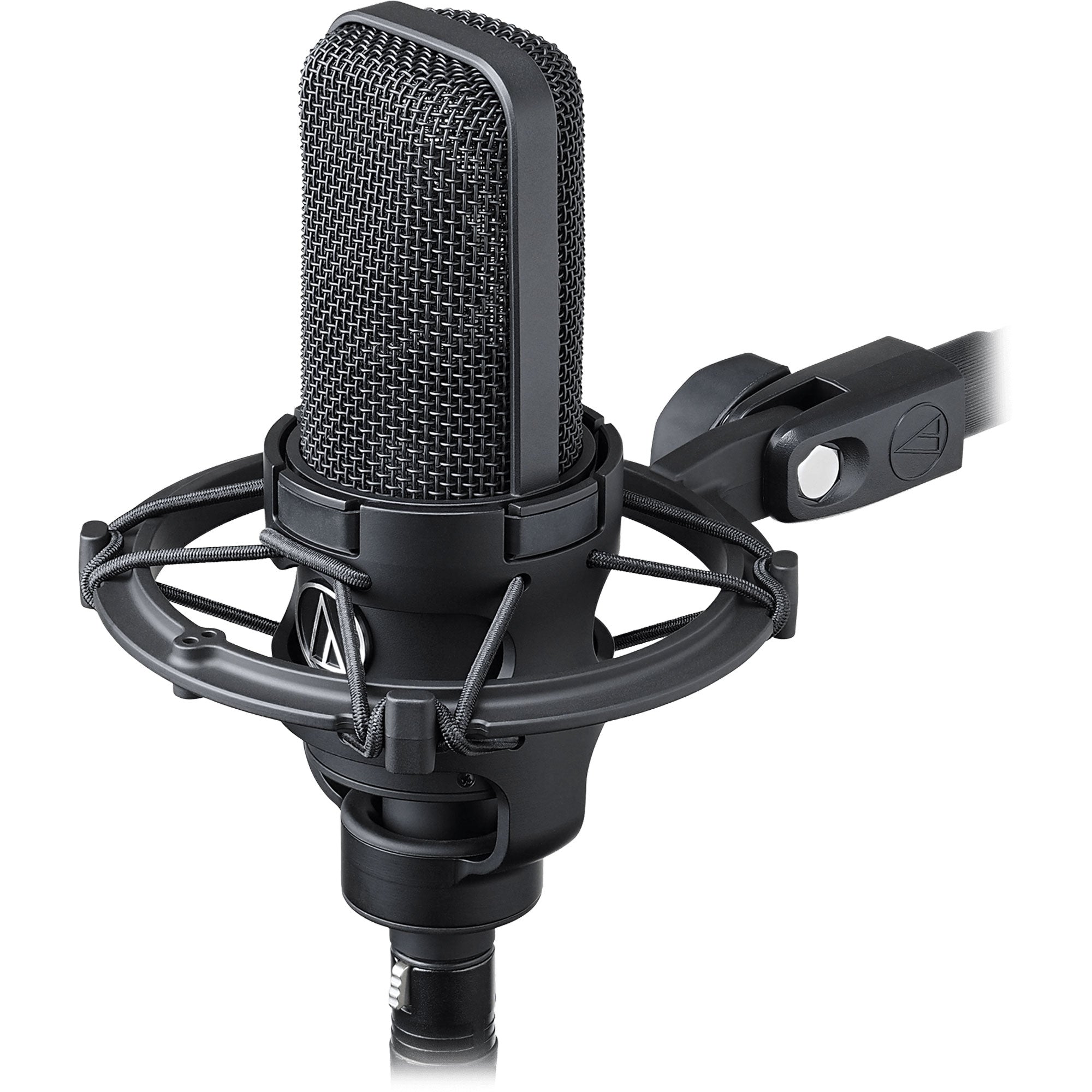

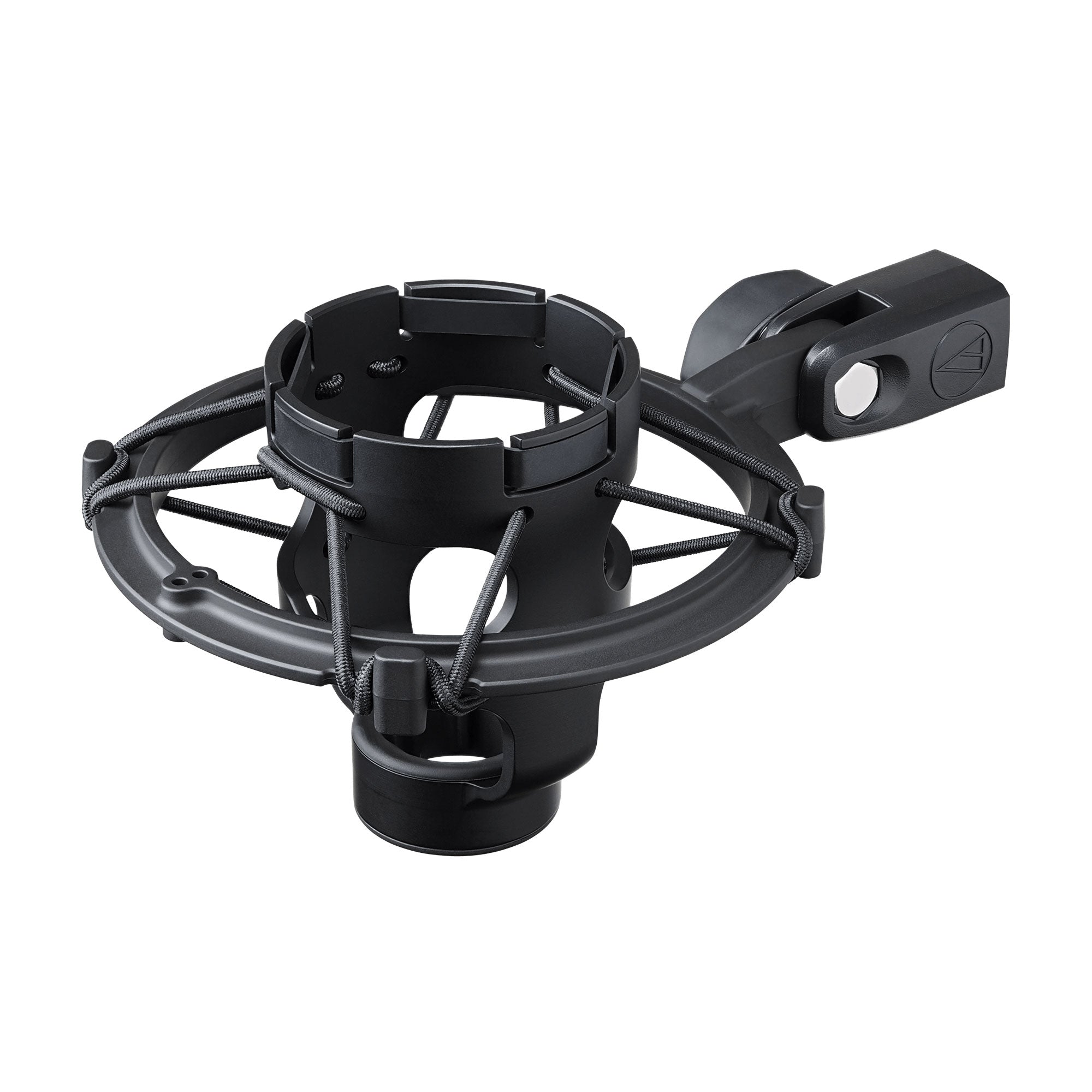

• Custom shock mount provides superior isolation

• Switchable 80 Hz hi-pass filter and 10 dB pad


Specifications

• Microphones

• Element: Externally-polarized (DC bias) condenser

• Polar Pattern: Cardioid

• Frequency Response: 20-20,000 Hz

• Low Frequency Roll Off: 80 Hz, 12 dB/octave

• Open Circuit Sensitivity: -32 dB (25.1 mV) re 1V at 1 Pa

• Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)

• Noise: 12 dB SPL

• Dynamic Range: 133 dB, 1 kHz at Max SPL

• Signal-to-Noise Ratio: 82 dB, 1 kHz at 1 Pa

• Phantom Power Requirements: 48V DC, 4.2 mA typical

• Switches: Flat, roll-off; 10 dB pad (nominal)

• Weight: 12.7 oz (360 g)

• Dimensions: 6.69" (170.0 mm) long, 2.10" (53.4 mm) maximum body diameter

• Output Connector: Integral 3-pin XLRM-type

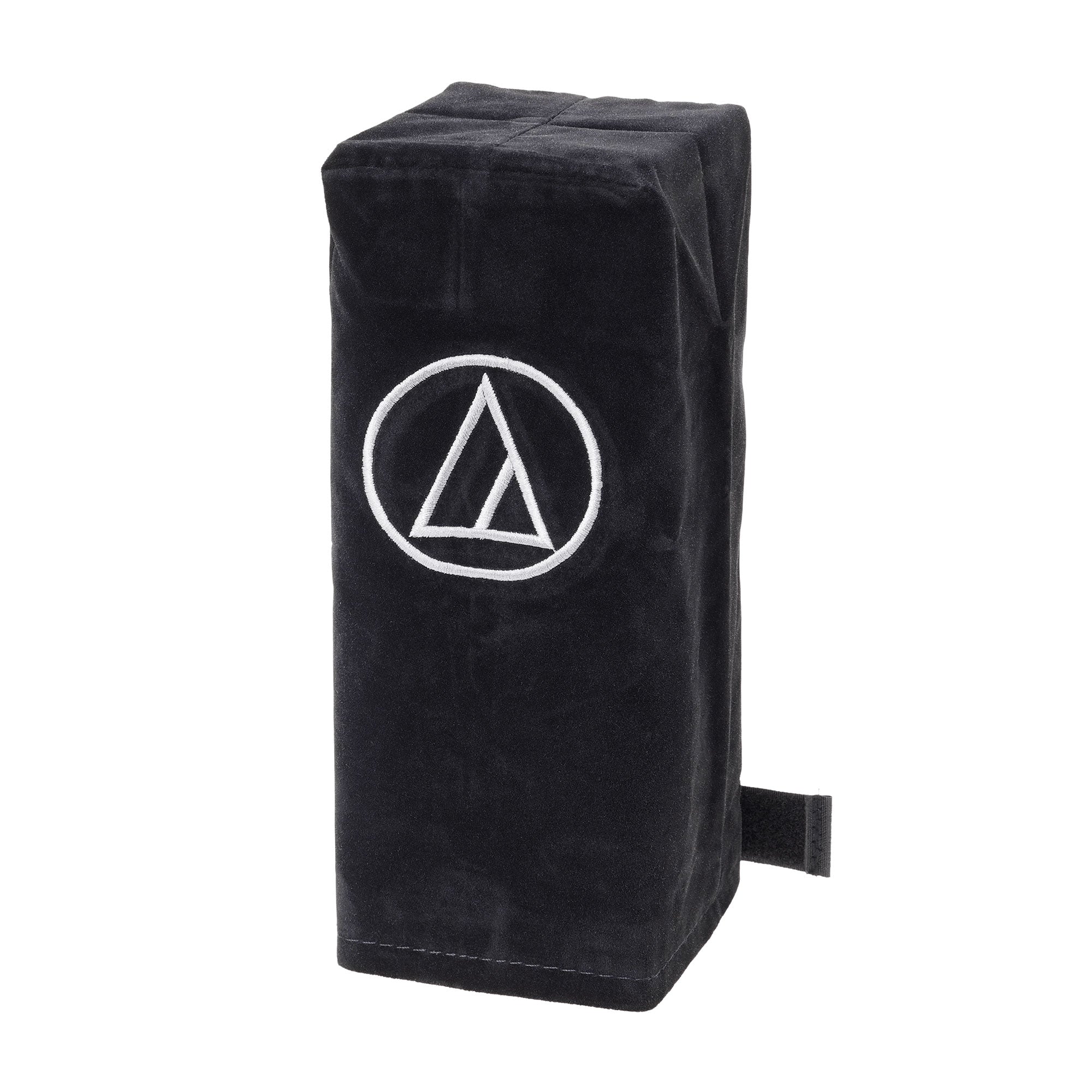

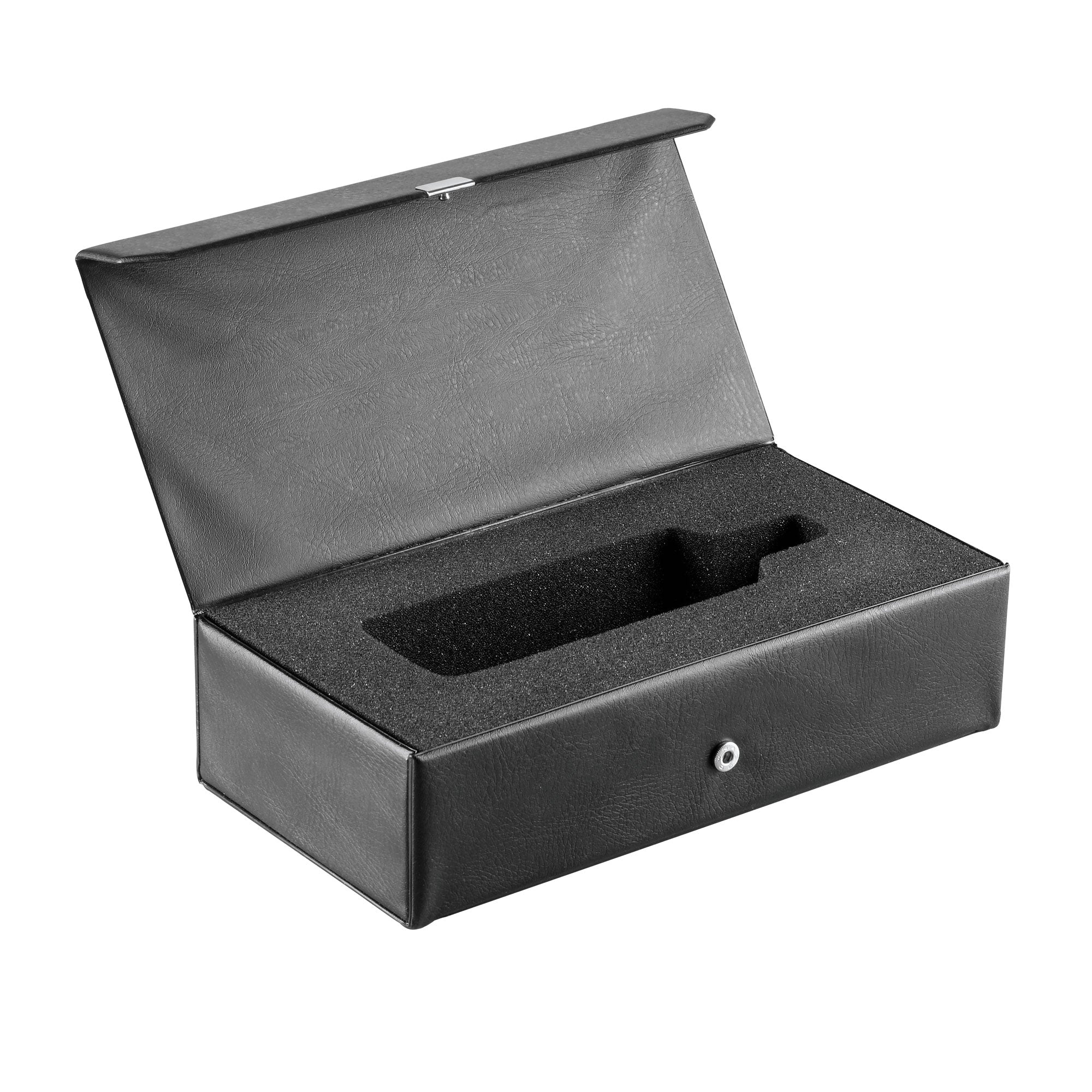

• Accessories Included: AT8449a shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case

• Audio-Technica Case Style: R1
