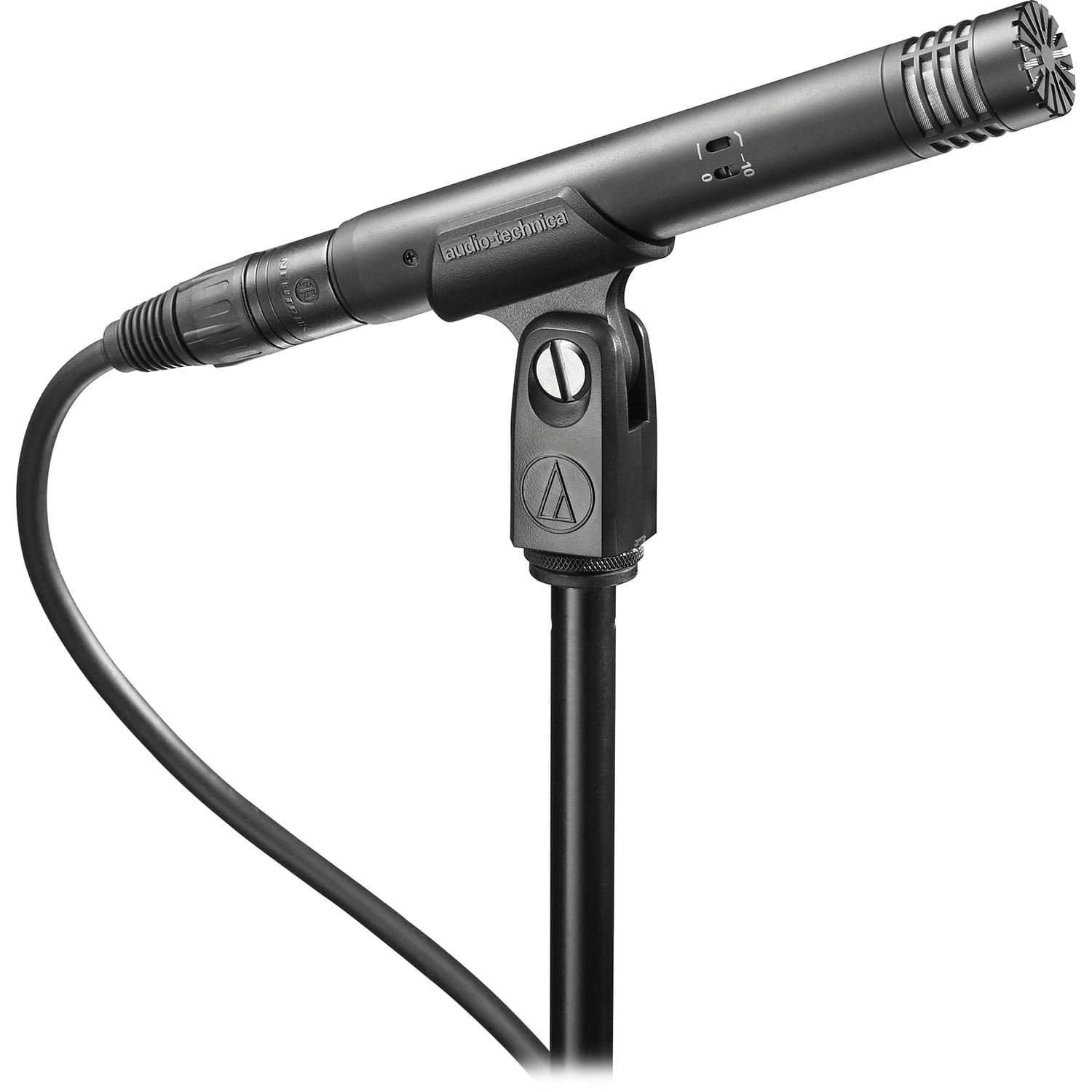

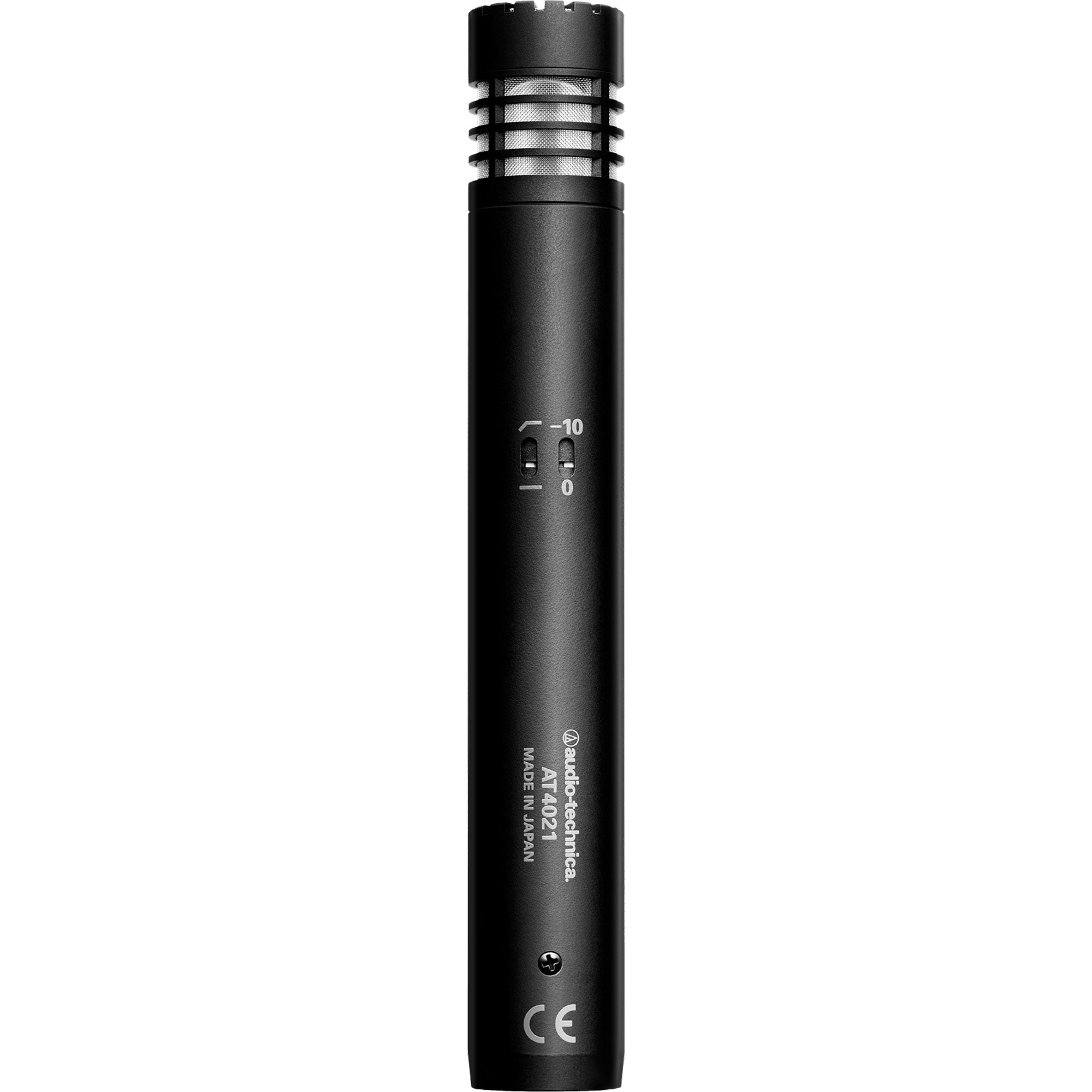

Audio-Technica AT4021 Cardioid Condenser Microphone

Cardioid Studio Condenser Microphone

Ideal for critical studio and live applications, the low-profile AT4021 offers a flat, extended frequency response, high maximum SPL and wide dynamic range. Its low self-noise is perfectly suited for the most sophisticated recording equipment. Its low-mass diaphragm improves transient response, increases response bandwidth and reduces handling and mechanical noise transfer. The microphone offers outstanding reproduction of low-frequency sounds.

Features:

• Outstanding performance and rugged construction
• High SPL handling and wide dynamic range
• Flat, extended frequency response
• Switchable 80 Hz hi-pass filter and 10 dB pad
• High front-to-back rejection ratio-cardioid polar pattern improves isolation of desired sound source
• Low self noise perfectly suited for digital recording equipment
• Exceptional reproduction of low frequency sounds
• Low-mass element for superb transient response

Specifications:

• ELEMENT: Fixed-charge back plate, permanently polarized condenser
• POLAR PATTERN: Cardioid
• FREQUENCY RESPONSE: 20-20,000 Hz
• LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
• OPEN CIRCUIT SENSITIVITY: -34 dB (19.9 mV) re 1V at 1 Pa
• IMPEDANCE: 250 ohms
• MAXIMUM INPUT SOUND LEVEL: 146 dB SPL, 1 kHz at 1% T.H.D.; 156 dB SPL, with 10 dB pad (nominal)
• NOISE: 14 dB SPL
• DYNAMIC RANGE (TYPICAL): 132 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 80 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 48V DC, 3.0 mA typical
• SWITCHES: Flat, roll-off; 10 dB pad
• WEIGHT: 119 g (4.2 oz)
• DIMENSIONS: 144.0 mm (5.67") long, 21.0 mm (0.83") maximum body diameter
• OUTPUT CONNECTOR: Integral 3-pin XLRM-type

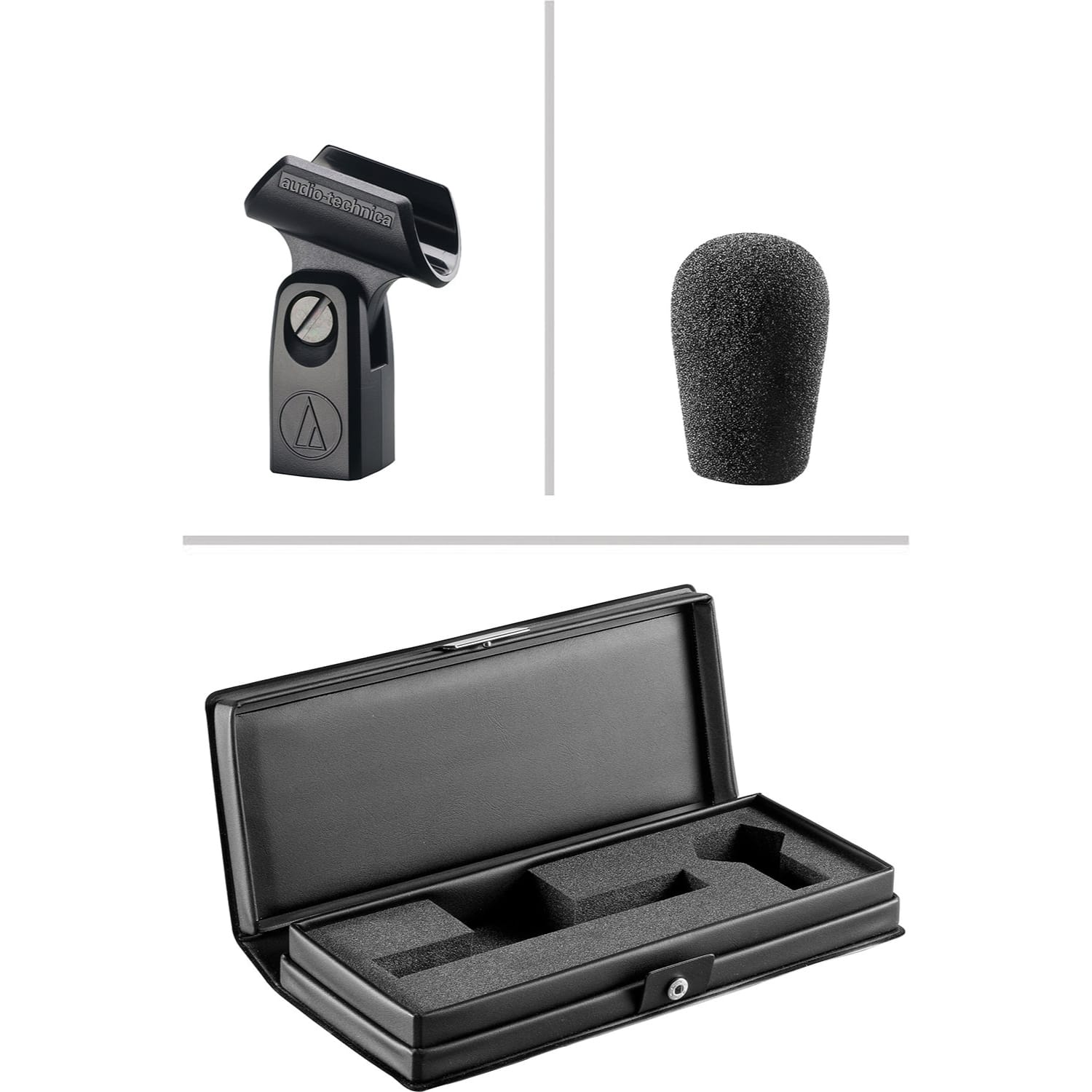

• ACCESSORIES FURNISHED: AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; protective carrying case
• AUDIO-TECHNICA CASE STYLE: S1
