Key Features
- Use Analog Gear with Dante Network
- 1 x XLR, Line-level Analog Output
- Plug-and-Play Operation
- Compact and Built for the Road
- Audio Resolution up to 24-Bit / 96 kHz
- Configurable Gain and Attenuation
- Compatible with Dante Domain Manager
- Dante Audio Over IP & AES67 RTP Formats
Description

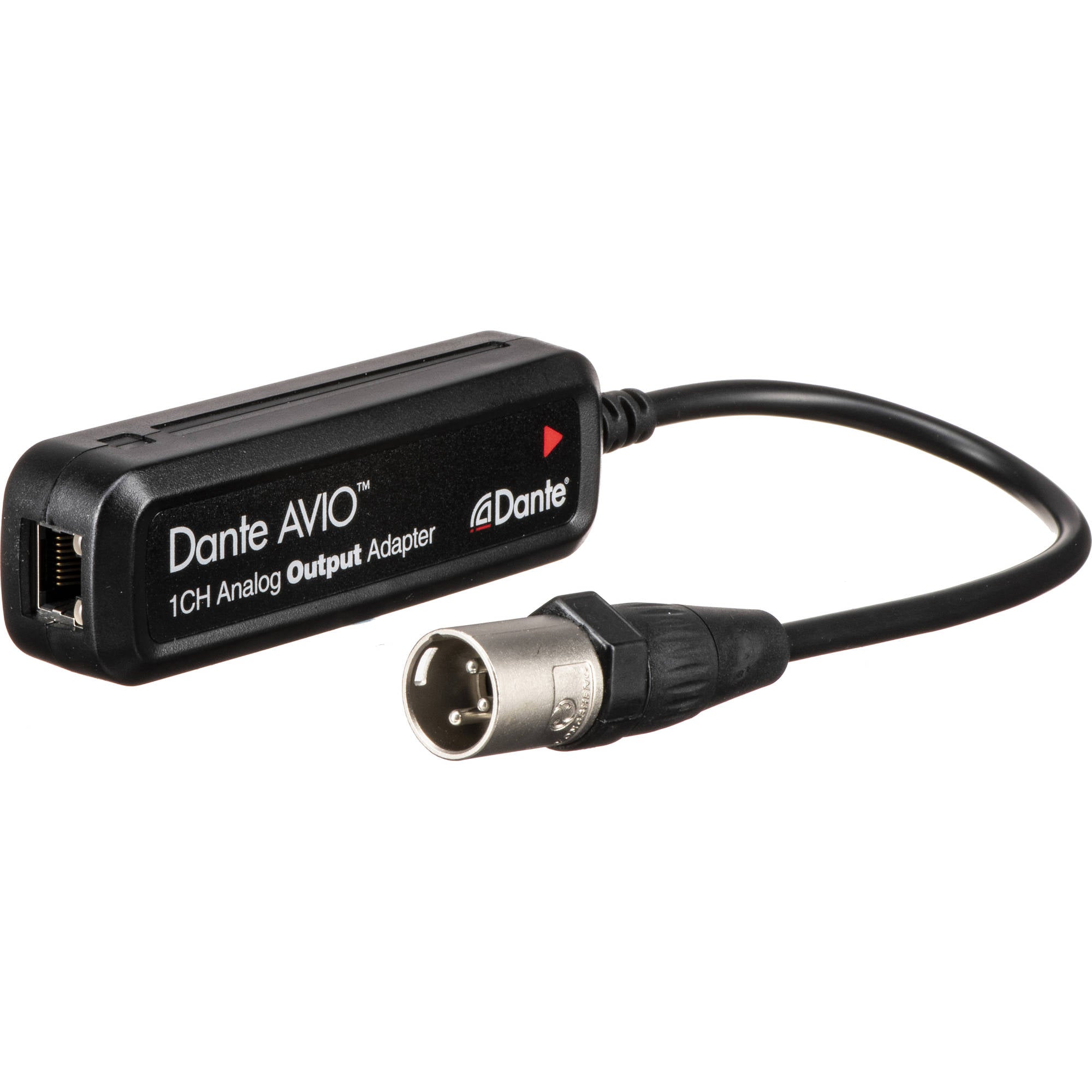

1-Channel Dante Analog Output Adapter
The Audinate Dante AVIO 1-Channel Analog Output Adapter allows you to use the analog gear you already own with your Dante audio network. It provides audio engineers with a cost-effective solution for adapting analog power amplifiers, powered speakers, or analog compressors and equalizers, delivering the interoperability, performance, and scalability of Dante network connectivity.
Compact and built for the road, the AVIO is automatically discovered by the network and is ready to use when connected. It features one balanced, line-level output equipped with an XLR connector and delivers high-quality audio at up to 24-bit/96 kHz with configurable gain and attenuation, low total harmonic distortion, and a 20 Hz to 20 kHz frequency response.
The AVIO supports Dante Audio over IP and AES67 RTP transport formats, and is compatible with Dante Domain Manager (DDM).
Note:
Requires the use of a network switch with POE (Power-over-Ethernet) capabilities or the use of an 802.3af-compliant PoE injector device (both available separately).
Features:
- Cost-effective solution for adapting analog gear to your Dante network
- Plug-and-play operation
- Balanced, line-level single-channel analog output adapter
- Compact and built for the road with sonically welded polycarbonate enclosure
- Sample rates up to 96 kHz
- Wide dynamic range
- High signal-to-noise ratio
- Low total harmonic distortion
- Configurable gain and attenuation
- Dante Audio over IP and AES67 RTP transport formats
- Power over Ethernet (PoE) support
- Compatible with Dante Domain Manager (DDM)
Specifications:
- Maximum Signal Level:
+18 dBu, +4 dBu, 0 dBu (Balanced)
0 dBV, -10 dBV (Balanced) - Frequency Response: 20 Hz to 20 kHz (±0.5 dB)
- Impedance:
150 Ohms (Balanced)
75 Ohms (Unbalanced) - Dynamic Range: >100 dB
- Signal-to-Noise Ratio: >100 dB
- Total Harmonic Distortion: <0.01% at +4 dBu
- Connectors:
RJ45
1 x XLR-M - Power: Class 1 802.3af PoE
- Sample Rates: 44.1, 48, 96 kHz
- Bit Depth: 24-bit
- Network Transport Protocol:
Dante Audio over IP
AES67 RTP - Construction: Sonically Welded Polycarbonate Enclosure
- Manufacturer: Audinate
- MPN: ADP-DAO-AU-0X1
- Model Number: ADP-DAO-AU-0X1
- UPC: 9353345000039
