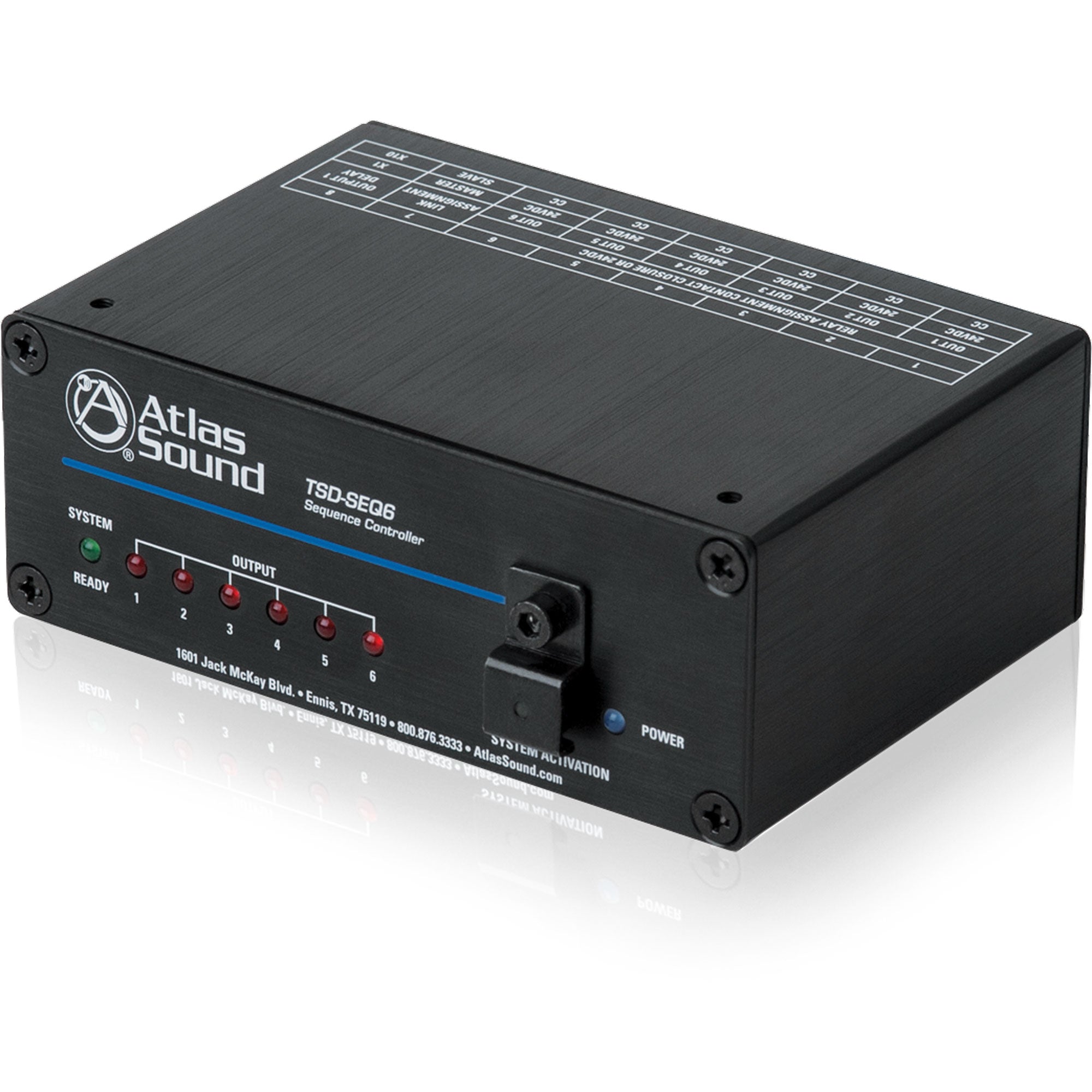

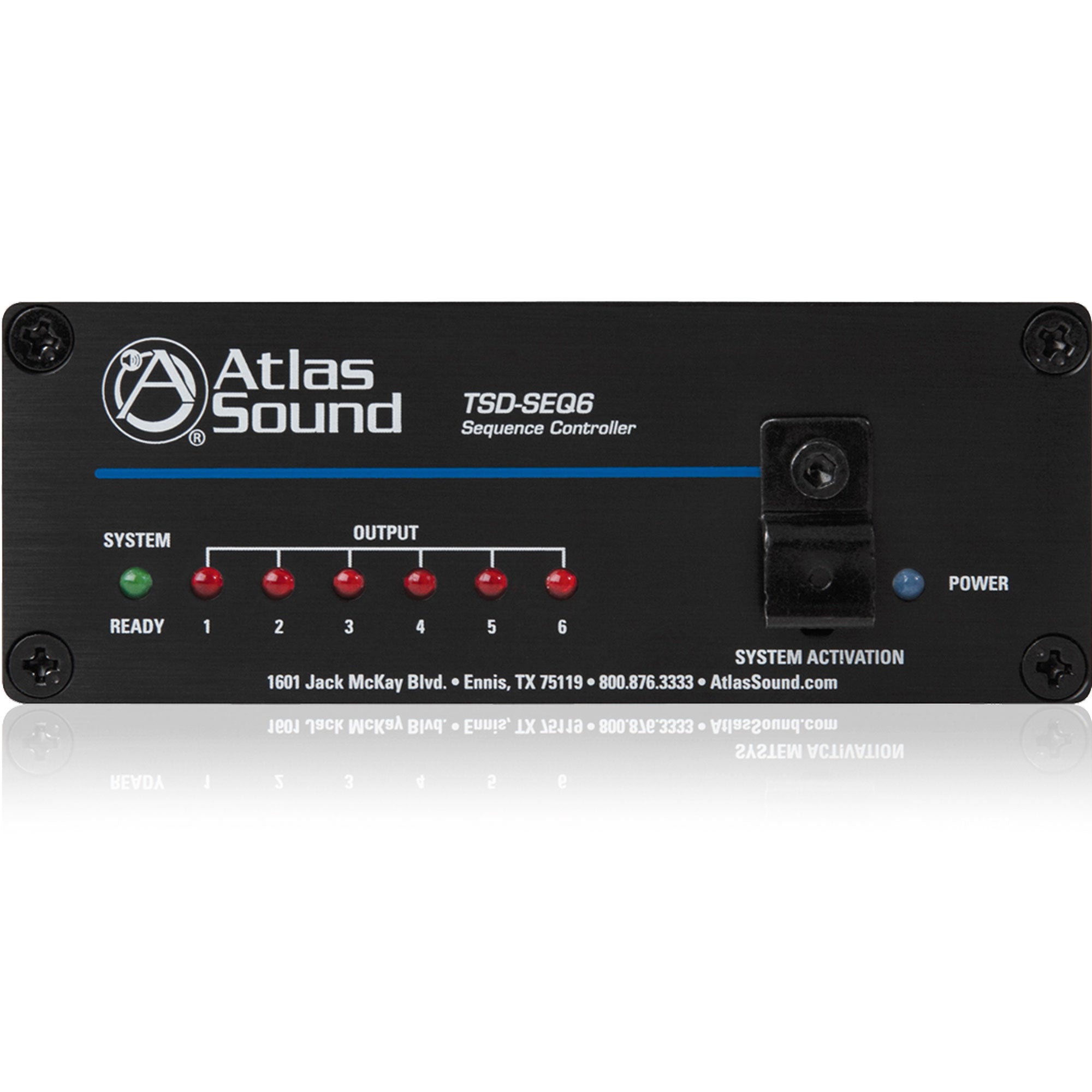

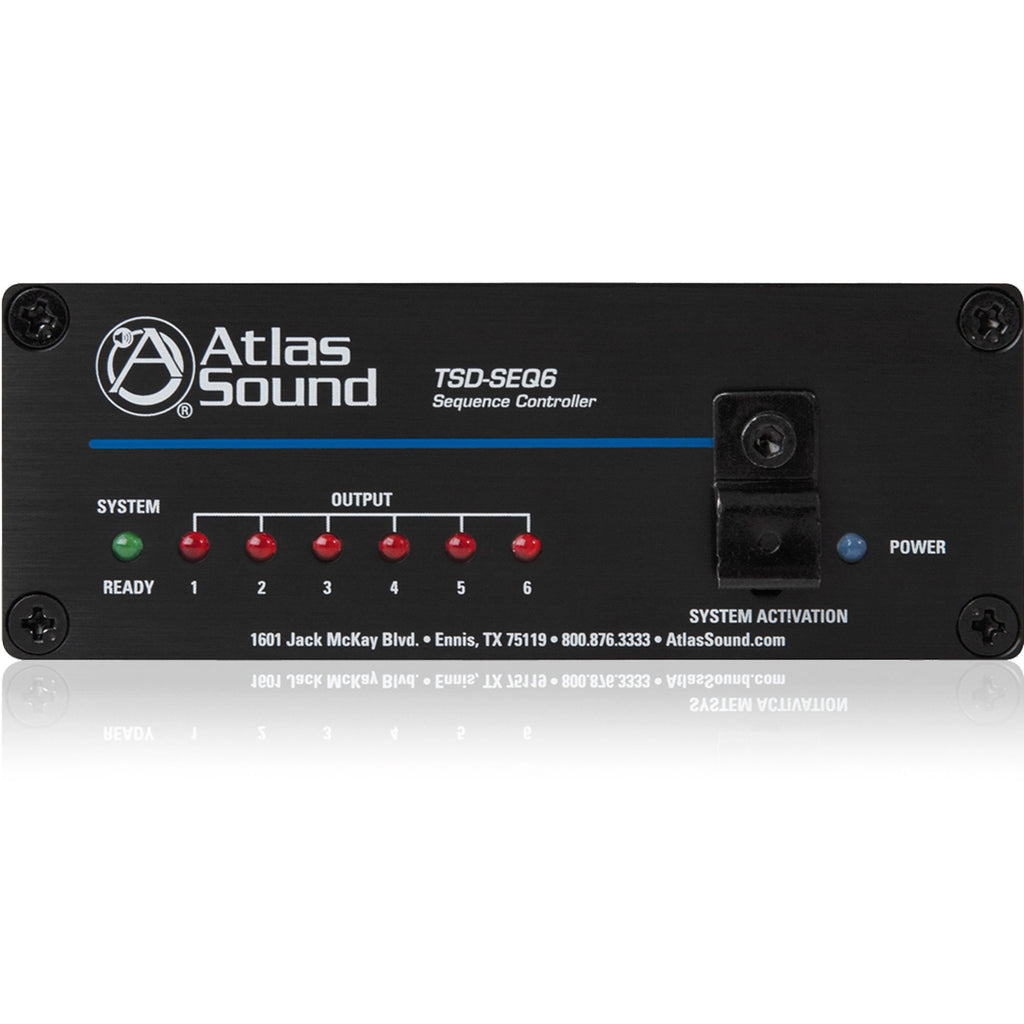

AtlasIED TSD-SEQ6 AC Sequence Controller

Sequence Controller

The Atlas Sound TSD-SEQ6 Sequencer Controller features 6 outputs that are configurable individually to be either a 24VDC output or Hard Switch Contact Closure (CC). There are two separate output sequence time delay trimmers ranging from 1 second to 6 minutes. Activation can be done via the front panel or remotely via Hard Switch CC, Momentary Switch or DC Voltage. The TSD-SEQ6 also incorporates an Emergency Power Down (EPD) port for local fire codes. You can link two TSD-SEQ6 units together giving you 12 sequenced outputs.

Features:

• 6 Sequenced Outputs
• Assignable 24VDC or Hard Switch Contact Closure (CC) per Output
• Sequence 1 is Adjustable: Delay Time 1 Second to 10 Minutes
• Sequences 2 - 6 are Adjustable: Delay Time 1 Second to 1 Minute
• Remote Activation via 5-24VDC, Momentary Contacts, Hard Switch Contacts
• Status Indicator for Each Output
• Emergency Power Down "EPD" Port
• Link Out for Two TSD-SEQ6 Controllers
• Voltage Output for Remote LED Status Display

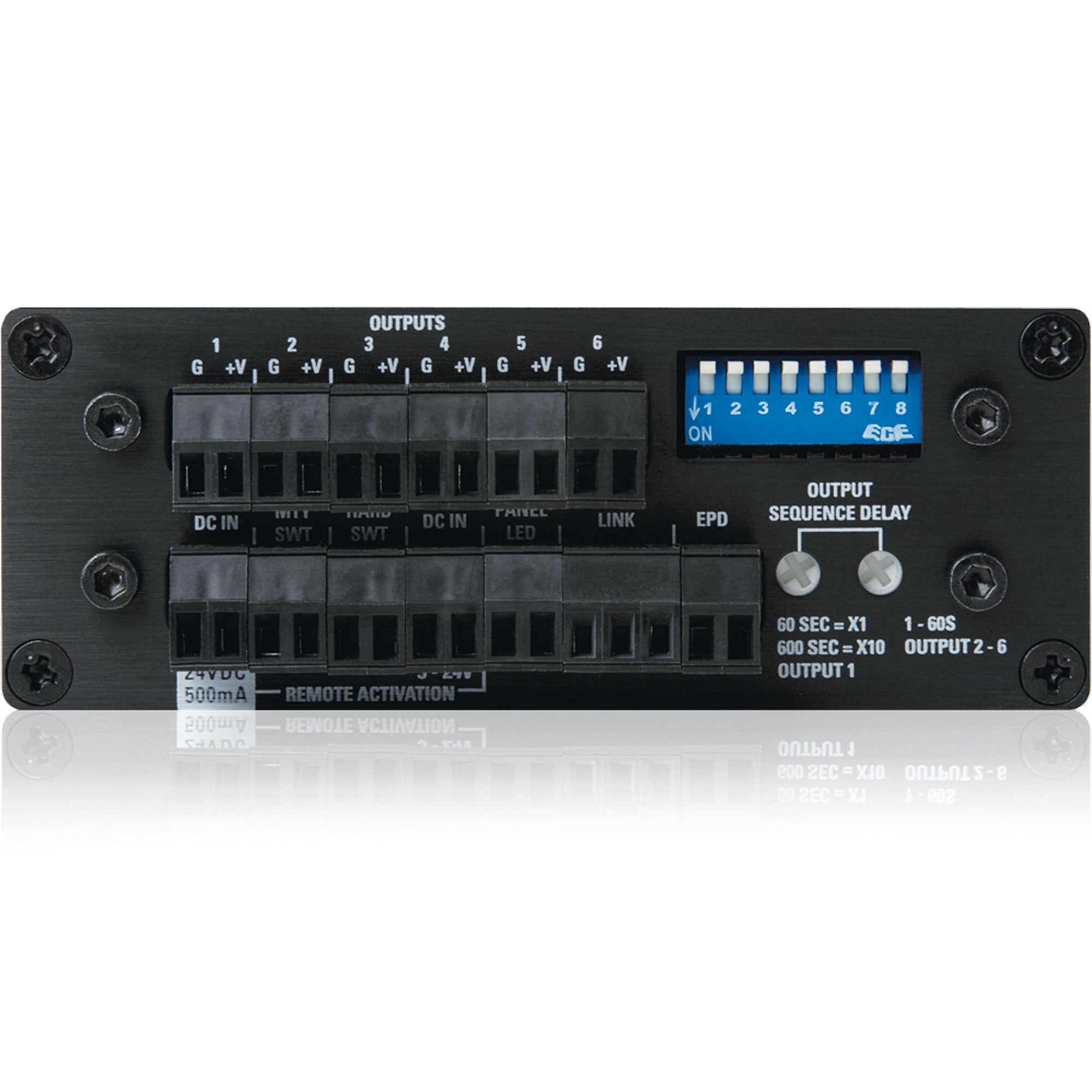

• Separate Wiring Port for Each I/O
• Removable Phoenix Style I/O Connectors

Specifications:

• Chassis Construction: Black Aluminum
• Sequence Status Indicator: Green, Qty 1
• Output Status Indicator: Red, Qty 6
• Voltage: 24VDC, 500mA
• Power Consumption Current: 100mA
• Power Consumption VA Watts: 2.4W
• Height: 1.5" (39mm)
• Width: 4" (101mm)
• Depth: 2.75" (70mm)
• Weight: 6oz. (.165kg)
