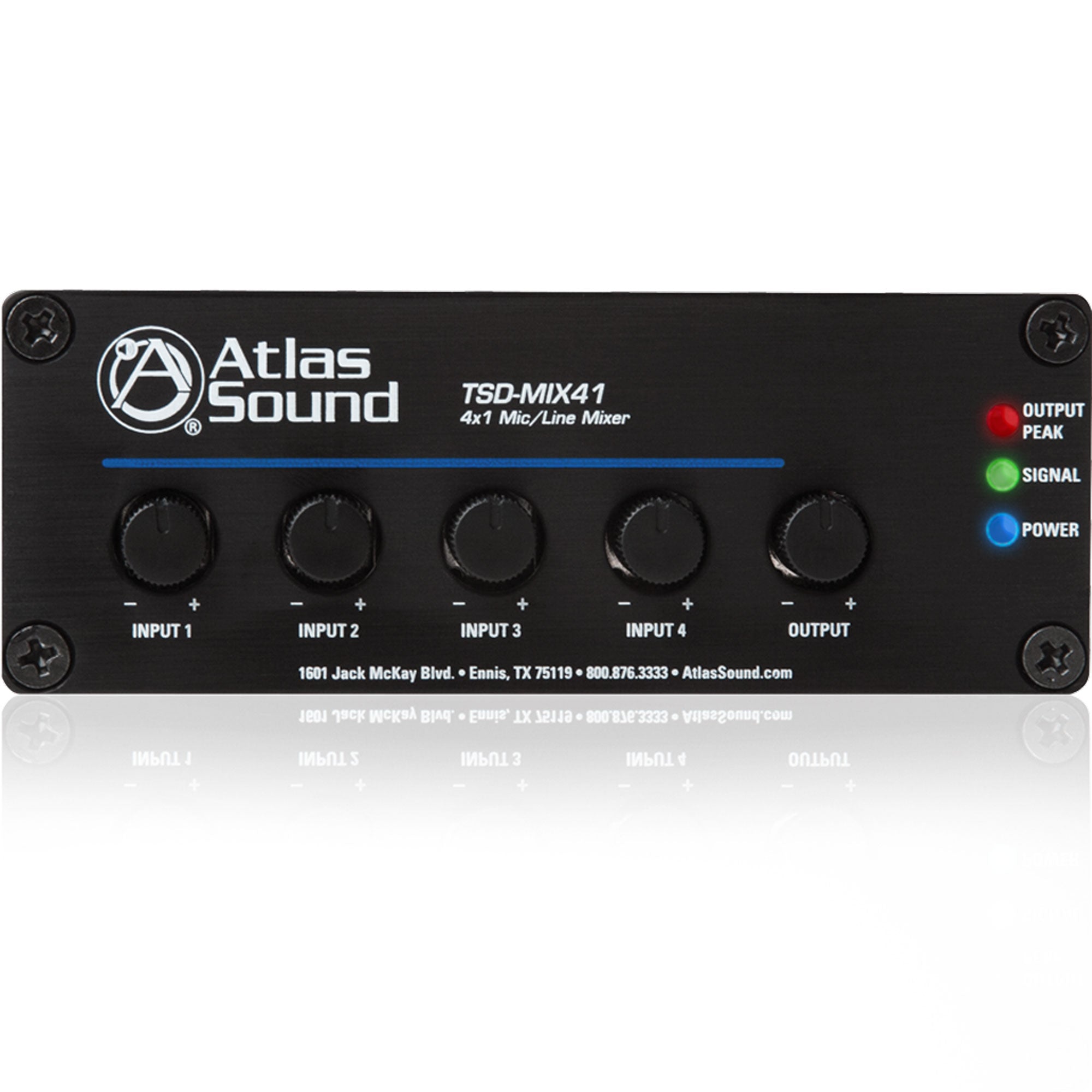

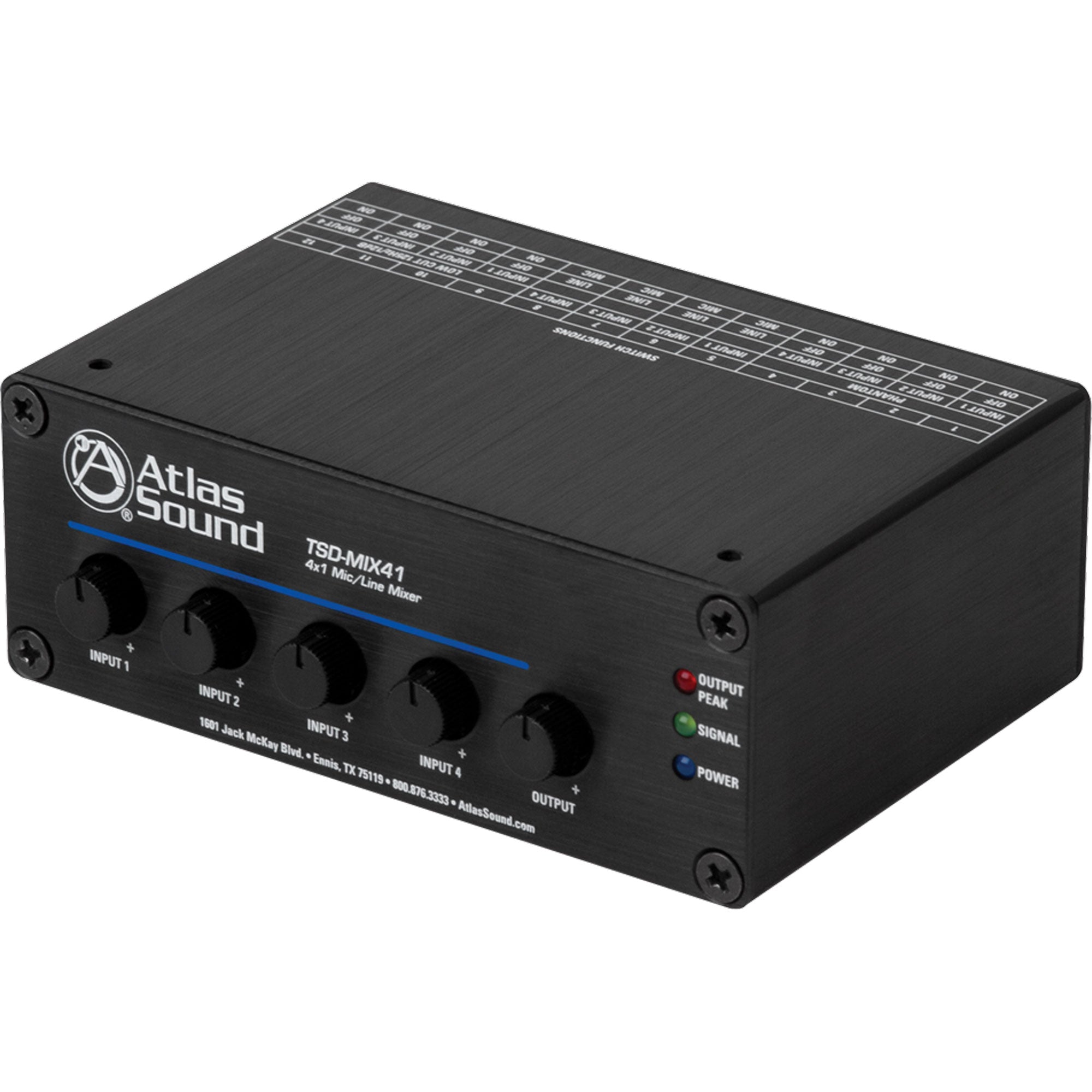

AtlasIED TSD-MIX41 4 x 1 Mic/Line Mixer

4 x 1 Mic/Line Mixer

The TSD-MIX41 4x1 mic/line mixer is ideal for applications where multiple mic or line sources need to be sub mixed or summed. In house of worship applications the TSD-MIX41 is especially useful for combining similar sources such as choir microphones to a single mixer channel. The unit also works well as a stand-alone mic/line mixer that can be easily interfaced with Atlas Sound amplifiers. Other applications include restaurants, conference rooms, and schools.

Each input is mic/line switchable with phantom power provided for condenser microphones. The high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter @ 125Hz also is available on each input to minimize bass rumble and low frequency feedback.

Features:

• Four (4) Balanced Mic/Line Inputs
• Four (4) Professional Grade Microphone Preamps with Switchable
• 24V Phantom Power
• Up to 50dB Mic Gain Per Input
• 12dB/Octave Low Cut Filter @ 125Hz
• Balanced Line Output
• Input Peak & Signal Indicator LED's
• Variable Output Limiter
• High Gain Output for Driving Long Balanced Lines
• Separate Ground Connections

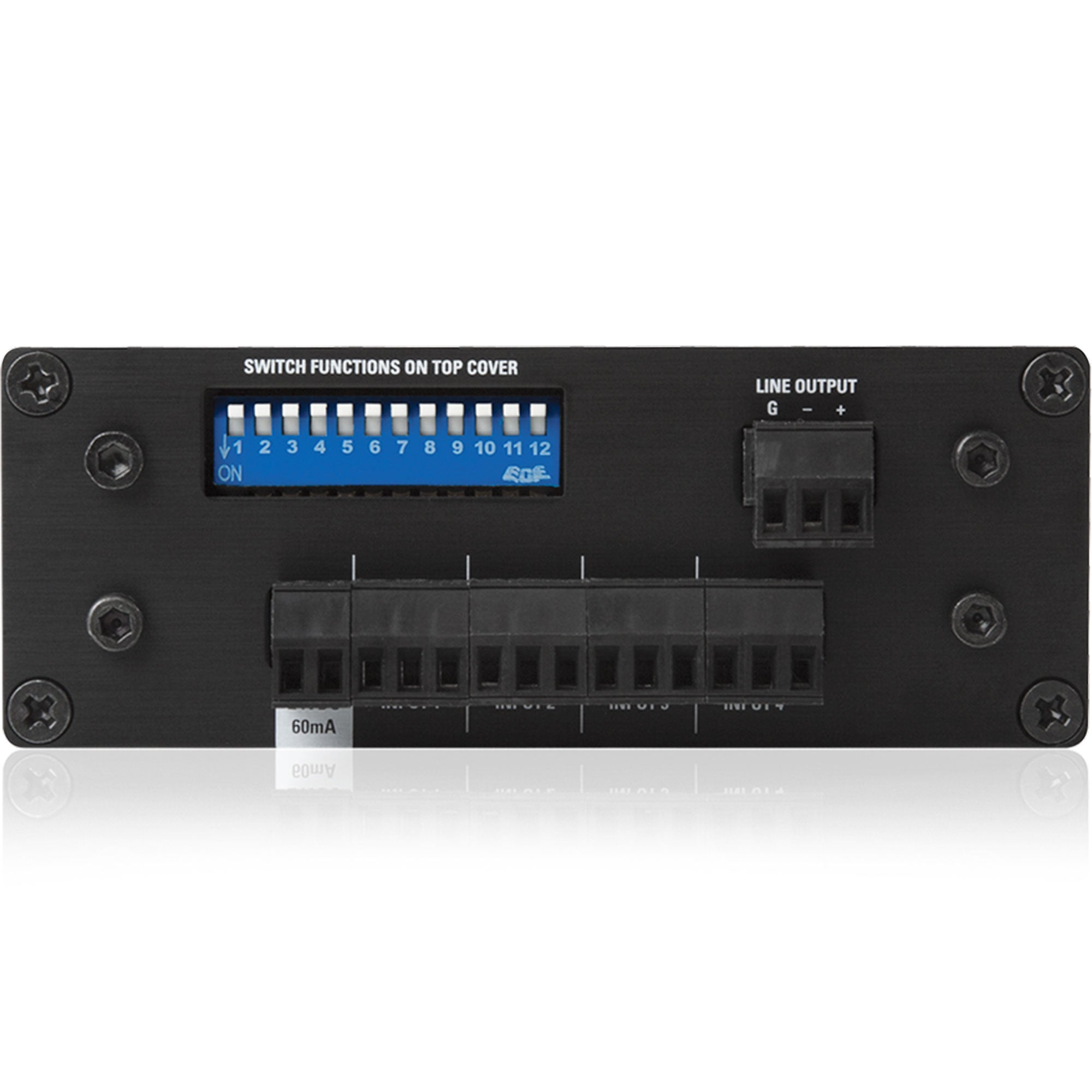

• Removable Phoenix Style I/O Connectors
• Security Covers Included for All Front Panel Controls
• Meets Energy Star Standards

Specifications:

• Input impedance: 1.2KΩ Balanced, 600Ω Unbalanced
• Phantom Power: 24VDC Defeatable
• Low Cut Filter: 125Hz/12dB Defeatable
• Line Input Level: 1V (0dBV) Balanced 2V (+6dBV) Balanced Output
• Mic Input Level: 46dB Gain 10mV (-40dBV) Balanced = 2V (+6dbV) Balanced Output
• Output impedance: 300Ω Balanced, 150Ω Unbalanced
• Line Output Level: 1V (0dBV) In = 2V (+6dBV)
• Frequency Response: 20Hz - 20kHz (+/-1dB)
• THD: .06% & 1kHz
• Signal to Noise Ratio Line to Line: 85dBV
• Signal to Noise Ratio Mic to Line: 78dBV
• 24VDC Power Requirements: 60mA
• Dimensions
• Height: 1.5" (3.81 cm)
• Width: 4" (10.16 cm)
• Depth: 2.5" (6.35 cm)
• Weight: 6oz., .165kg
