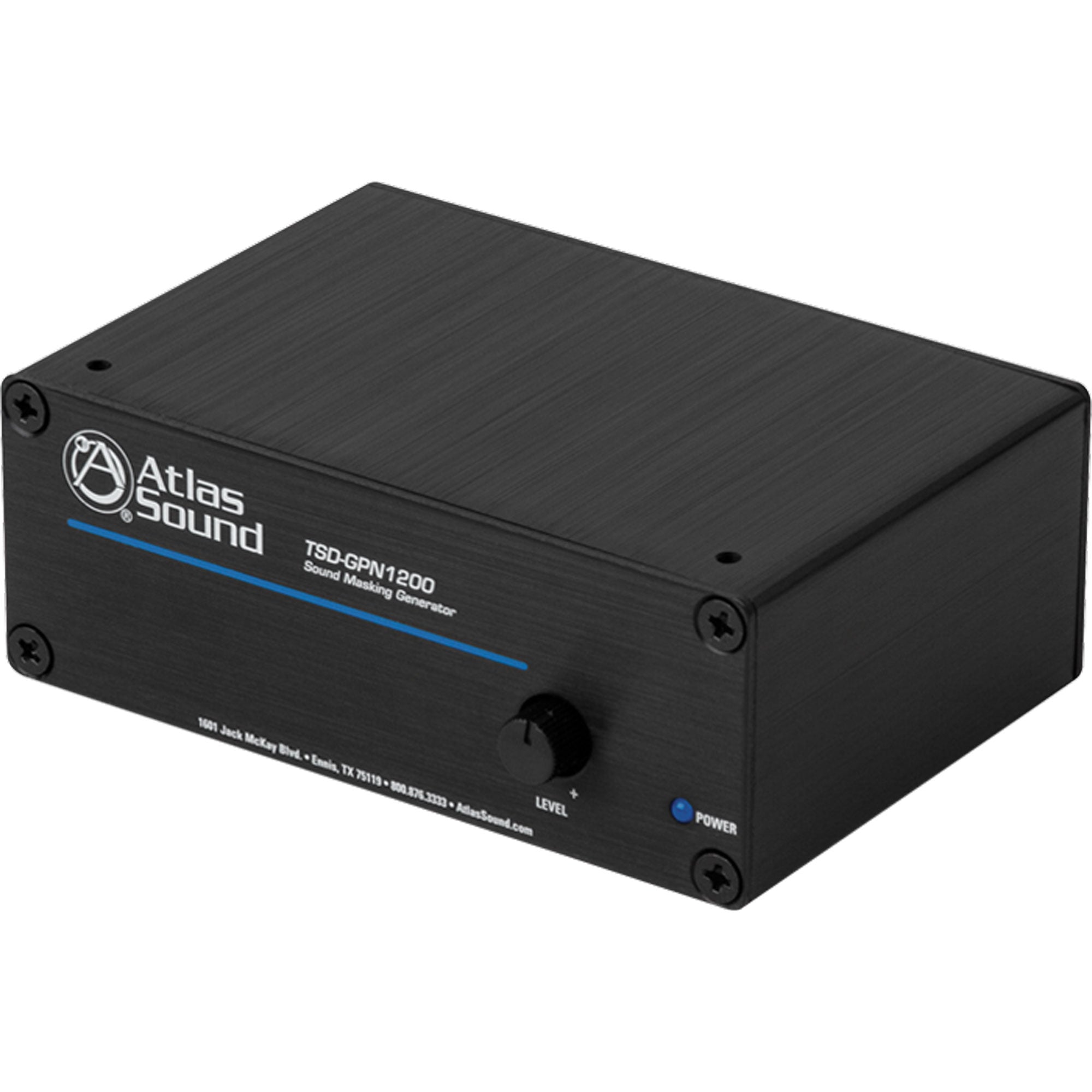

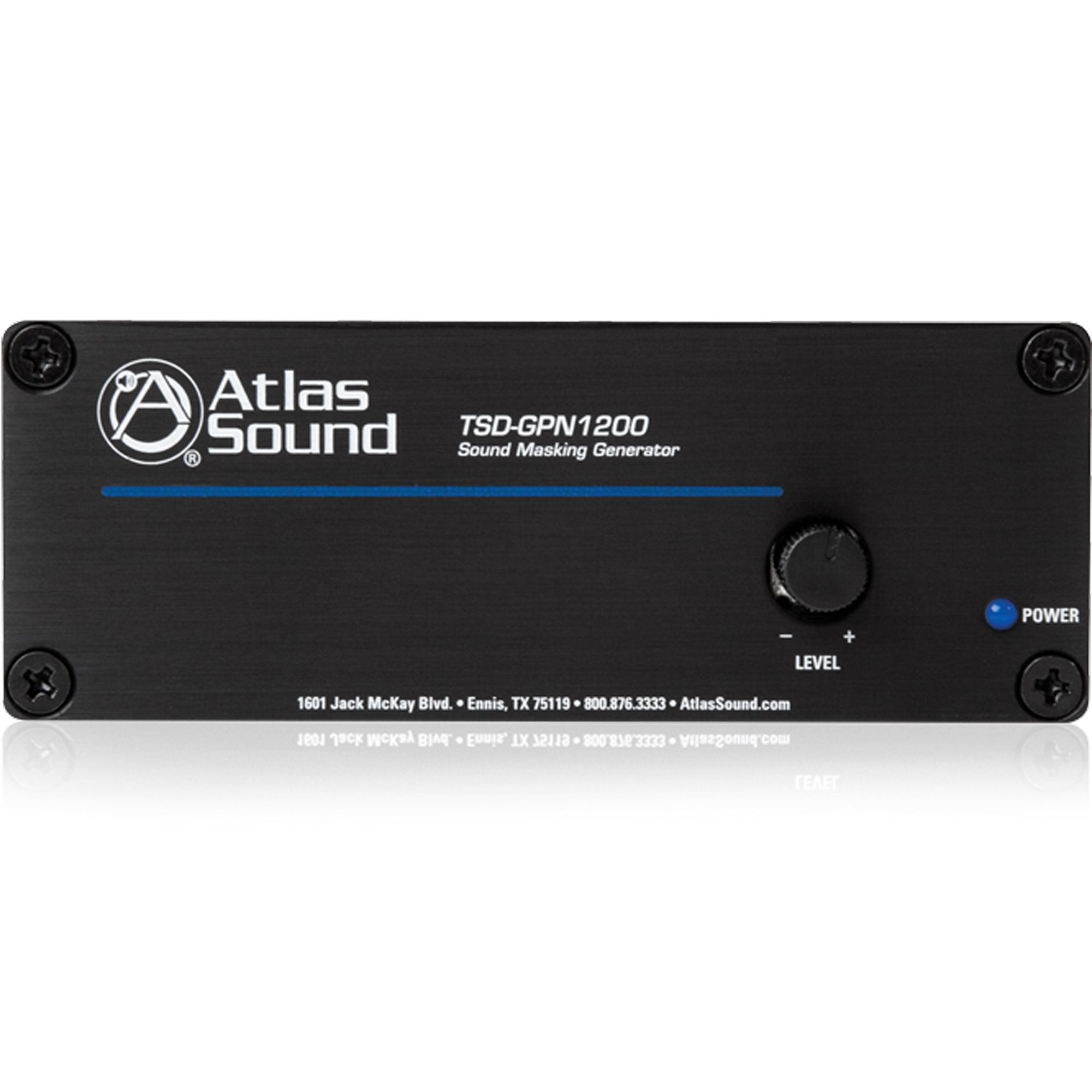

AtlasIED TSD-GPN1200 Sound Masking Generator

Sound Masking Generator

The TSD-GPN1200 sound masking generator is a great solution for basic masking systems. The analog topology design eliminates repeating cycles commonly found in other manufactures low cost digital designs. The TSD-GPN1200 allows selection between pink or white noise sources and incorporates a variable balanced output to match any amplifier input requirements.

Additionally, a 4W, output is provided to power up to six masking loudspeakers tapped at .5W each. A variable hi-cut filter with operating range between 1kHz and8kHz at a slope of 6dB per octave supports equalization requirements for Sound Masking systems. Both outputs may be used simultaneously allowing large zones to be addressed with external equalization and amplification while a smaller zone is powered by the internal amplifier with spectrum control provided by the hi-cut filter.

Features:

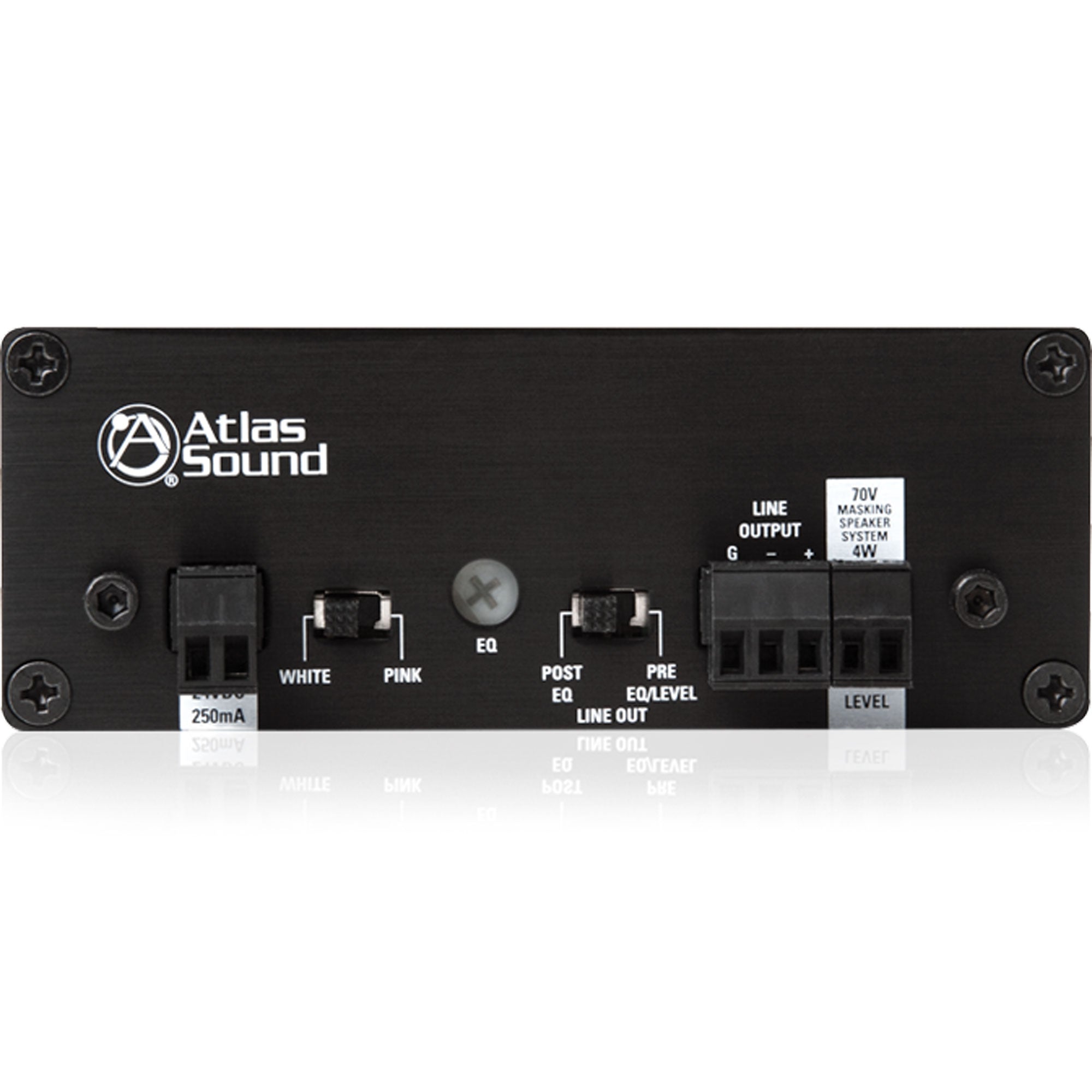

• Balanced Line Output Plus 4W, 70.7V Output
• Adjustable Gain and Hi-Cut Filter
• EQ & Gain Bypass for Line Output
• Selectable Pink or White Noise Source
• Stand Alone or Rack Mountable
• Security Covers Included for All Rear Panel Controls
• Meets Energy Star Standards
• Compact Chassis Design

Specifications:

• DC Voltage input: 1A-3A, 24V DC, 3A Max
• DC Voltage Output Fixed: 24V DC, Current Output Related to Input Power Supply and Load
• DC Voltage Output Fixed USB: 5V DC, 500mA Each Power Supply and Load
• DC Voltage Variable: Qty 2, Ports 1 Adjustable Voltage, Variable DC Output 5V - 24VDC, 500mA Each
• Dimensions
• Height: 1.5" (3.81 cm)
• Width: 4" (10.16 cm)
• Depth: 2.5" (6.35 cm)
• Weight: 6oz., .165kg
