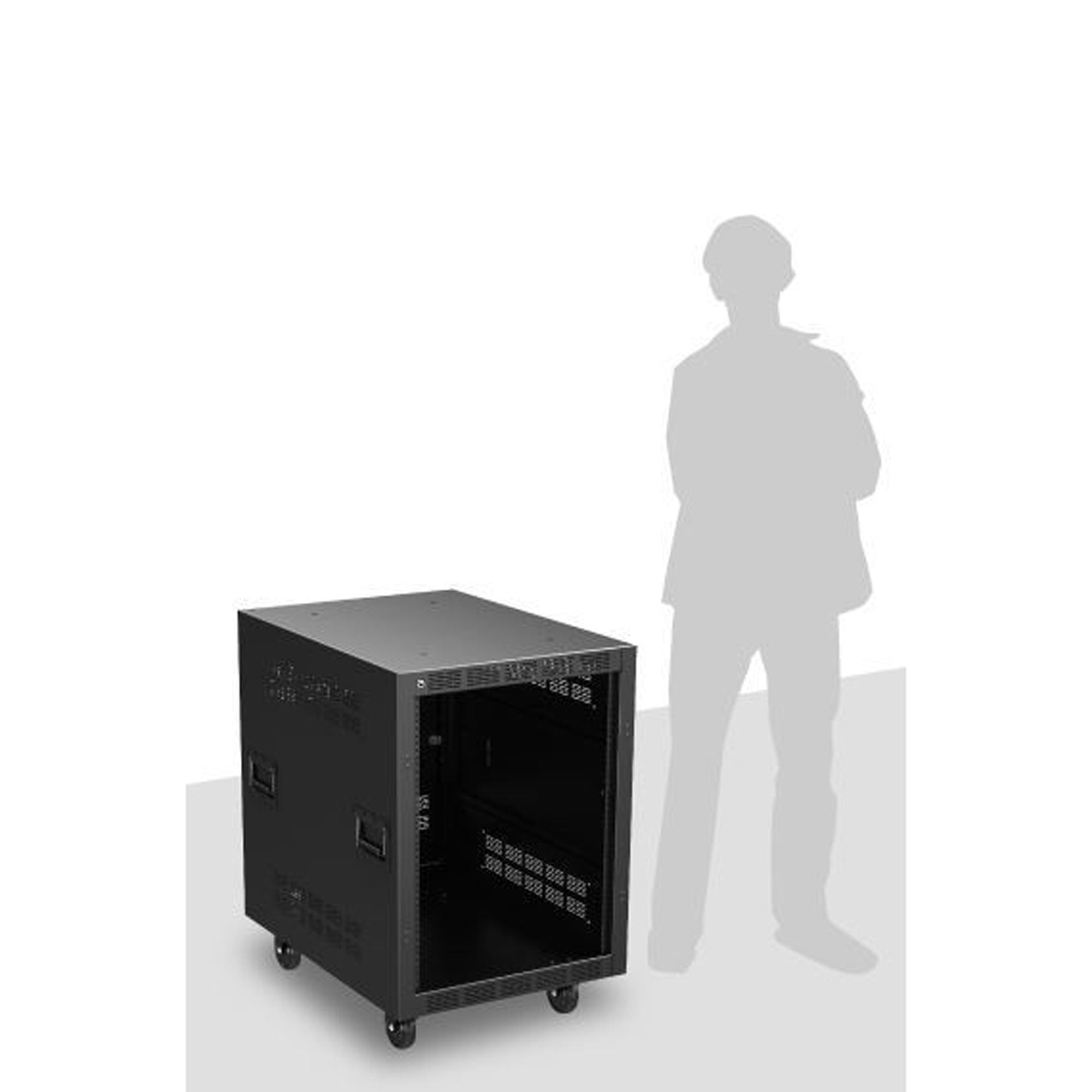

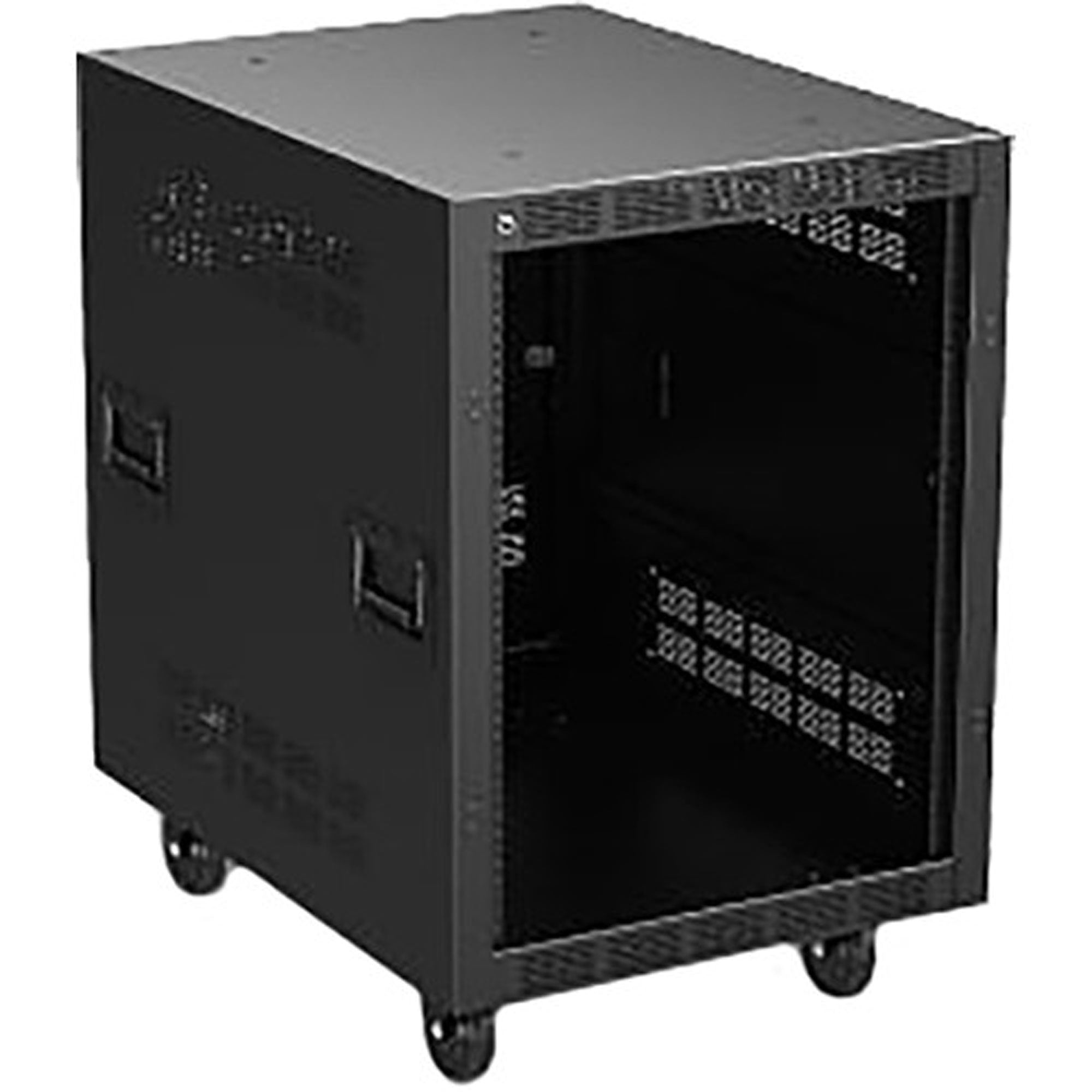

AtlasIED RX14-25 Mobile Equipment Rack (14U, 25" Deep)

Mobile Equipment Rack with Casters and Side Handles - 14 Space, 25-1/2" Deep, NO Front Door

The RX14-25 mobile cabinet is ruggedly constructed of 16-gauge CRS and includes heavy-duty casters. Equipped with a front pair of 11-gauge, CRS adjustable mounting rails tapped 10-32 on standard E.I.A. 5/8"- 5/8"-1/2" spacing.

Optional RR14 rear mounting rails are available for additional support. Front-to-rear mounting rail supports have slotted cutouts to easily adjust rail depth and to provide open raceways for containing vertically run wire and cable.

Cabinet is 25 1/2" deep and has a vertical panel space height of 24 5/8". It features one pair of recessed, hinged, and rubber-padded steel grips on each side (four total) for transport convenience.

Easy wiring access is provided through three wire isolation holes (two, 1 1/2" dia., and one oblong 1 1/2" x 3") in the rear base flange.

The units' four, oversized, heavy-duty casters, two of which are locking, ensure smooth mobility, and have a load capacity of 175 lb. each - 700 lb. total weight capacity.

Shown with optional front door: SFD14.

Cabinet is finished in #962 black epoxy.

Features:

• 16-Gauge CRS Frame Manufactured to E.I.A. Standards
• Four, 4" Heavy-Duty Casters (175 lb. cap./ea.)
• Includes 1 Pair Adjustable, 11-Gauge, Front-to-Rear Mounting Rails
• Mounting Rail Supports with Slotted Cut-Outs for Vertical Wire Management
• Perforated Front and Rear Top Flanges, Sides and Rear Door Provide Ventilation and Dissipation of Equipment-Generated Heat
• Optional Removable Front and Rear Doors (Right or Left-Hand Hinging) are Identically Keyed for Security and Convenience
• RR14 Optional Rear Mounting Rails Available
• Rubber-Padded Steel Grip "Road Handles" (2 Per Side)
• Standard Rack Includes Base, Top Panel, Side Panels, and Casters
• Three, Wire Isolation Holes Located on Bottom of Rear Panel for External Wire Access
• Welded Frame for Long-Lasting Durability

Specifications:

• RACK UNITS: 14
• HEIGHT: 33 9/16" (85.25 cm)
• WIDTH: 22 5/16" (56.68 cm)
• DEPTH: 25 1/2" (64.77 cm)
• USABLE DEPTH: 24" (60.96 cm)
