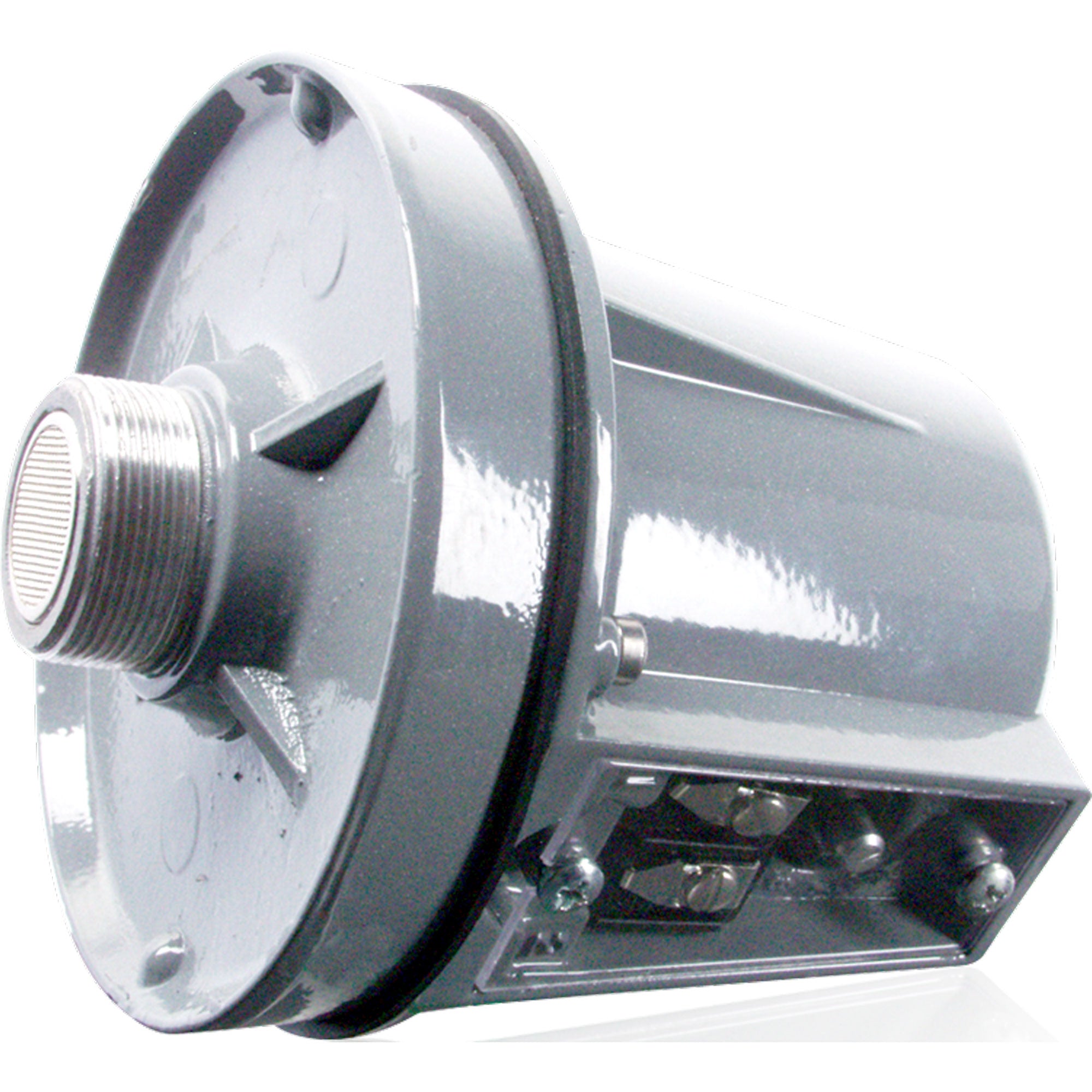

AtlasIED PD-30T 30W 70V Compression Driver for Large Format Horn Speakers

Compression Driver 30 Watt, 70.7V Transformer

Compression Driver 30 W, w/Xfmr.
The PD-30T is a fully environment-resistant compression driver for indoor or outdoor applications recommended for use in expansive and/or high-ambient sound-level areas.

The unit has a power rating of 30 watts, a 1.5" voice coil and a plane wave frequency response of 300 - 3,900 Hz (+5dB).

Transformer-equipped Model PD-30T incorporates the exclusive Atlas Sound Vari-Tap Control/Connect Center with a screwdriver selectable ohms/watts switch.

Features:

• 30-Watt Power Rating
• Environment-Resistant Construction for Indoor/Outdoor Use
• Extended Frequency Response Range for Optimum Intelligibility
• Outstanding Sound Reproduction and Power-Handling For Signaling, Music and Public Address Systems

• Depth: 4-1/2" (11.43 cm)
• Diameter: 4-1/2" (11.43 cm)
• Shipping Weight: 4.00 lbs (1.81 kgs)
• Frequency Response: 300 - 3,900 Hz
• Impedance: 70.7V
• Power Rating: 30W
• Sensitivity: 113.6 (avg) 300-3,900 Hz (+5dB)
