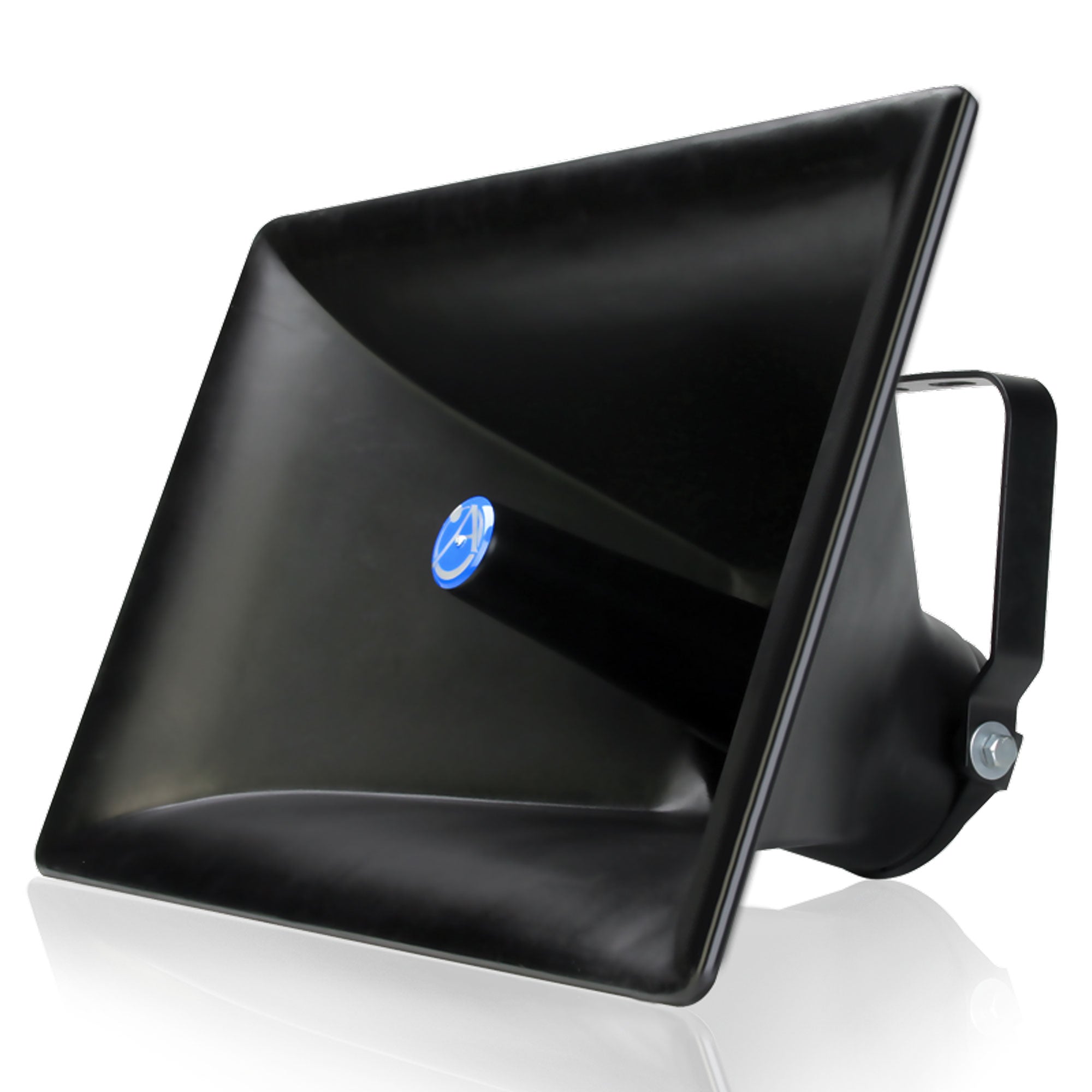

AtlasIED CD94 90° x 40° Constant Directivity Re-Entrant Paging Horn

90° x 40° Constant Directivity Re-Entrant Paging Horn

The Industry's Only Constant Directivity Re-Entrant Horn

New CD Series horns from AtlasIED provide greatly improved uniform sound coverage compared to conical designs.

With all models the horizontal coverage pattern is precisely controlled over a frequency range. For mounting, the proven CJ46 style heavy-duty steel mounting bracket is utilized with positive lock for horizontal and vertical positioning in single or stacked multi-unit clusters.

Construction is polyester resin and glass-fiber laminate integrally molded to a die-cast zinc throat section.

Recommended AtlasIED Drivers: PD30 Series, PD-5 Series, PD60 Series.

Features:

• High Efficiency Constant Directivity, Re-Entrant Horn Design
• Popular Coverage Patterns to Accommodate Most Applications
• Vertical Beamwidth Control Down to 1000Hz
• Heavy-Duty Positive Locking Steel Mounting Bracket for Secure Positioning
• Environment - Resistant Construction for Indoor / Outdoor Applications
• Equipped With Standard 1 3/8" - 18 Female Threads for Use with All PD Series Drivers

Specifications:

• Dispersion: H, 90°, ±10°, 900Hz-6kHz V, 40°, ±10°, 1000Hz-10kHz
• Low Frequency Cut Off: 300Hz
• SPL (1W/1M) W/ PD60 Driver: 110dB
• Height: 18 1/4" (463mm)
• Width: 28 1/4" (718mm)
• Length: 15" (380mm)
