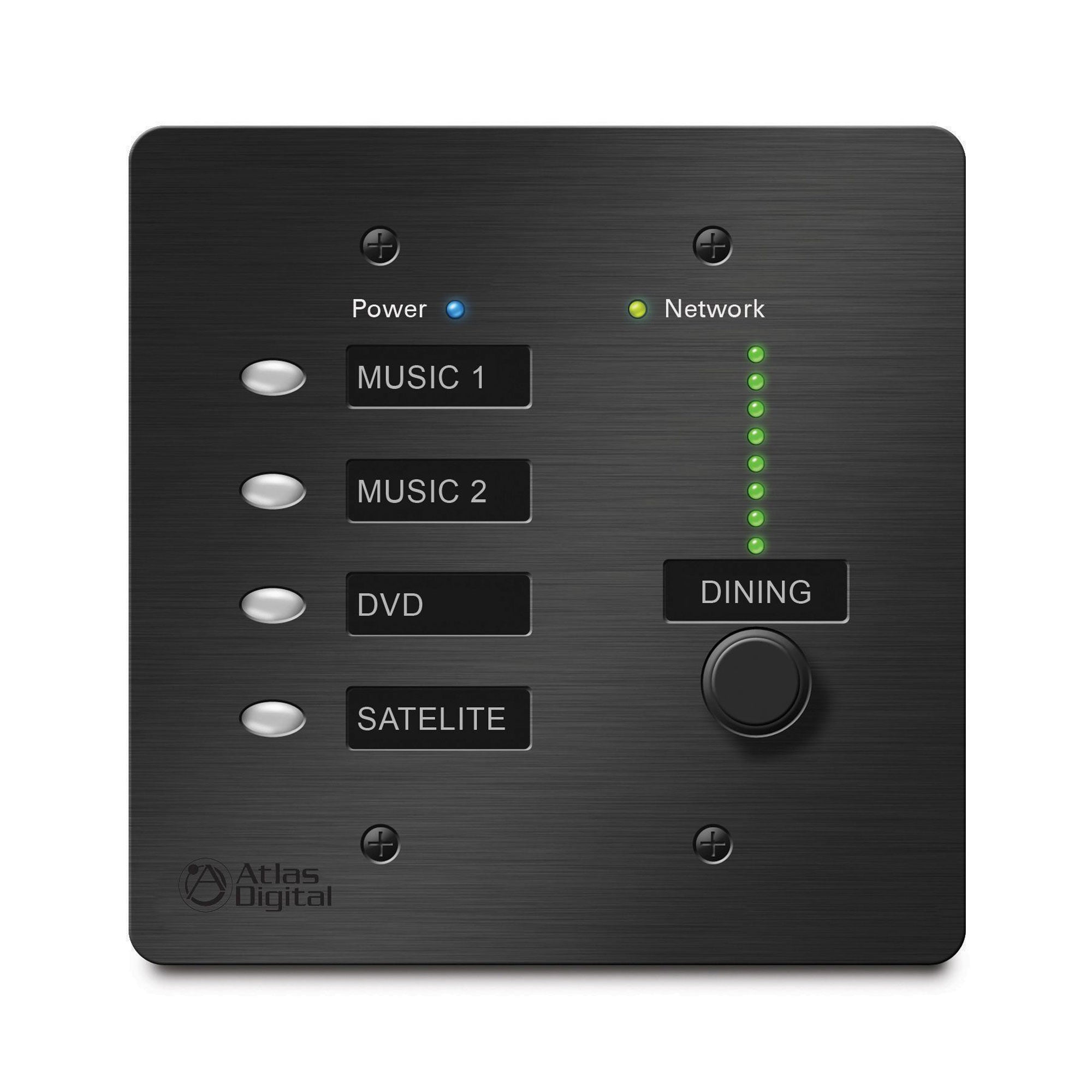

AtlasIED BBWP-S4K1B Bluebridge Controller With 4 Buttons and 1 Level Control (Black)

BlueBridge DSP Controller with 4-Button Controller and Level Control - Black

The BBWP-S4K1B is part of the BlueBridge DSP product line. The BBWP-S4K1B is a four-button wall controller that can be used to change any four preset selections and level control. It can also control button, preset, matrix connect, and mute functions. Using BlueBridge Designer software, you can virtually assign level values and stack multiple actions to the single level control.

Features:

• Power and Network Status Indicator LEDs
• 5 Label Slots with Plastic Covers
• Single Level Control with LED Ladder Level Indicator
• Aluminum Front Panel
• RJ45 Ethernet Connector
• External Power: 2 Pin Detachable Euro Connector
• IP Reset Switch Push Button
• Also Available in White

Specifications:

• Power: 5V DC @ 1A, Power Supply Included 48VDC-PoE
• Wall Mounting: Fits 2-Gang Back Box
• Height: 4.5" (114.3mm)
