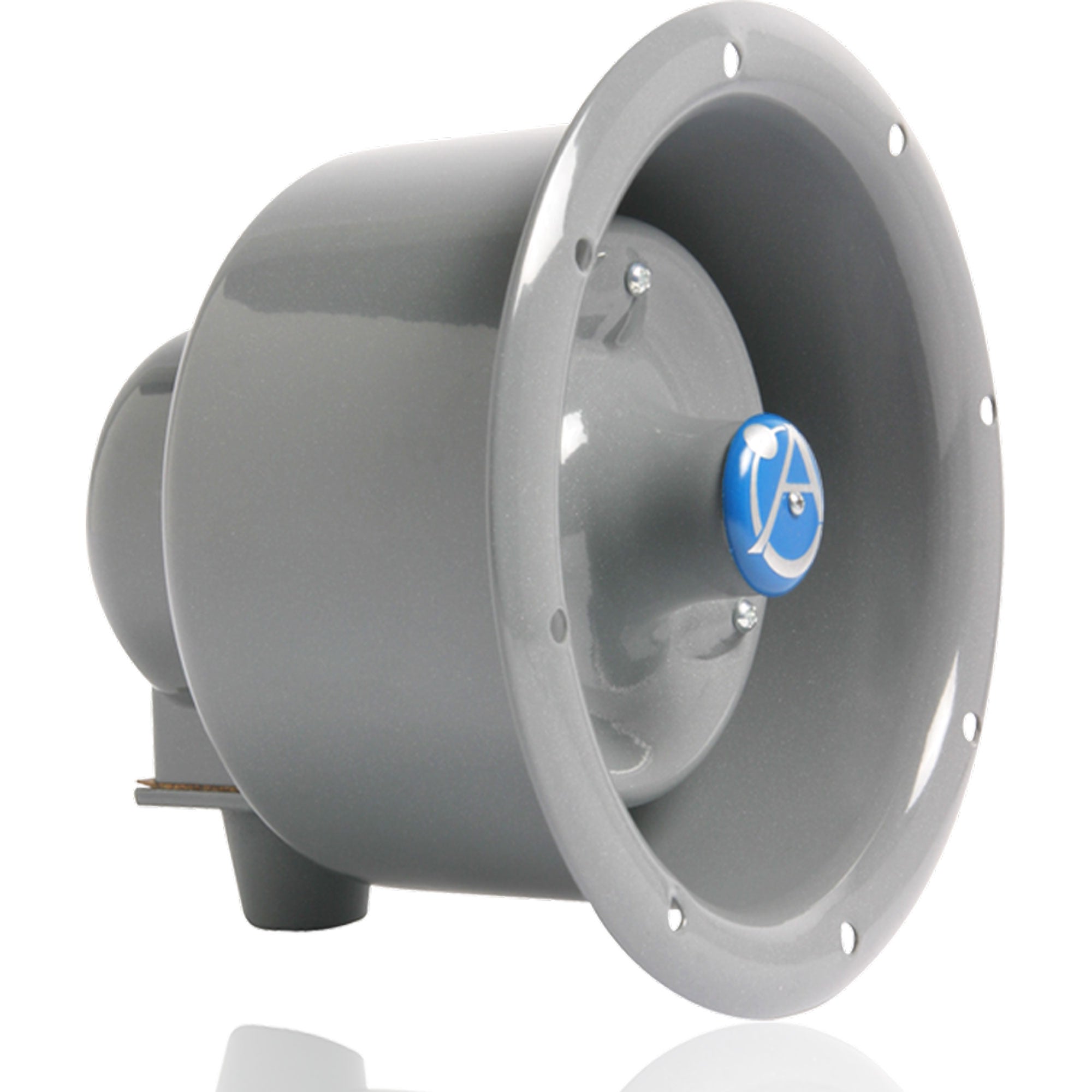

AtlasIED APF-15TUC Flanged Emergency Signaling Loudspeaker

Flanged Emergency Horn Speaker with 15-Watt 25V/70V Transformer and Line Supervision Capability

APF Series voice control speakers are equipped with a compression driver to provide up to 15 watts of continuous power handling, superior intelligibility and audio conversion efficiency for maximum sound projection and penetration. APF Series speakers may be flush mounted or recessed directly into interior/exterior walls or ceilings. Recessed installation may be accomplished by mounting speakers into a 5 1/2" deep opening or recessed enclosure. Units will facilitate AtlasIED L20 Serie grilles, enclosures and mounting rings (refer to SL2-1372). Accessory mounting kits Model MK-2 or FAMT-6 can be used to mount speakers into 8" diameter baffles.

Models include a built-in 25/70.7V Vari-Tap transformer featuring a screw-driver adjustable, 7-position watt/impedance selection switch. Magnet assembly is equipped with self-aligning field replaceable diaphragm. Wiring terminals are protected with a vandal-resistant adapter cover for control equipment utilizing cable or conduit.

A built-in, 5 mfd capacitor is provided on Model APF-15TUC for line supervision. Model APF-15TU is not equipped with a capacitor. All units are finished in grey baked epoxy.

All models meet or exceed UL Standard 1480 for Fire Protective Speakers and are capable of operating within an ambient temp. range of 66°C (150°F) to -35°C (-30°F).The all-metal, environmentresistant construction and re-entrant acoustic path assure protection against water, humidity, vermin, physical abuse and corrosion. Models are also California State Fire Marshal Listed.

Features:

• 15-Watt High-Efficiency Compression Driver
• All Metal, Vandal and Environment-Resistant Construction for Indoor/Outdoor Use Indoor/Outdoor Use Indoor/Outdoor Use
• Built-In Vari-Tap Transformer for Easy Impedance Selection
• Compatible with Round or Square Decorative Baffles
• Flange and Recessed Mounting Provisions for Use on Interior/Exterior Walls and Ceilings
• Recommended for High-Intelligibility Paging, Intercommunication, and Signaling
• UL Listed For Fire Protective Signaling Systems
• UL Certified, Safety Listed to UL1480

Specifications:

• FREQUENCY RESPONSE: 600Hz - 14kHz
• SENSITIVITY: 104dB
• SAFETY LISTED: UL 1480
• DISPERSION: 95°
• OPERATING TEMPERATURE RANGE: -40 to 70C
• DEPTH: 5 3/16" (13.18 cm)
• DIAMETER: 5 5/8" (14.29 cm)
• SHIPPING WEIGHT: 5.00 lbs (2.27 kgs)
