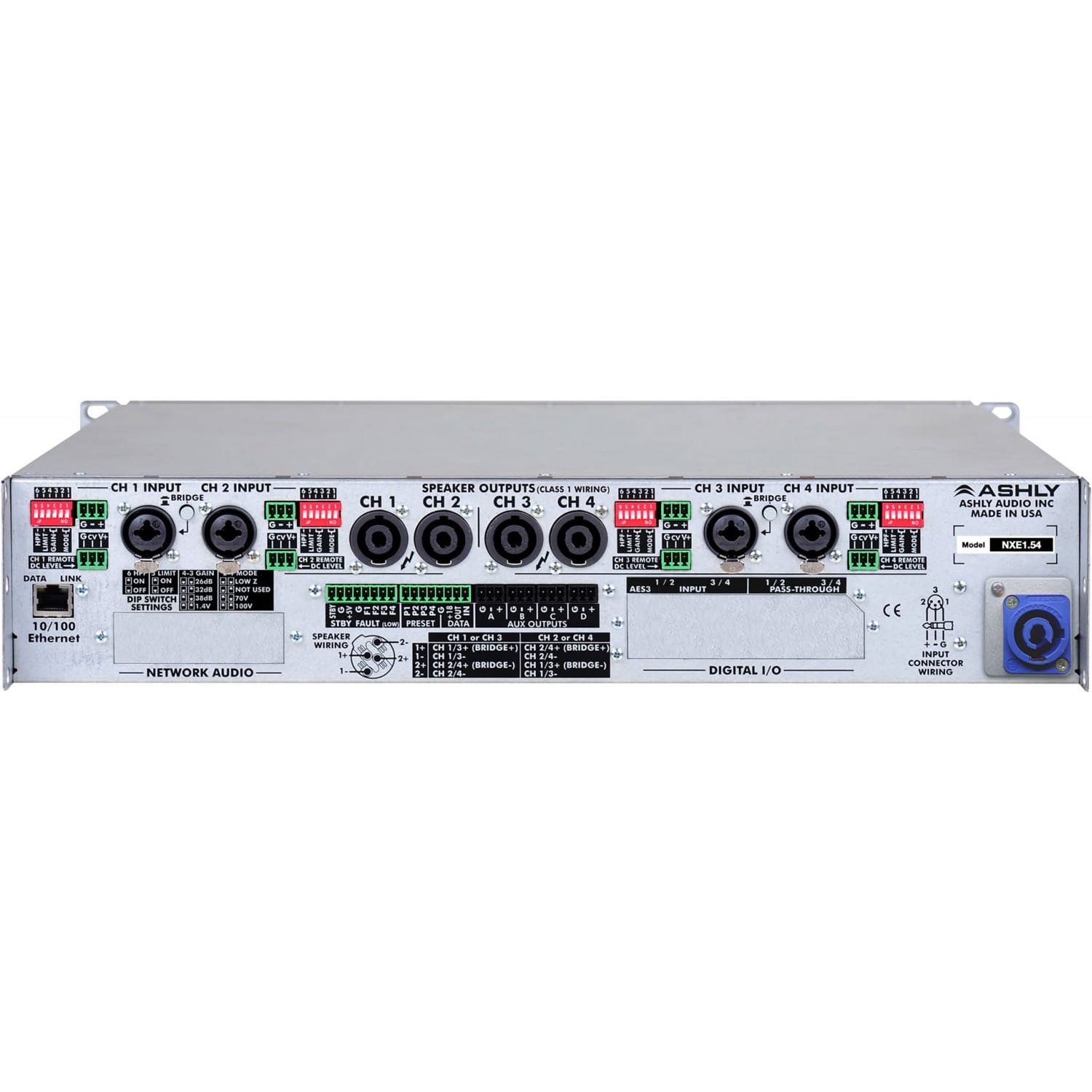

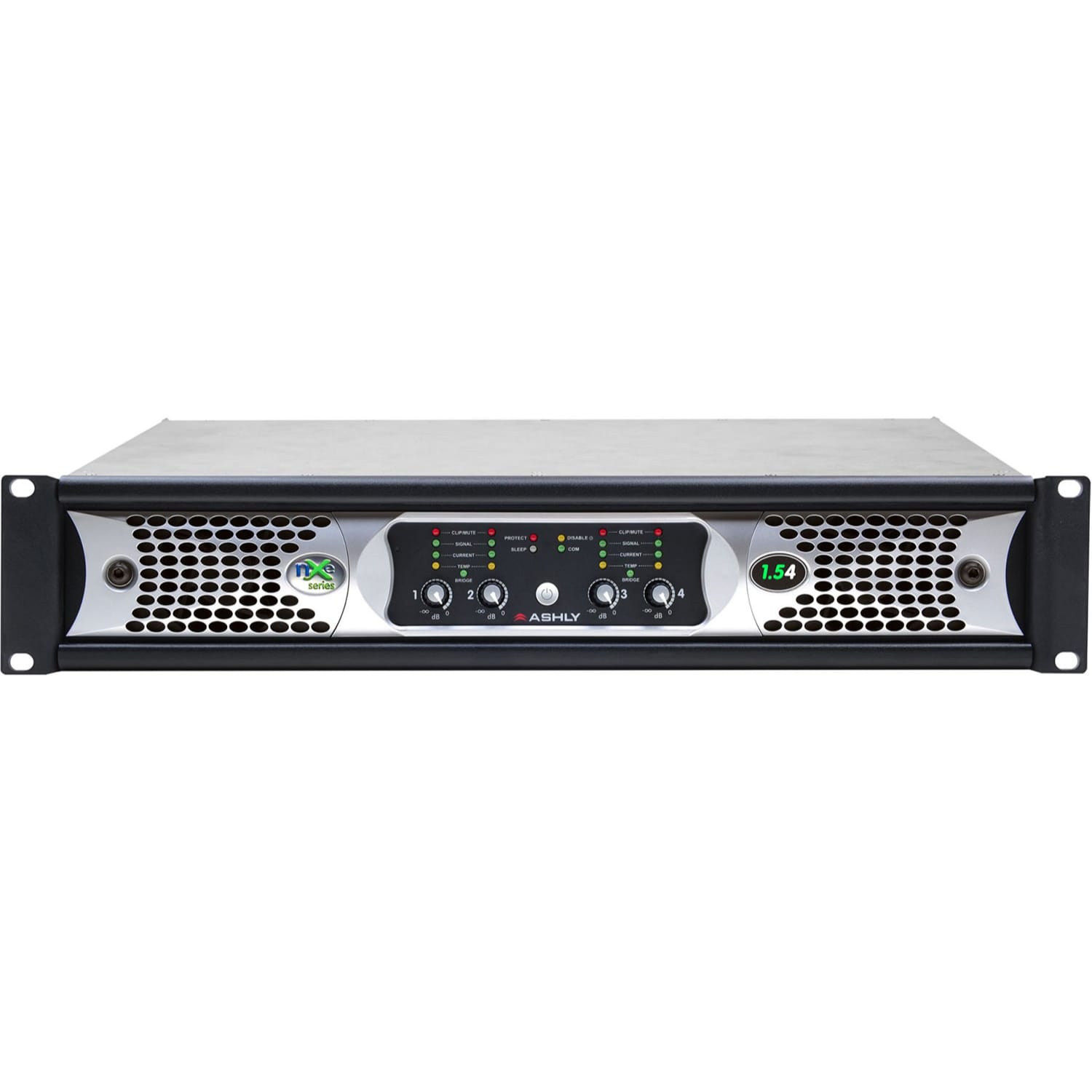

Ashly nXe1.54 Network Multi-Mode Power Amplifier (4 x 1500W)

Multi-Mode Network Power Amplifier, Ethernet, 4 x 1,500 Watts @ 2 Ohms

With NX you always have the right amp for the job. Each channel on NX amplifiers have Selectable Outputs so you can connect to virtually any speaker.

Choose from 2 and 4 channel models with 3000, 1500, 800, 400 Watts per channel. Simply set the DIP-switch configuration to the desired mode: Low Impedance (2, 4, and 8 Ohm), or Constant Voltage (70V or 100V) and you're set to go.

Available in three product families, nX is designed to meet the most demanding live sound and fixed installation sound systems in stadiums, arenas, performance venues, worship spaces and convention centers. When you choose Ashly nX, you choose a hand-built, US-made product backed by our team of engineers and an industry-leading 5-year warranty.

Features:

• Selectable 80Hz Hipass filter, limiter, and input gain per channel, via rear panel
• Remote DC level control per channel
• Extensive protection circuitry, continuously variable cooling fans
• Ethernet port for software control and monitoring of amplifier functions, with front panel COM activity LED
• Serial data port available for Ashly WR-5 and RD-8C programmable remote control (op onal RS-232 converter INA-1 available for third party controllers)
• Instant Standby Mode, 30% reduction in idle power consumption, triggered by contact closure, software control, or event scheduler
• Preset recall via contact closure, software control, remote control, or event scheduler
• Programmable power-on delay
• Aux preamp line outputs for driving other amplifiers
• Fault condition logic outputs, per channel
• Neutrik Combo XLR 1/4" TRS jack plus Euroblock input connectors
• Neutrik speakON twist locking loudspeaker connectors
• Neutrik powerCON detachable AC mains connector
• Safety/Compliance: cTUVus, CE, FCC, RoHS

Specifications:

• Voltage Gain: Selectable at 26dB, 32dB, 38dB, or 1.4V
• Damping Factor: >250 (8 Ohms load <1kHz)
• Input High Pass Filter: 80Hz 2nd order
• Distortion (SMPTE, typical): <0.5%
• Distortion (THD-N, typical): <0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)
• Channel Separation: -75dB (dB from full output, 1kHz)
• Signal-to-Noise (20Hz-20kHz, unweighted):
  >114dB (all 3.0x models)
  >111dB (all 1.5x models)
  >108dB (all 800x models)
  >105dB (all 400x models)
• Frequency Response: 20Hz-20kHz, +/-0.05dB
• Balanced Input Connector: Euroblock 3.5mm, 1/4" TRS and XLR Combo jack
• Input Impedance: 10k Ohms
• Maximum Input Level: +21dBu
• Speaker Output Connector: Neutrik speakON
• Control Network: Compatible w/ standard 100MB Ethernet
• AUX Output Connector: Balanced Euroblock 3.5mm
• AUX Output Maximum Level: +21dBu
• Remote Standby Contact Closure: Euroblock 3.5mm, close contact to GND for standby mode
• Preset Recall Contact Closure: Euroblock 3.5mm, close contact to GND for preset 1-4 recall
• Data Connection: Euroblock 3.5mm - Gnd, +18V, In, Out
• Fault Condition Logic Outputs: Fault indicated by loss of 1Hz "heartbeat" pulse signal
• Remote DC Level Control: Euroblock 3.5mm - Gnd, CV, V+ per input
• Attenuators (per channel): Front panel, software, offset link group, and remote. Fully off = Mute
• Amplifier Protection: Inrush current limitation, temperature monitoring, output over-power protection, mains fuses
• Cooling: Continuously variable temperature controlled axial fan(s)
• Environmental: 32-113 deg F, (0-45 deg, C) (noncondensing)
• Power Requirements (@ 50/60Hz)
• Nominal (Automatic Sensing SMPS): 120VAC, 240VAC
• Operating Range: 70-135VAC, 140-270VAC
• Minimum power-up: 85VAC, 170VAC
• Power Cable Connector: 20A powerCON (32A powerCON 3.04 model only)
• Weights and Dimensions
• Unit Weight: 1.54/3.04:28.7lbs(13kg) 1.52/3.02:22.7lbs(10.3kg) 4002/8002:22.2lbs(10.1kg) 4004/8004:25.9lbs(11.7kg)
• Shipping Weight: 1.54/3.04:35.2lbs(16kg) 1.52/3.02:29.2lbs(13.3kg) 4002/8002:28.7lbs(13.1kg) 4004/8004:32.4lbs(14.8kg)
• Unit Dimensions (all models): 19"W x 3.5"H x 16.84"D (483mm x 89mm x 428mm)
• Shipping Dimensions: 24.5"W x 22"H x 5.25"D (622mm x 559mm x 133mm)
• Front Panel LED Indicators
• POWER (white): Switch: On, Off, Standby (flashing)
• PROTECT (red): On (fault condition or shut down), Off
• SLEEP (blue): On, amplifier is asleep from audio inactivity
• DISABLE (yellow): On, power switch & front panel attenuators are disabled
• COM (green): On, for Ethernet data or Device ID
• Per Channel
• CLIP/MUTE (red): Clip @ 1dB below full output / Mute
• SIGNAL (green): -18dB below rated output
• CURRENT (green): Proportional to output
• TEMP (yellow): On dim at 90% max operating temperature, full bright + protect at 100%
• BRIDGE (green): On, Off
