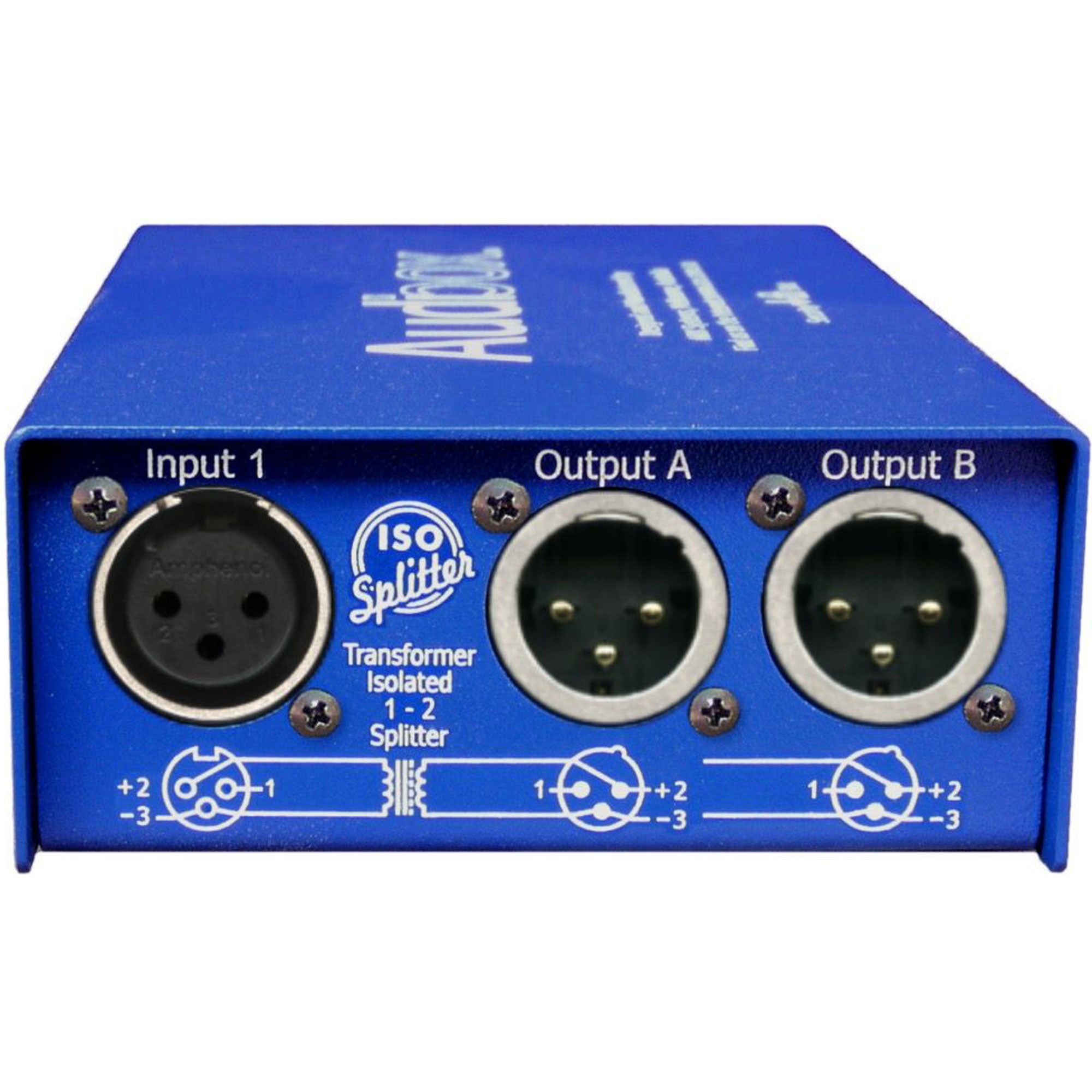

ARX IS-1 Iso Splitter Transformer Isolated Splitter (Single Channel)

AudiBox Series Single Input Transformer Isolated Microphone/Line Splitter 1 XLR-F Input to 2 x XLR-M Outputs

A transformer isolated 1 input to 2 outputs microphone / line splitter for dividing one input signal two ways in applications where complete Galvanic isolation is required. Mounted in a heavy duty all steel chassis, and available in Single Channel (IS-1) or Double Header dual channel (IS-2) format. The unique Audibox Double Header format puts one channel on the front of the unit, and a second channel on the rear, putting two channels in the space of one! An ultra useful and convenient option. Needs no power.

A transformer isolated 1 input to 2 outputs splitter for splitting 1 input 2 ways in applications where complete Galvanic isolation is required, eg Broadcast feeds, remote recording

Available in Single Channel or Double Header format. The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads.

The ISO Splitter is a totally passive device with no power requirements, making it a universal problem solver.

Security features include Kensington-type computer lock slot and optional bracket kit for under-table mounting.

Available in Single Channel or Double Header format

Specifications:

• Input Impedance: 300 Ohms
• Output Impedance: 2 secondaries @ 600 Ohms each
• Frequency Response: 20Hz - 20 KHz ± 0.1dB
• Maximum Output Level: + 20dBm
• THD at Max Output: 0.2% 30 Hz - 20KHz @ 20dBm
• Insertion Loss: 1.6dB @ 1 KHz (600 Ohm source & load)
• Input Connectors: 3 pin female XLR wired Pin 2 + Hot, Pin 3 - Cold
• Output Connectors: 3 pin male XLR wired Pin 2 + Hot, Pin 3 - Cold. Audio grounds are unconnected
• Ground Reference: Chassis is grounded to Output A Pin 1; Duo version chassis is grounded to Channel 1 Output A Pin 1
• Construction: All-steel chassis, fibreglass PCB, ultra low noise audio transformer
