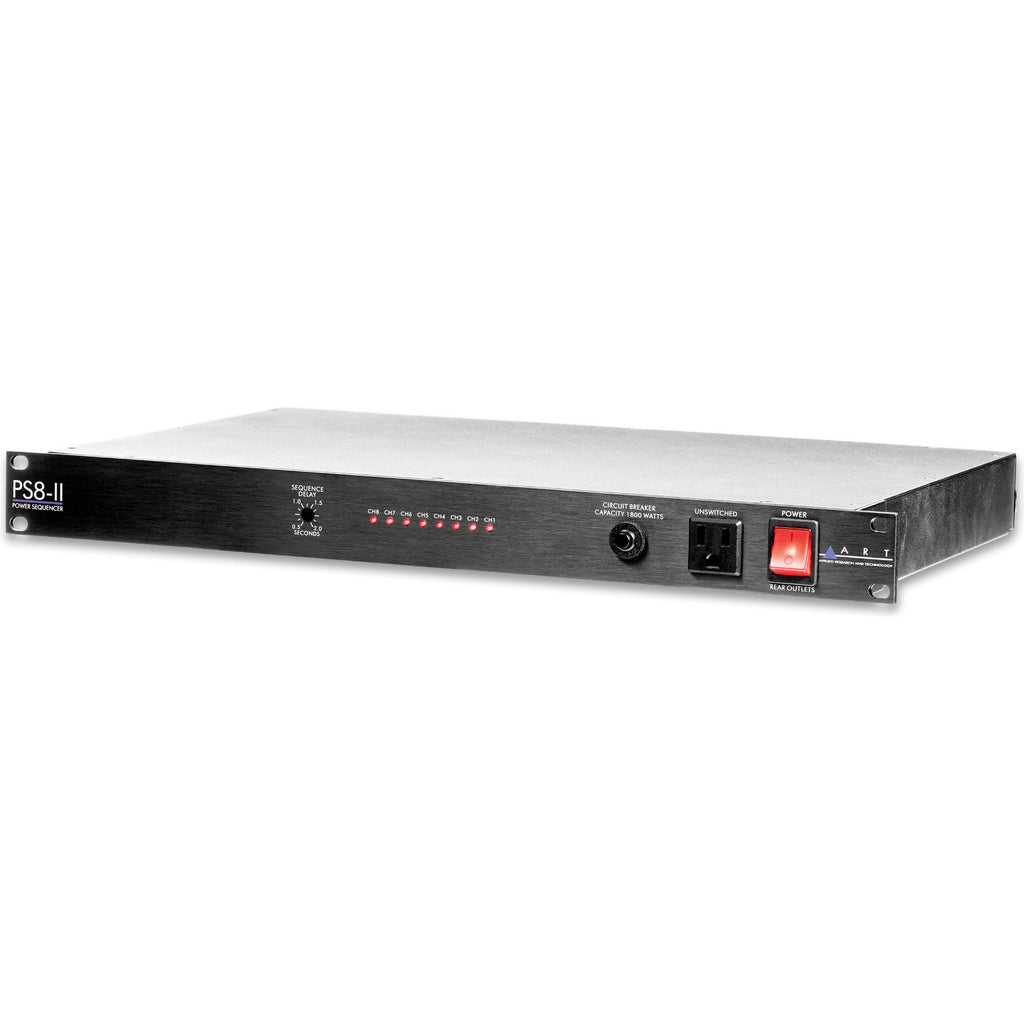

ART PS8-II Professional Power Sequencer for 8 Rear AC Outlets

Professional Power Sequencer for Eight Rear AC Outlets

The ART PS8-II provides controlled power sequencing to eight rear AC outlets. Each output's power up / power down is delayed by a fixed amount determined by the front panel user definable Sequence Delay control. This allows you to control the power up and down sequence in a system to smooth out inrush currents and minimize turn-on transients that may damage sensitive equipment.

PS8-11 Applications:

• Full-featured power conditioner and fast acting breaker
• EMI and RFI filter, as well as offer surge and spike protection to protect your system
• By design it is ideal to sequence and therefore protect a wide range of equipment including sensitive tube preamps, powered speakers, large displays, or digital systems

Features:

• Adjustable Sequence Delay Range from 0.5 to 2.0 Seconds per Output

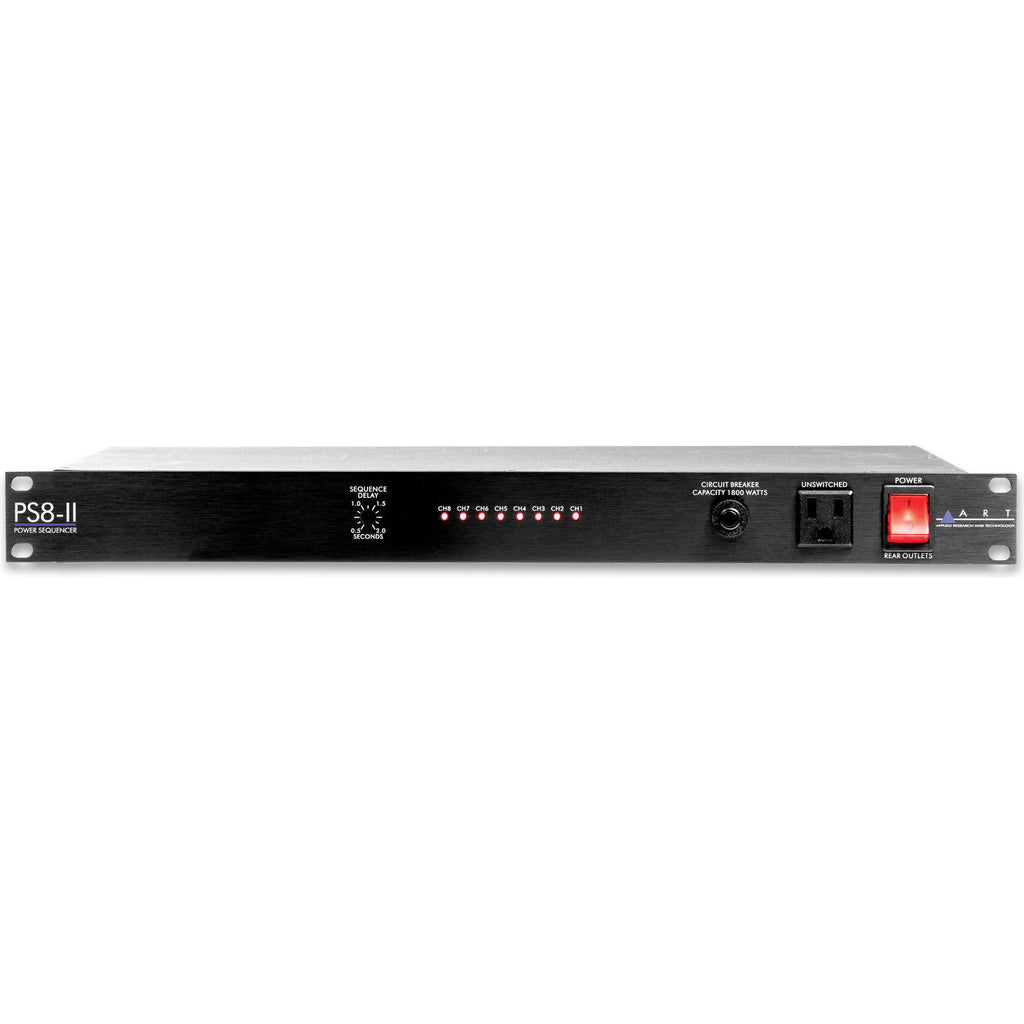

• Eight Individually Sequenced Outputs with Front Panel LED Indicators for Each
• Rear Mount Remote Control Terminal Block for Remote Sequence Control
• Front Panel Unswitched and Unregulated Output
• 1800 Watt Total Power Capacity
• Front Panel Master Breaker and Power Switch
• EMI and RFI Filtering
• Surge and Spike Protection

Specifications:

• Power Capacity: 1800 W
• Maximum Load: 15 Amps / 1800 W (@ 120 VAC)
• Outlets:

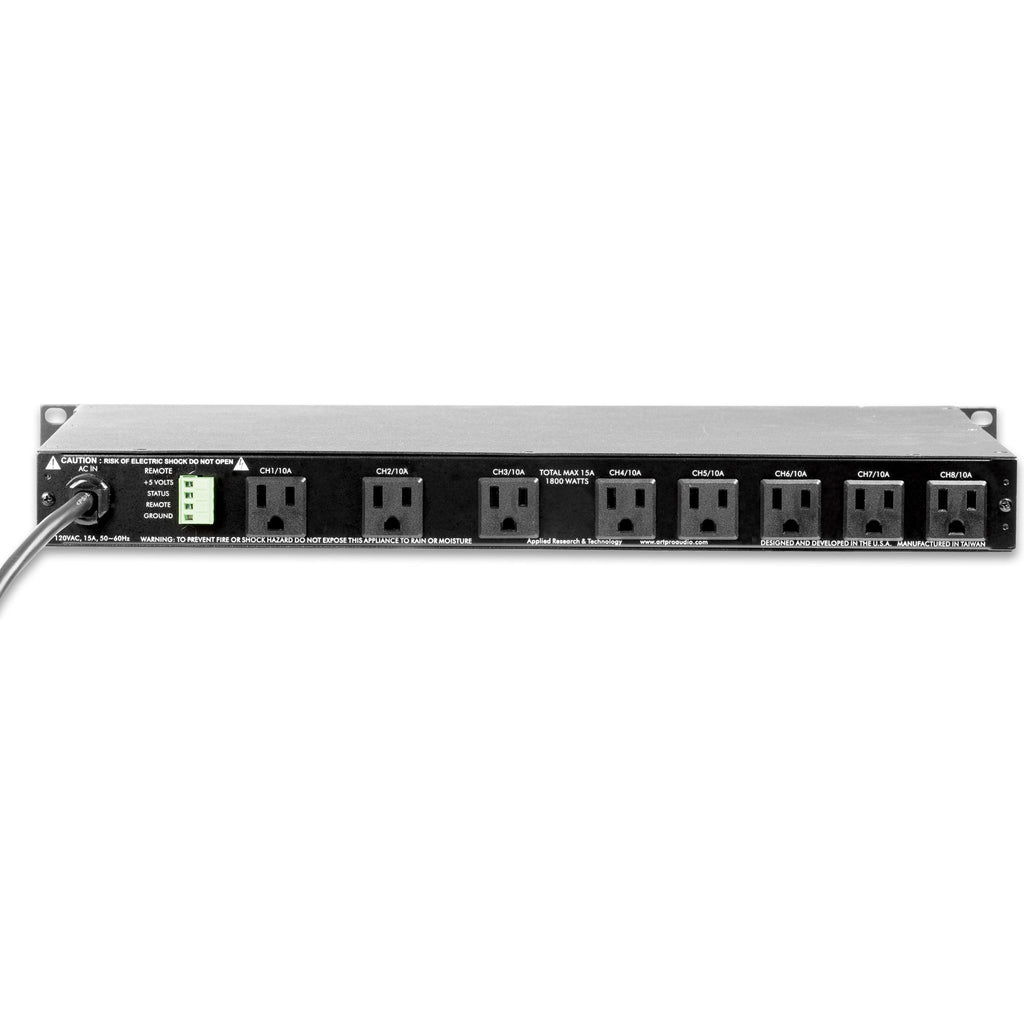

  8 x Rear Mounted Individually Sequenced Outlets
  1 x Front Mounted Unswitched
• Delay Time: 0.5 to 2.0 Second Variable Pot
• Remote Switch: On/Off Function
• Remote Terminal: Rear Mounted 4-pin Euro Block Connector
• Line Filtering: RFI / EMI
• Power Requirements: USA - 105 to 125 VAC / 60 Hz
• (Export units configured for country of destination)
• Dimensions: 1.75"H x 19.0"W x 11.5"D (165mm x 482mm x 292mm)
• Weight: 9.2 lbs (4.2 kg)
