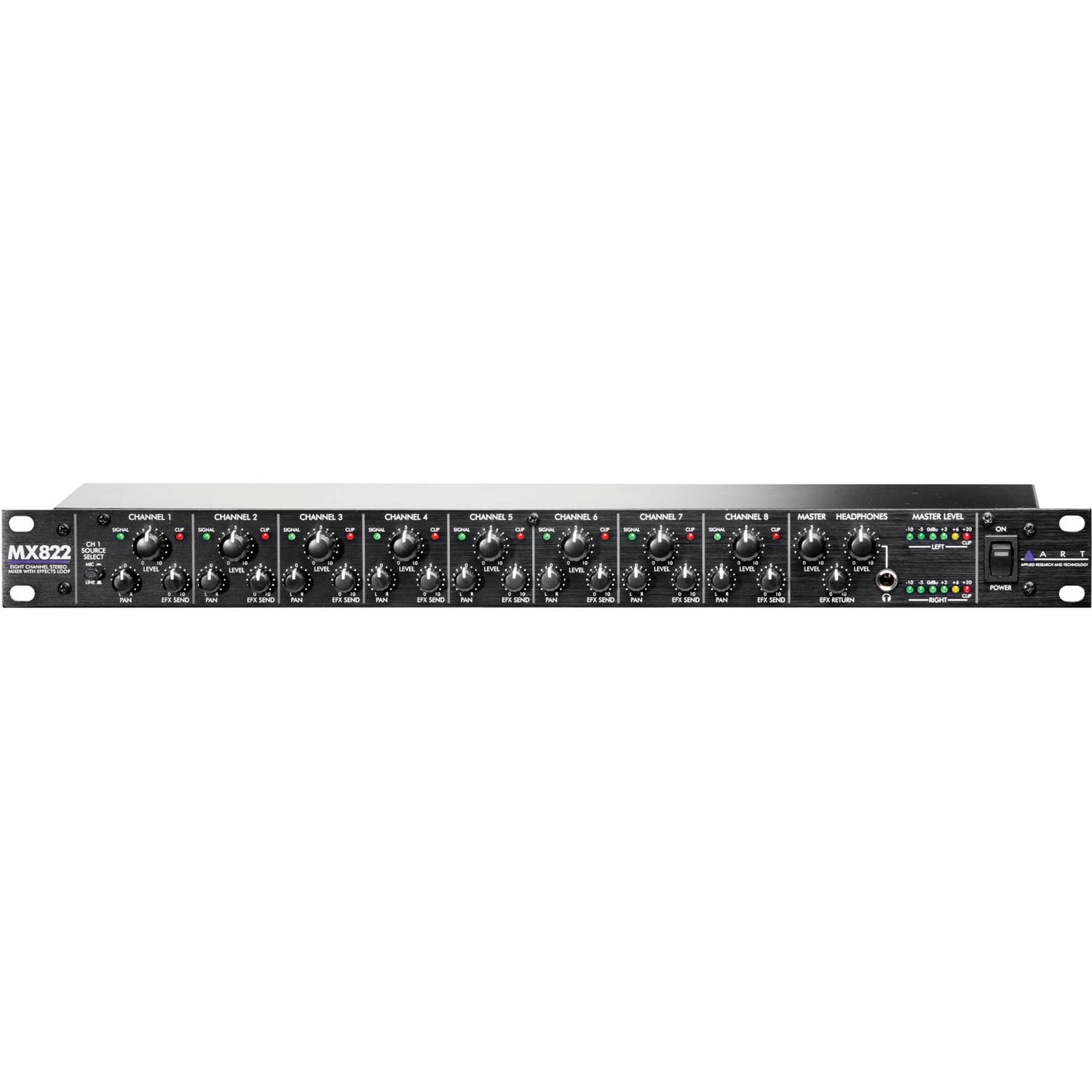

ART MX822 8-Channel Stereo Mixer with Effects Loop

Eight Channel Stereo Mic/Line Mixer with +48v Phantom Power

The ART MX822 Eight Channel Stereo Rackmount Mixer is a versatile eight input mixer for studio, live sound or installation applications. Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls. Channel One includes a switchable mic/line source select and the XLR mic connector provides switchable phantom power.

Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.

Features:

• Eight stereo/mono input channels with individual level, pan and effects send controls
• External effects loop with independent send and return controls
• Front panel 1/4-inch stereo (TRS) headphone jack with amplifier and independent level control for
• output monitoring
• Switchable balanced microphone XLR or 1/4-inch inputs on Channel One
• Switchable low noise +48V phantom power for microphone input
• Separate green and red LED signal and clip indicators for each input channel
• Six level left and right main output metering including clip indicators
• Balanced left and right XLR main outputs
• Multiple units may be chained together for additional inputs
• Rugged 1U rack mount steel case

Specifications:

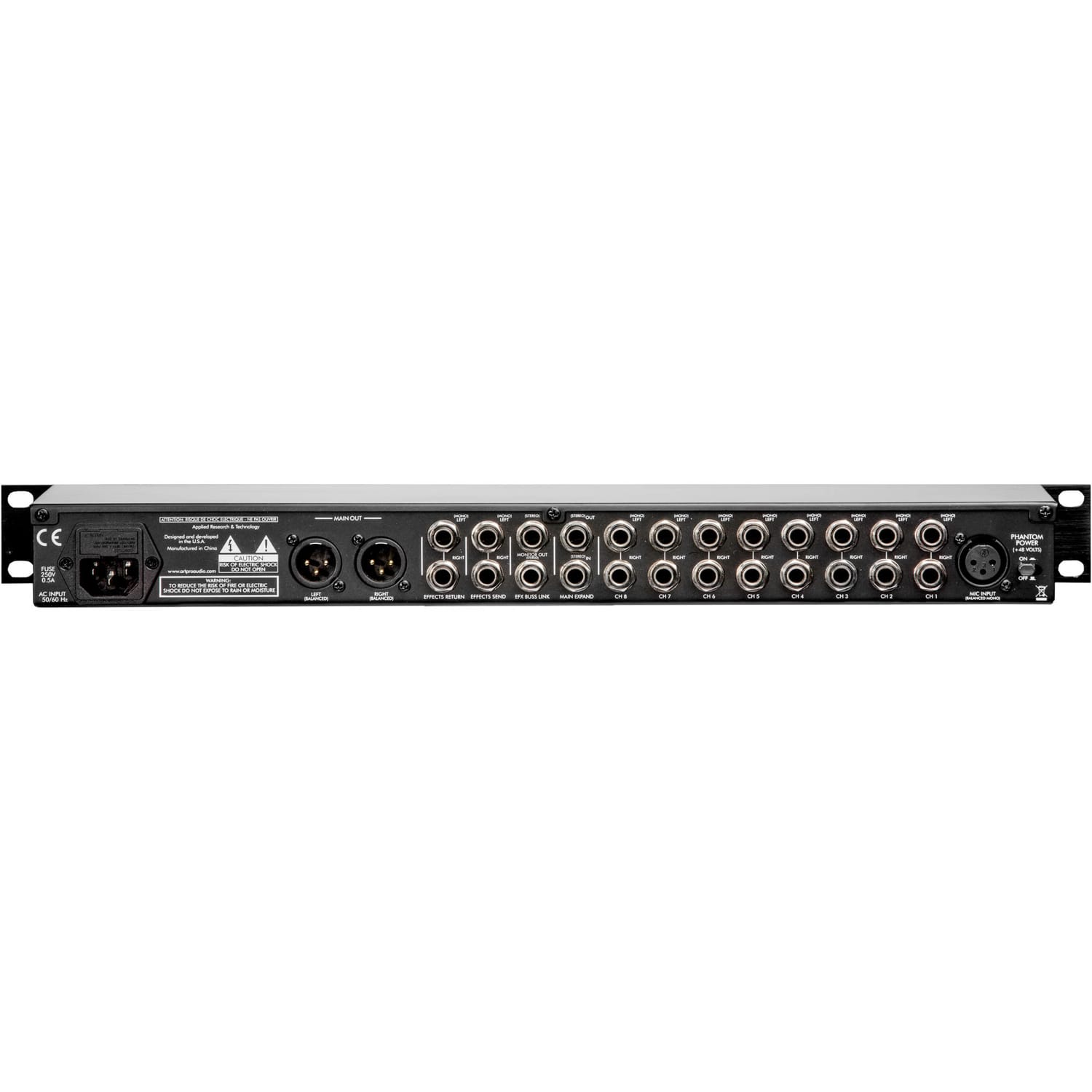

• Input Connections: XLR-F balanced (MIC)
  1/4" TRS unbalanced (Ch1-Ch8, Effects Return)
  1/4" TRS stereo unbalanced (EFX Buss, Main Expand)
• Output Connections: XLR-M balanced (Main)
  1/4" TRS unbalanced (Effectss Send)
  1/4" TRS stereo unbalanced (Monitor, Main Expand, Headphone)
• Input Impedance: 1k Ohms (MIC), 5k Ohms (Ch1-Ch8)
• Output Impedance: <1kOhms (Main, balanced), <25 Ohms (Headphone)
• Total Harmonic Distortion: <0.01% @ 1kHz
• Signal to Noise Ratio: > 90dB typical (Ref 0dBu)
• Maximum Input Level: -19dBu (MIC), +24dBu (Ch1-8)
• Maximum Output Level: +24dBu (Main), +18dBu (Monitor, Effects Send)
• Maximum Gain: +60dB (MIC), +14dB (Ch1-8)
• Phantom Power: Switch Selectable, +48V DC, filtered, current limited
• Dimensions: 1.75"H x 19"W x 6"D (44.5mm x 483mm x 152mm)
• Weight: 6.5 lbs (2.95 kg)
• Power Requirements: USA - 95 to 125 VAC, 50-60 Hz
• Export units configured for country of destination
