American DJ Stage Pak 1 Controller & Dimmer Pack System

8 or 16 Channel DMX Controller & Dimmer Pack System

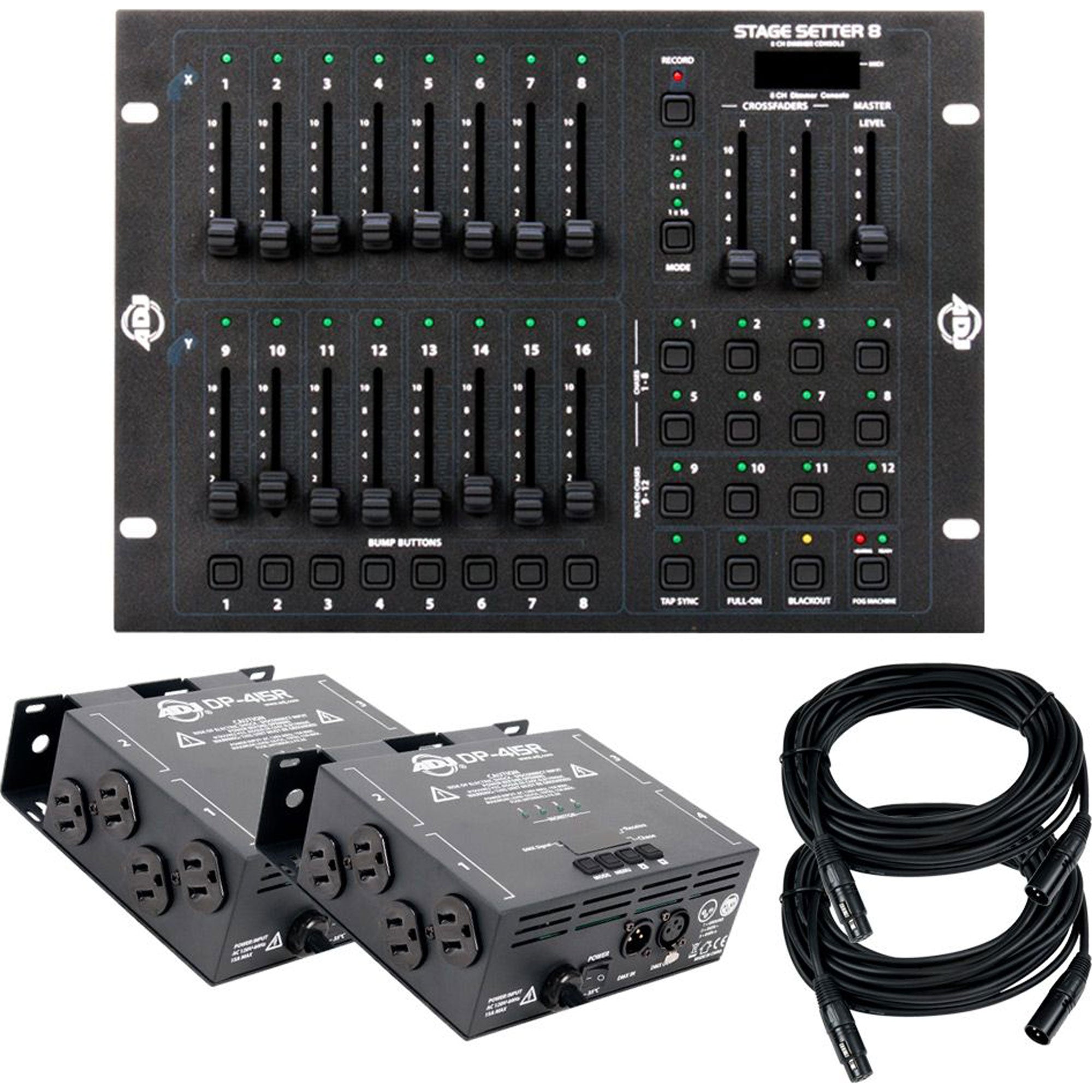

The American DJ Stage Pak 1 is a DMX controller and dimmer pack system compiled to provide everything needed for up to 8 channels of DMX lighting control right out of the box. The system consists of the American DJ Stage Setter 8 DMX controller, a pair of DP-415 4-channel dimmer pack / switchers and a pair of DMX control cables.

The Stage Setter 8 is a fully functional 16-channel DMX controller well suited for the touring performer, musician, DJ, and venue installation. The Stage Setter 8 is capable of 8 or 16 channel operation over LED lighting effects and laser fixtures. The unit also includes a fog machine output with a dedicated trigger. The Stage Setter 8's LED display and intuitive controls make programming fast and easy. The unit features 4 built-in and 8 user programmable patterns. Its rack-mountable frame installs into a mobile rack for easy transport and storage.

Features:

• Stage Setter 8 DMX Controller
• Three different operating modes; 2 x 8 (two banks of 8 channels), 8 x 8 (eight channels), 1 x 16 (one bank - 16 channels)
• 8 or 16 channel DMX operation
• Four built-in programs
• Eight user programmable programs
• Fog machine output control (compatible with ADJ Vaporizer, Stallion, MB-700, and others)
• XLR polarity switch
• Standard DMX-512 protocol
• MIDI compatible
• DP-415 DMX Dimmer Pack
• Compact 4-Channel DMX Dimmer
• 2x 3-pong Edison plugs per channel (8 total plugs)
• On/Off power switch
• XLR In/Out
• 10-position dip switch settings to address DMX
• Assign as a dimmer pack or switch pack
• Changeable hanging bracket to hang on truss
• LED "On" indications
• Max Power: 15A Total, 5A per channel

Specifications:

• Power:
  Stage Setter 8: DC 12~20V, 500 m A min.
  Dimmer Pack: AC 120V~60Hz, 15A max.
  Dimmer Pack Channel Output: 15A max.,5A per channel
  Dimmer Pack Fuse: F6.3A 250V 5x20mm (x4PCS)
• Patterns: 12 patterns, including 8 programmable patterns and 4 built-in patterns
• Connections:
  MIDI In, Out, Thru: 5-pin Multiple Socket
  DMX: 3-Pin XLR Female
• Steps: Up to 32 steps for each pattern
• Dimensions:
  Stage Setter 8: 12.20 x 8.74 x 2.80" (310 x 222 x 71mm)
  Dimmer Pack: 7.08 x 6.95 x 2.51" (180 x 177 x 64mm)
• Weight:
  Stage Setter 8: 5.30 lb (2.4 kg)
  Dimmer Pack: 2.6 lb (1.2 kg)

Includes:

• 1 x Stage Setter 8
• 2 x DMX cables
• 2 x DP-415
