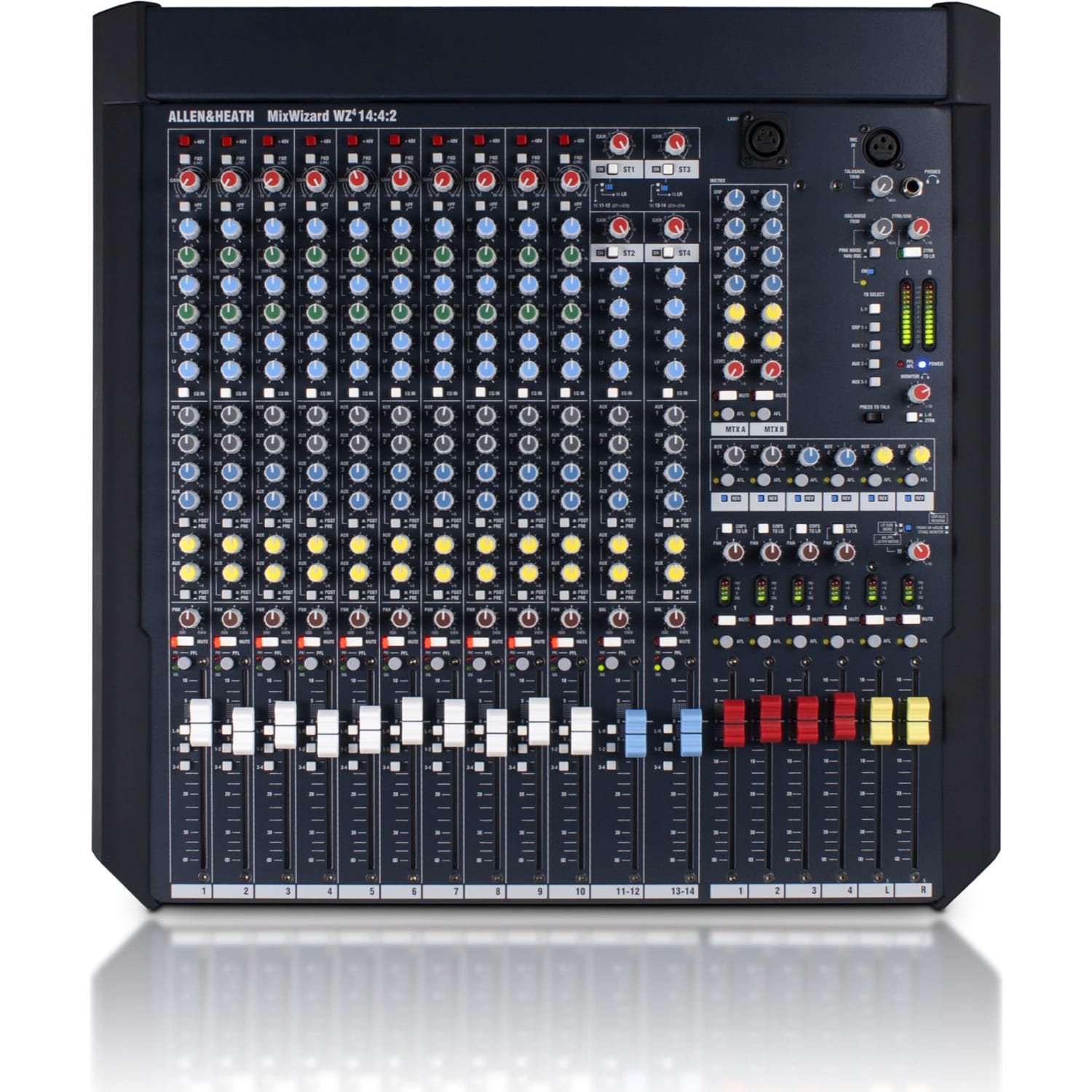

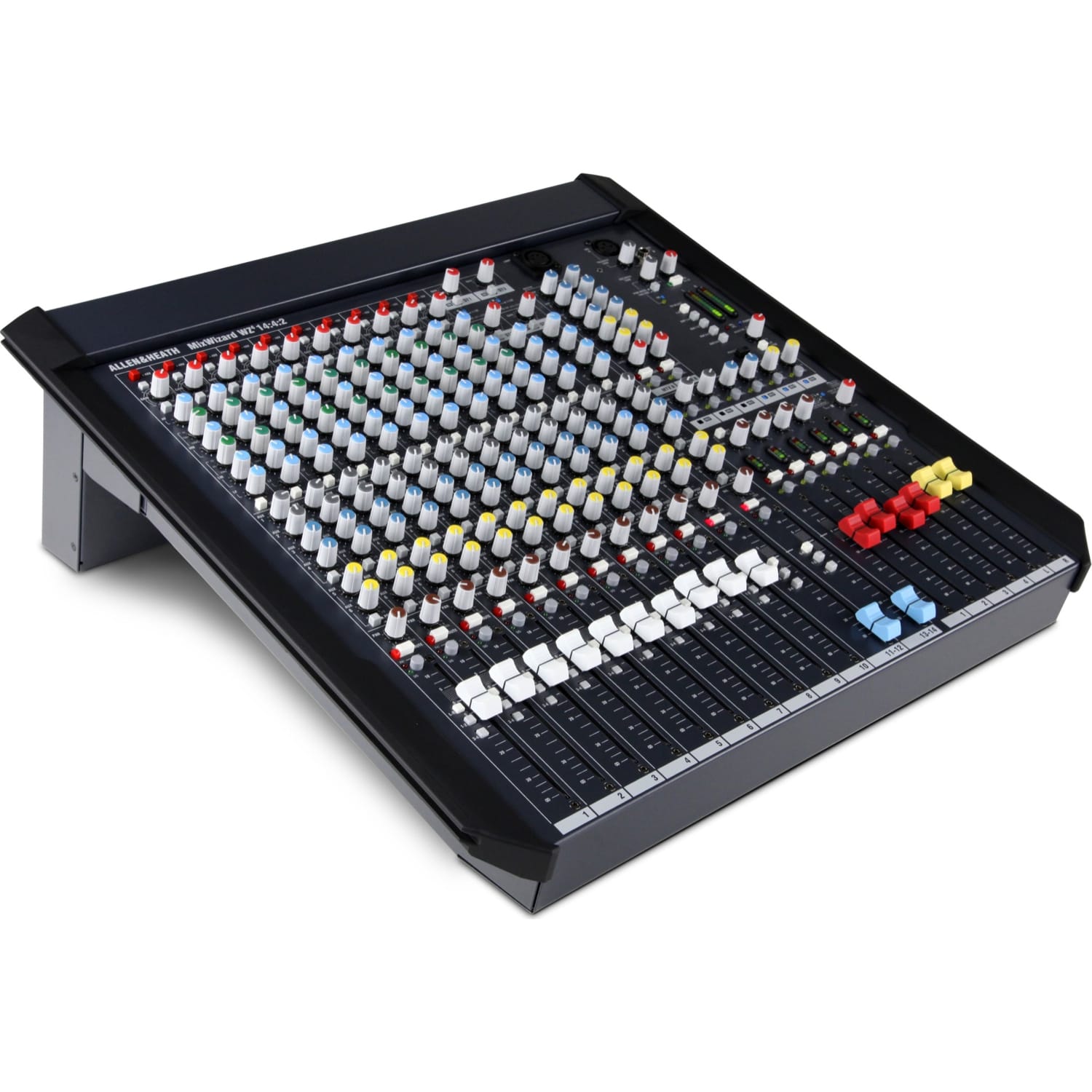

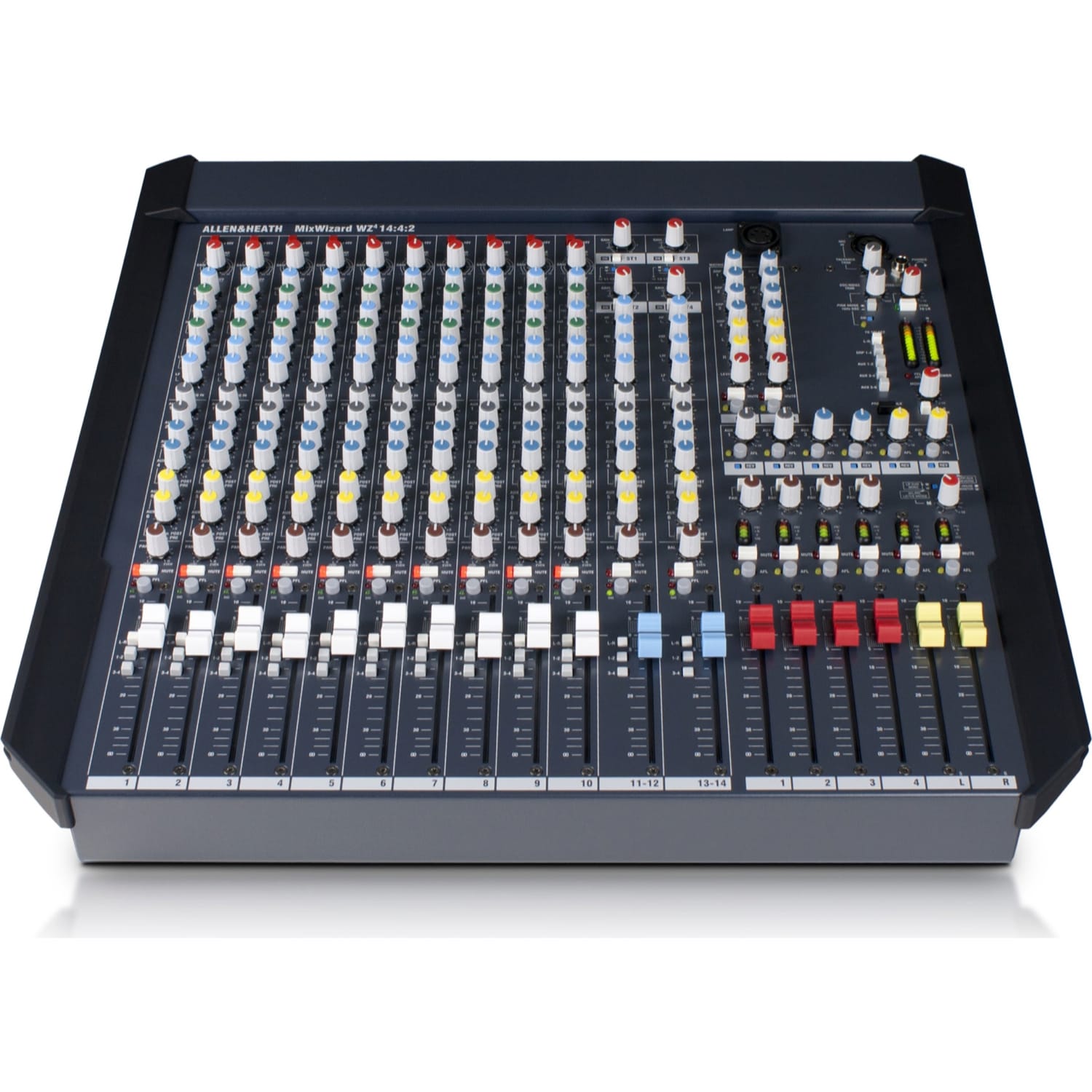

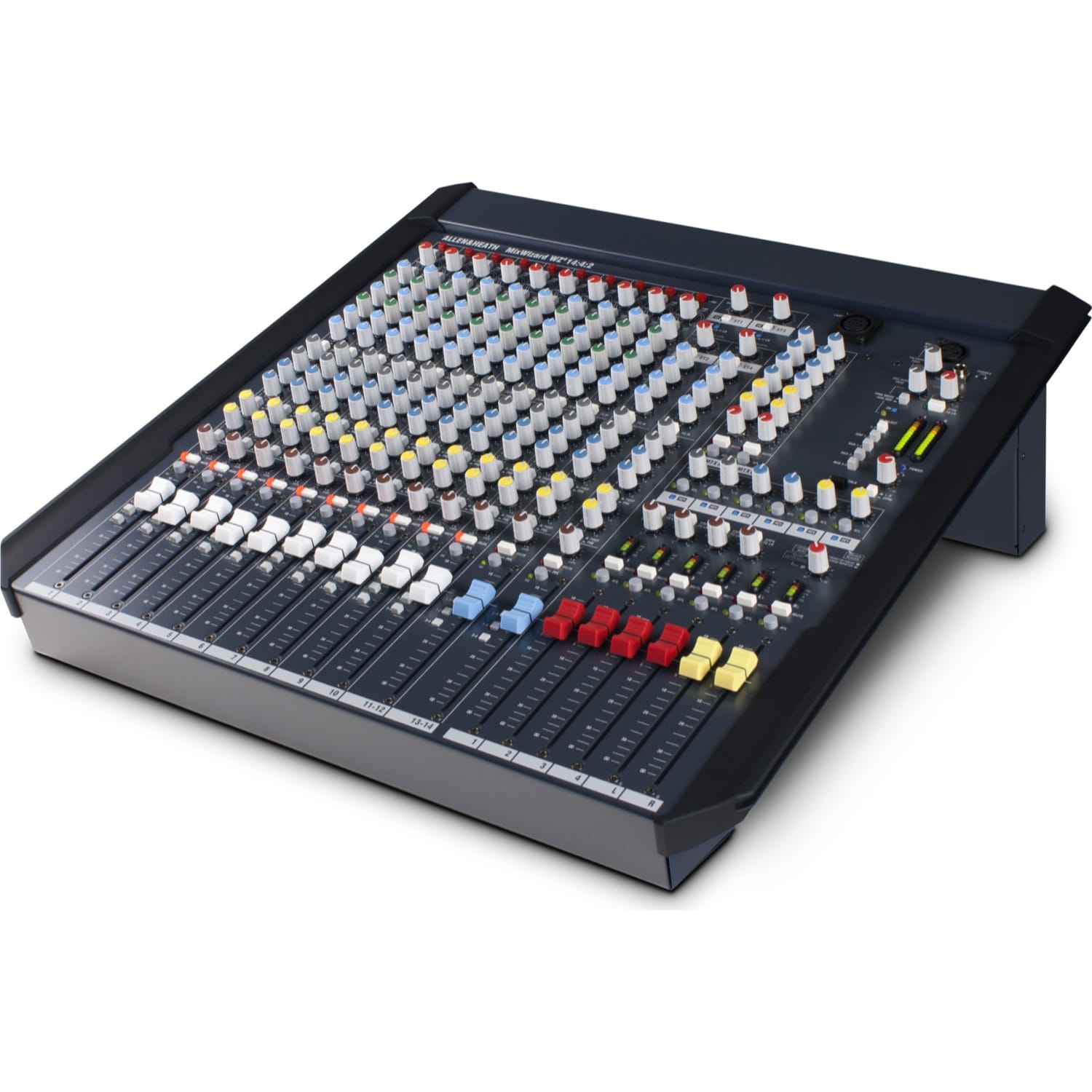

Allen & Heath MixWizard4 14:4:2 Professional Mixing Console

MixWizard - 14 Into 4 Live Mixer with Built-In Signal Generator

Designed as a uniquely versatile live sound mixer, WZ4 14:4:2 is equally at home at Front of House, on Monitors, or doubling up to fill both roles at once.

WZ4 14:4:2 features our acclaimed 4 band EQ with 2 sweepable mids, high quality 100mm faders, 6 aux sends, 12 segment bargraph metering and our unique QCC connector system for easy desktop, rack or flightcase mounting.

This 4th generation MixWizard console now has the option to fit a multichannel USB interface with high quality 16 channel soundcard for easy multitrack recording and 2-track playback.

If you're looking for professional grade, all-purpose analogue mixers in a compact, rack mountable frame, the MixWizards continue to set the bar.

FOH / MONITOR / DUAL MODE
In FoH Mode, the 4 groups with inserts, 100mm faders and XLR outputs can be routed and panned to the LR mix for flexible sub-mixing. The main LR mix has inserts, separate left and right faders, and XLR outputs to feed the main speaker system. EQ and signal processing can easily be inserted on group and main outputs.

In Monitor Mode, the aux mixes are routed to the group and LR faders, inserts and XLR outputs. The AFL and PFL system is switched to the Mono output to provide an engineer's 'wedge' output. In essence, it's a perfect 6-mix monitor console with additional outputs available from the group busses via the aux master controls.

In Dual Mode some auxes can be used as monitor mixes and some sub-grouping can be used along with the main LR outputs, allowing the engineer to run FoH sound and some Monitor mixes from the same console.

Features:

• 19" Rack mountable
• 10 mic/line inputs with balanced XLR/TRS jack, insert and direct output
• 100mm faders
• Reverse switches swap the function of the group and aux masters in Monitor or Dual Mode applications
• 6 Aux sends - switchable pre/post fade
• 4 Audio groups
• 2 Dual Stereo inputs with separate gain and 'ON' switches allowing inputs to be selected independently or mixed together
• 4 band EQ with 2 swept mids
• 6x2 Matrix for providing feeds for in ear monitors, delay speakers, video, broadcast and more
• Oscillator and Pink Noise generator for line-up and speaker testing
• Tri-colour, 12 segment bargraph metering
• +48V Phantom Power
• Signal and Peak LEDs
• Talkback Mic XLR with trim
• Lamp socket
• SB multitrack recording option

Specifications:

• Performance
• Maximum Output Level:
  XLR - +26 dBu into 600 ohms max load
  1/4" jack - +21 dBu into 2k ohm max load
• Headroom:
  Channels +21 dB
  Mix +23 dB
• Metering:
  3 color LED, quasi peak response:
  Sensitivity - 0VU = +4 dBu at XLR output
  Master meters - 12-segment -30 to +16 dB
  Channel meters - 2-segment -12, +16 dB (5 dB before clip)
• Frequency Response: 20 Hz to 50 kHz (+/-0.5 dB)
• THD + N: Channel to mix out < 0.004% (at +10 dBu 1 kHz)
• Crosstalk:
  Fader shutoff > 90 dB (at 1 kHz)
  Mute shutoff > 90 dB (at 1 kHz)
  Inter channel > 90 dB (at 1 kHz)
• Noise:
  Mic EIN, -127 dB, (rms 22 Hz to 22 kHz)
  Residual output noise, < -96 dBu (-100 dB S/N), (rms 22 Hz to 22 kHz)
  LR unity fader mix noise, < -84 dBu (-88 dB S/N), (rms 22 Hz to 22 kHz)
  Group unity fader noise, < -90 dBu (-94 dB S/N)), (rms 22 Hz to 22 kHz)
• High-Pass Filter: 12 dB/octave below 80 Hz, (channel)

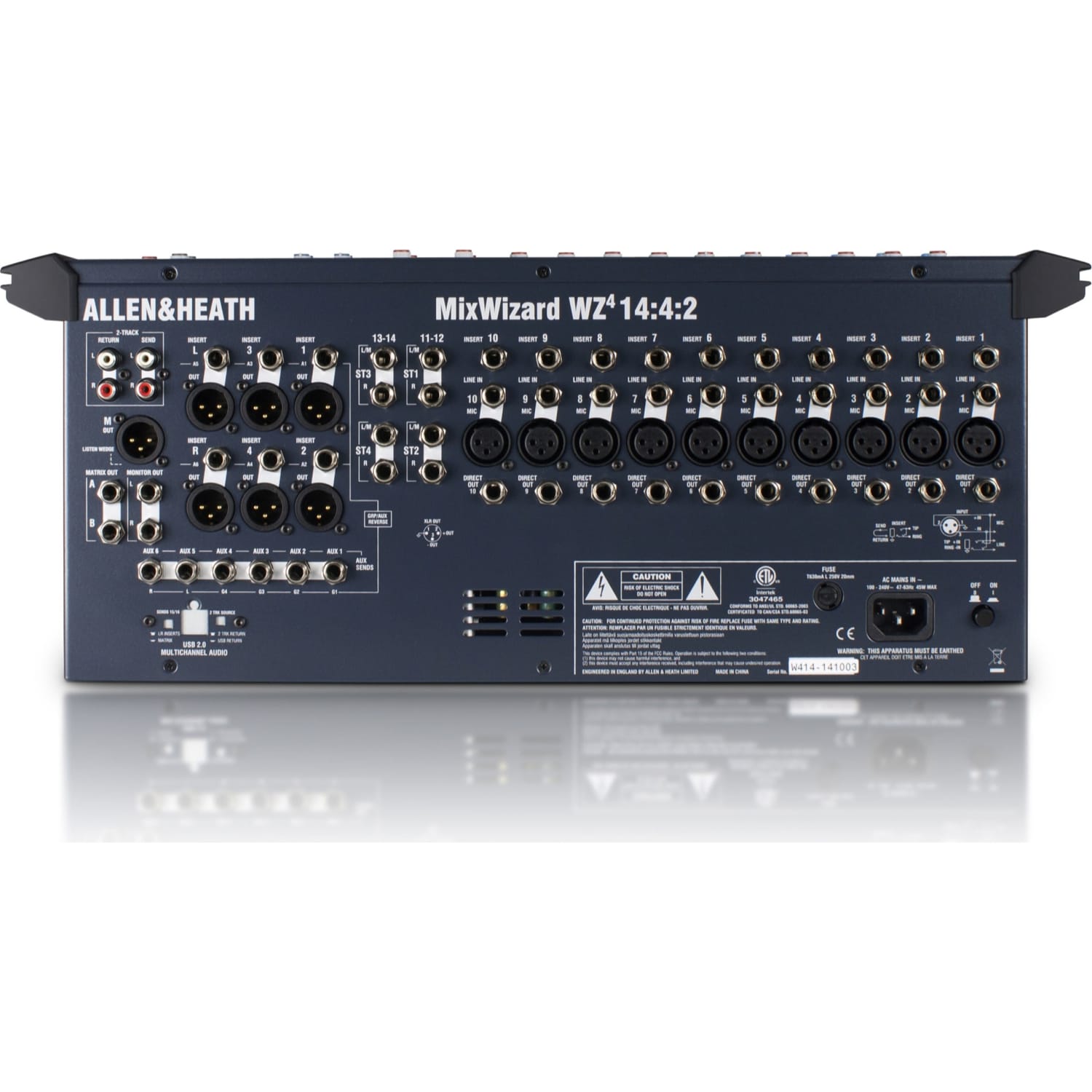

• I/O Connections
• Mono channel:
  XLR balanced pin 2 hot, -60 to +10 dBu, sensitivity
  TRS balanced tip hot, -40 to +10 dBu, sensitivity
  Pad out (MIC), 2k ohm
  Pad in (MIC or LINE), >10k ohm, -20 dB
  Max input level, +30 dBu
  XLR phantom power, +48 V, on/off
• Stereo channel:
  ST1, 3 TRS unbalanced >10k ohm, -16 to +20 dBu
  ST2, 4 TRS balanced >10k ohm, -16 to +20 dBu
• Talkback mic:
  XLR balanced pin 2 hot, -50 to -10 dBu, sensitivity
  Phantom power, internal jumper, +48 V
• 2-track return: RCA phono, unbalanced >4k ohm, -8 to +4 dBu
• 2-track send: RCA phono, unbalanced < 1k ohm, -2 dBu
• Inserts:
  Channel TRS, tip send, ring return, 0 dBu
  Output TRS, tip send, ring return, -2 dBu
• L, R, M outputs: XLR balanced pin 2 hot, <75 ohm, +4 dBu, +26 dBu max
• Group (aux) out: XLR balanced pin 2 hot, <75 ohm, +4 dBu, +26 dBu max
• Aux 1-6 output:
  TRS impedance balanced, <75 ohm, -2 dBu, +21 dBu max
  Electronic balance option, <75 ohm, +4 dBu, +26 dBu max
• Direct out: TRS impedance balanced, <75 ohm, 0 dBu, +21 dBu max
• Matrix out:
  TRS impedance balanced, <75 ohm, -2 dBu, +21 dBu max
  Electronic balance option, <75 ohm, +4 dBu, +26 dBu max
• Headphones: TRS, tip L, ring R, 30 to 600 ohm headphones recommended
• Monitor output: TRS impedance balanced, <75 ohm, -2 dBu, +21 dBu max
• Lamp: 4-pin XLR, max 12 V 5 W lamp
• Mechanical
• Dimensions:
  20 x 20.9 x 7.7" (507 x 530 x 194 mm), (free standing)
  19 x 4.8 x 17.5" (483 x 122 x 444 mm), (rack mounted, 10U, underside connectors)
  19 x 7.6 x 19.6" (483 x 193 x 497 mm), (rack mounted, 11.2U, rear connectors)
• Shipping Weight: 35 lb (16 kg)
• Weight: 28 lb (13 kg)
