Allen & Heath AHM-32 32x32 Audio Matrix Processor with 12x12 I/O

32-in/32-out Audio Matrix Processor

With 32 zone outputs, echo cancelling and audio networking options, AHM-32 is ideal for multi-room installations in hospitality, corporate and education environments.

32x32 Processing Matrix
Flexible routing with configurable processing on all 32 outputs.

12x12 Local Analogue I/O

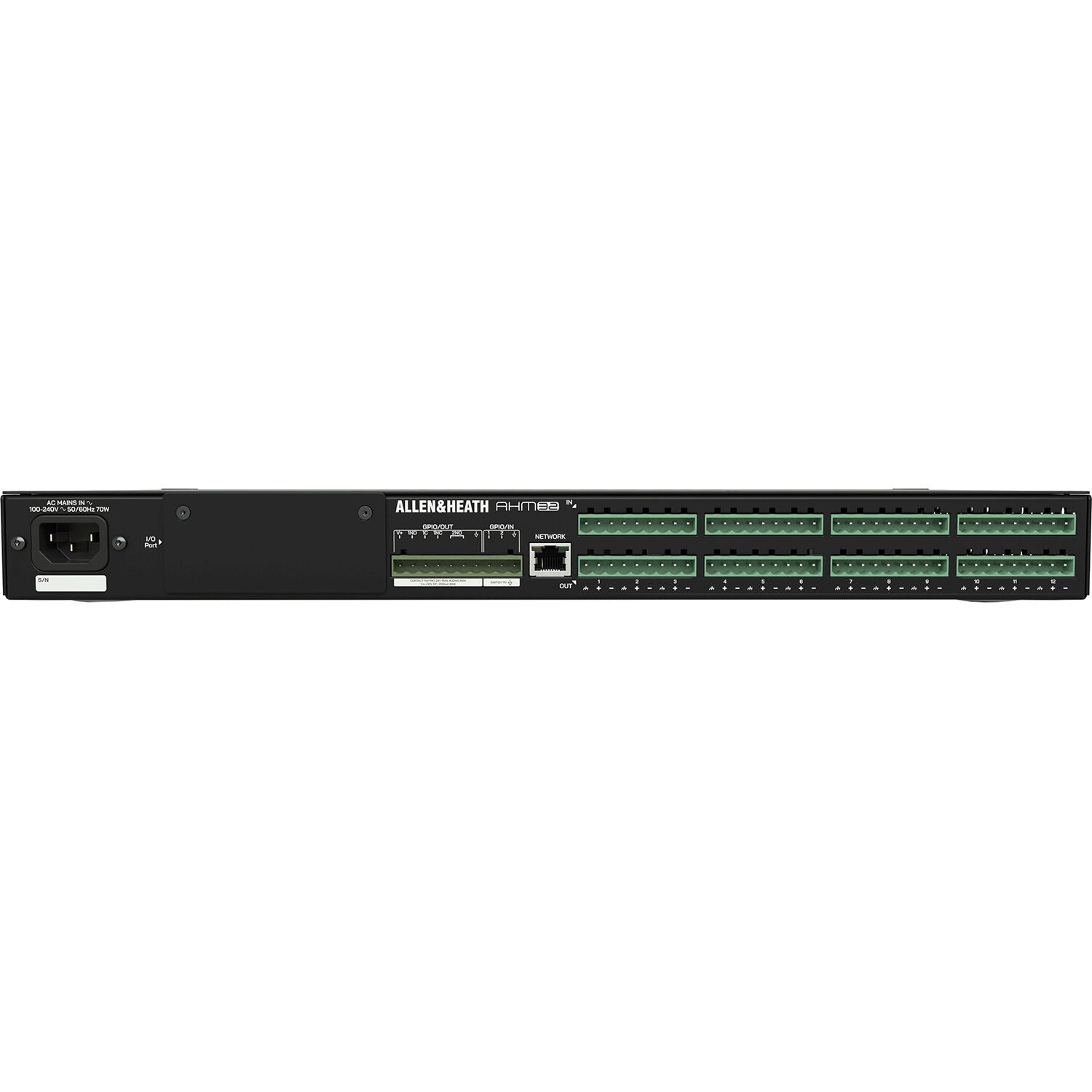

12x mic/line inputs and 12x relay protected line outputs on Phoenix connectors.

Audio Networking I/O Port
Card options include Dante, MADI, Waves and SLink.

Sound Management Tools

• 4x Automatic Mic Mixers

• ANC (Ambient Noise Compensation)

• Priority Ducking

• 8-band PEQ, dynamics and delay on every input and zone

• Speaker processing with x-over filter, delay, limiter and PEQ


Always In Control

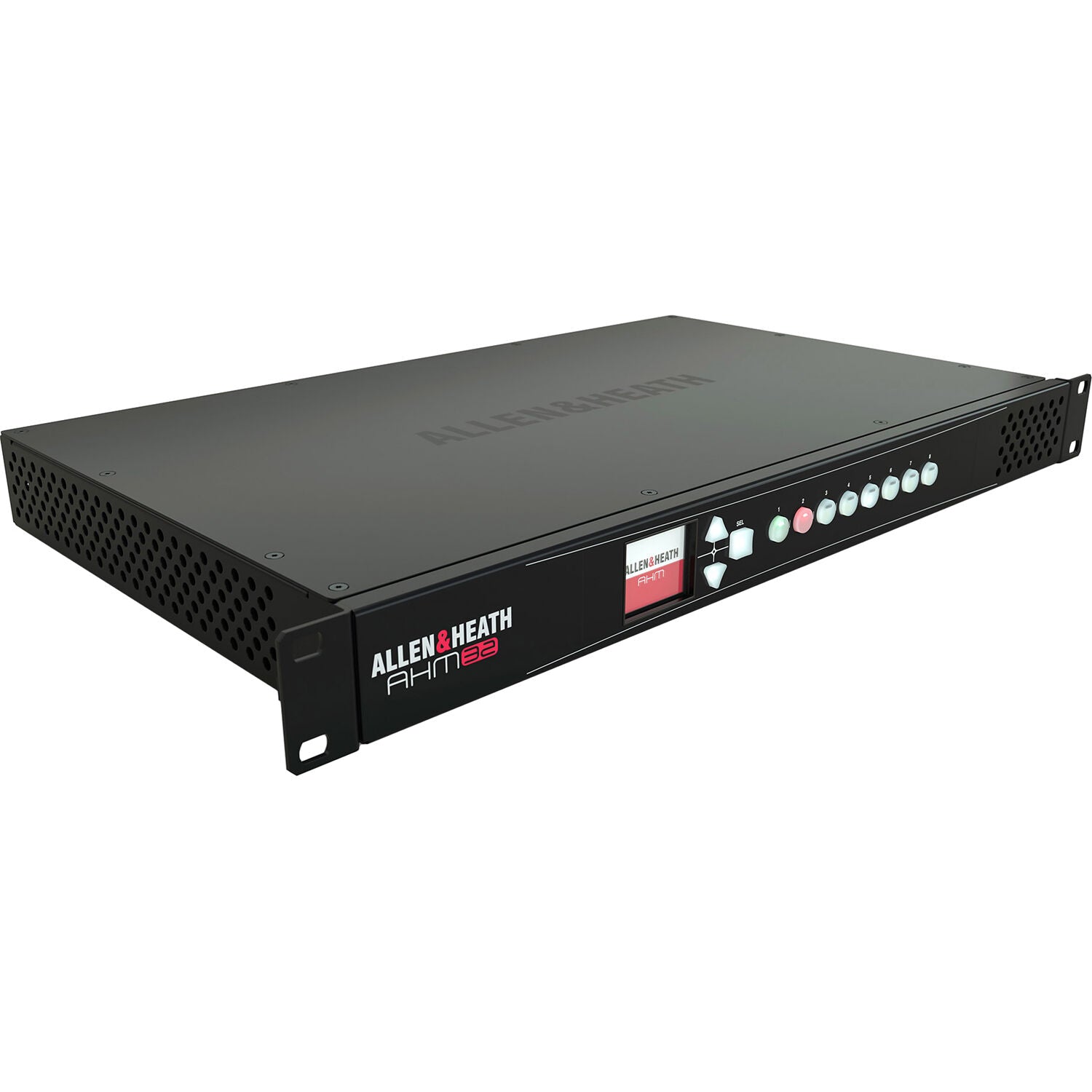

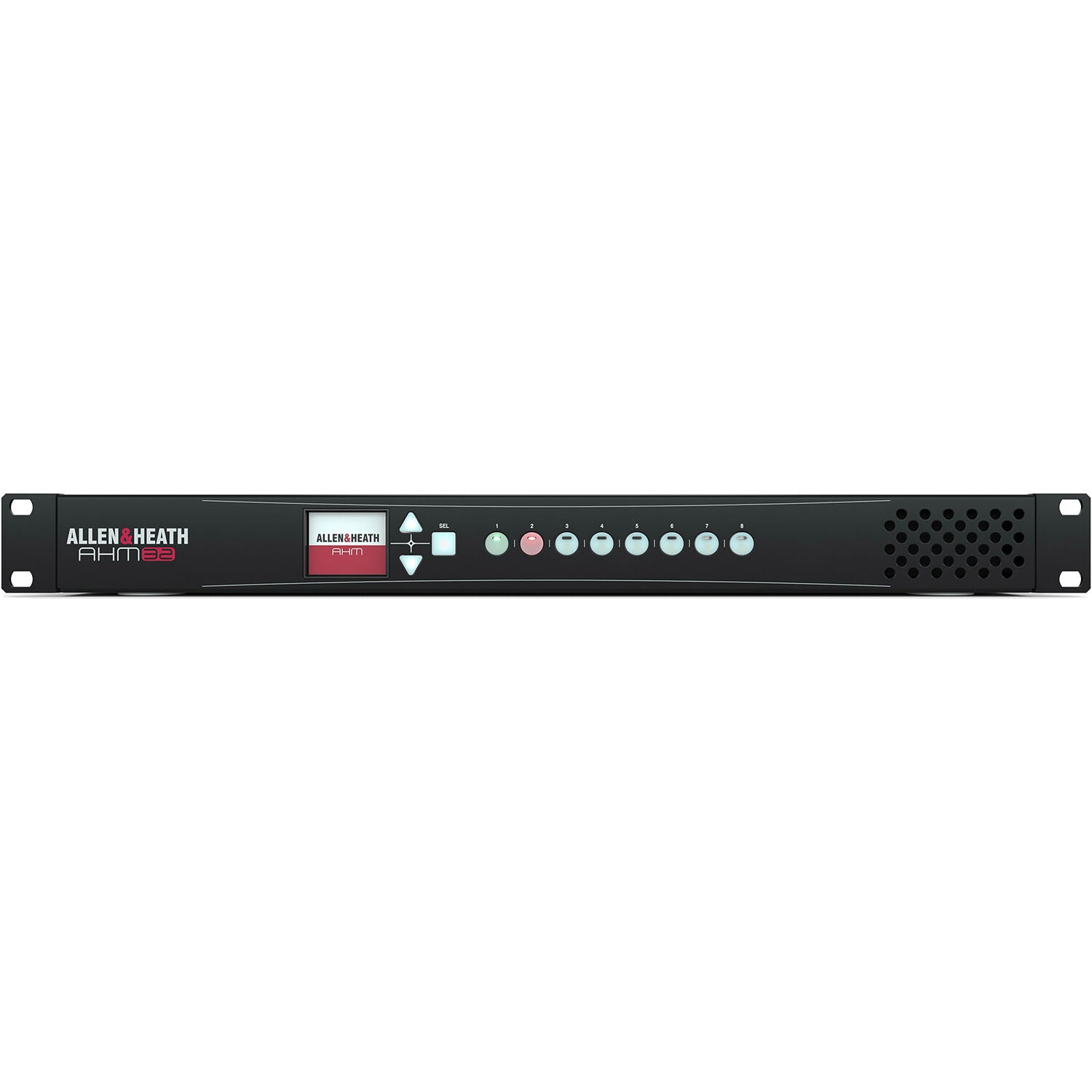

In addition to remote controllers, GPIO and 3rd party integration, AHM-32 has a front panel screen and 8x programmable SoftKeys for intuitive volume control, source select, preset recall and more.

Features

• 32x32 Processing Matrix

• 12x12 Local Analogue I/O

• I/O Port for Audio Networking (Up to 128x128)

• Dante 96kHz Option Card (AES67 and DDM ready)

• SLink 128x128 Option Card for Audio Expansion

• 32 Configurable Processing Outputs - Mono / Stereo Zones or Speaker Processing

• 96kHz FPGA Core With Ultra-low Latency

• Front Panel Screen and Navigation

• 8x SoftKeys

• Compatible With IP1, IP6, IP8 Remote Controllers

• 2x2 Local GPIO Plus Networkable GPIO Interface

• TCP/IP Protocol for Third Party Integration

• Crestron, AMX and Extron Drivers

• Mac / Windows System Manager Software

• Custom Control app and Editor for BYOD

• 16 User Profiles

• Integrated Stereo Playback

• Event Scheduler
