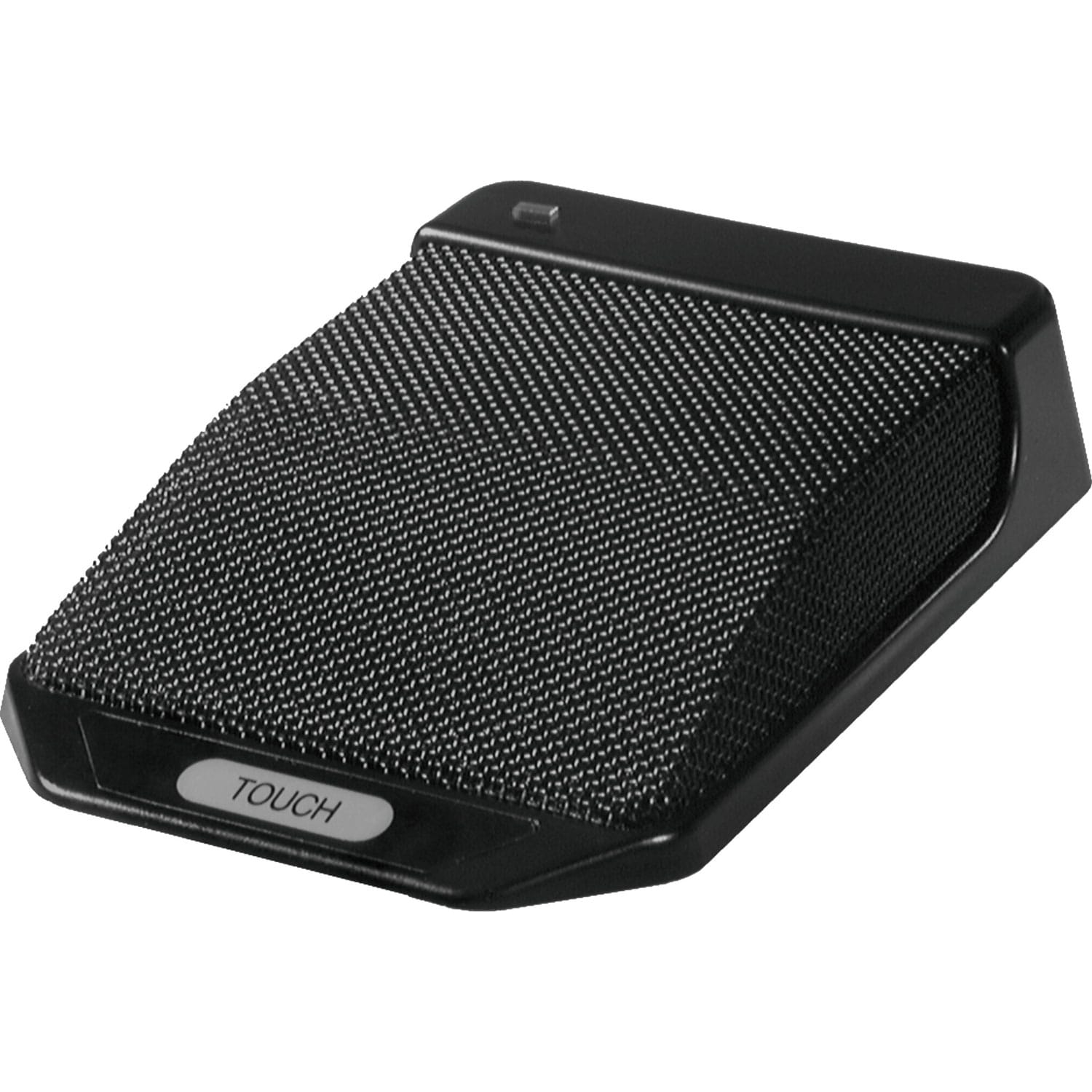

AKG PCC170SW Boundary Layer Microphone with Switch

Phase Coherent Supercardioid Boundary Microphone with 3 Mode Switch

TAKING CARE OF BUSINESS for conference and house-of-worship applications
The PCC170 and the PCC170SW are professional boundary layer microphones with supercardioid polar pattern to minimize background noise and feedback. The microphones are designed for use on boardroom tables or lecterns. Both microphones provide a bass-tilt switch, allowing the user to tailor the low-end response and reduce subsonic noise. The included RFI suppression ensures trouble-free operation even with active cell phones nearby.

The PCC170SW has a silent-operating programmable membrane switch that can be configured for touch on/off, momentary on or momentary off. For easy installation, both microphones offer an XLR connector and a detachable cable.

Features:

• Supercardioid polar pattern offers high gain before feedback
• PCC (Phase Coherent Cardioid) technology for optimum speech intelligibility
• Three-position bass-tilt switch for optimized suppression of subsonic noise
• Silent-operating on/off switch (PCC170SW only) to reduce the number of simultaneously open mics
• Detachable cable easy to install and service

Specifications:

• General
• Audio Frequency bandwidth: 50 to 20000 Hz
• Sensitivity: 22 mV/Pa
• Equivalent Noise Level: 22 dB-A
• Signal to Noise: 72 dB-A
• Polar Patterns
• Supercardioid
• Powering Interface
• Voltage: 12 to 48 V
• Audio Output
• Type: Switchcraft TB3M
• Gender: Male
• Contacts: 3-pin
• Design
• Finish: black
• Dimensions / Weight
• Length: 123 mm
• Width: 86 mm
• Height: 23 mm
