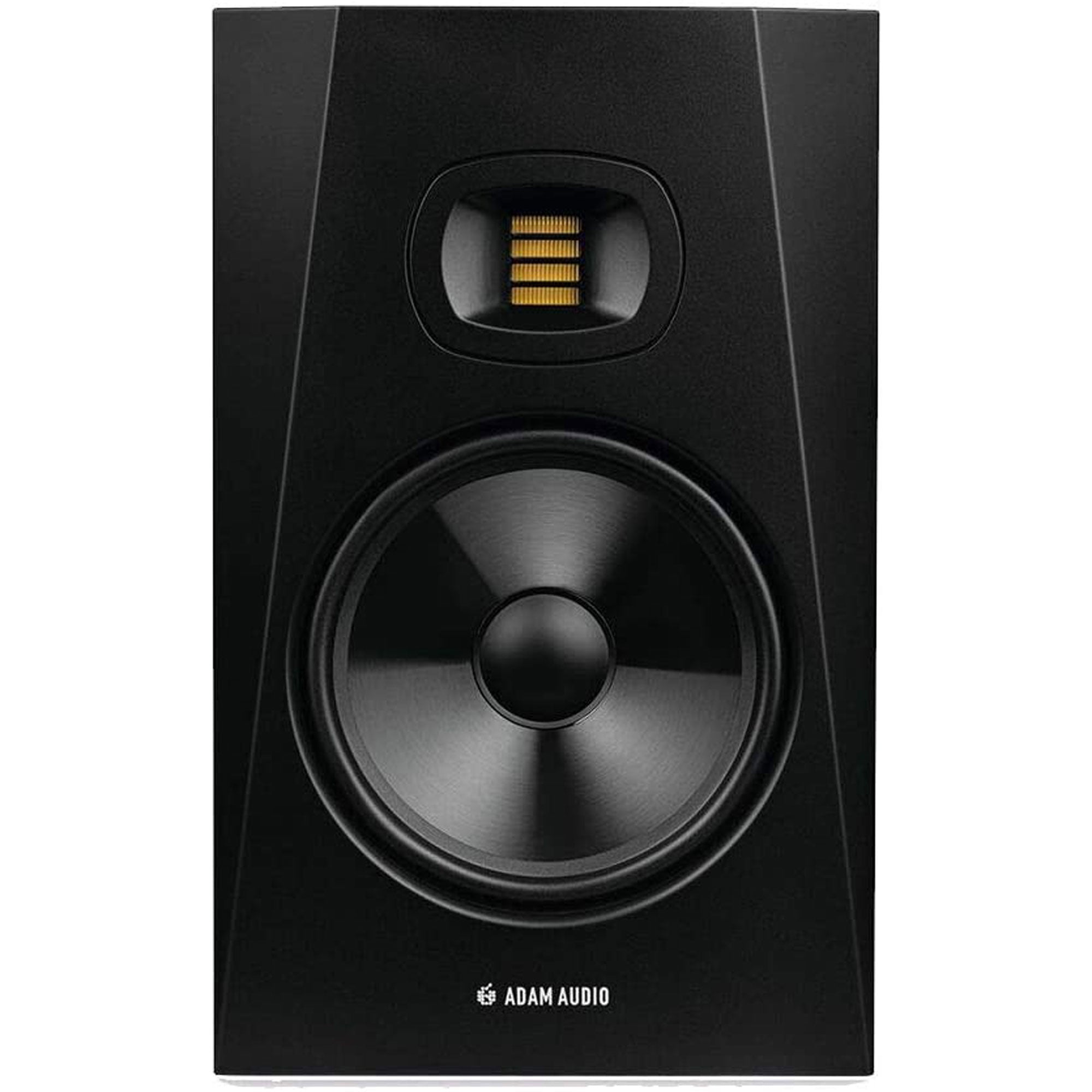

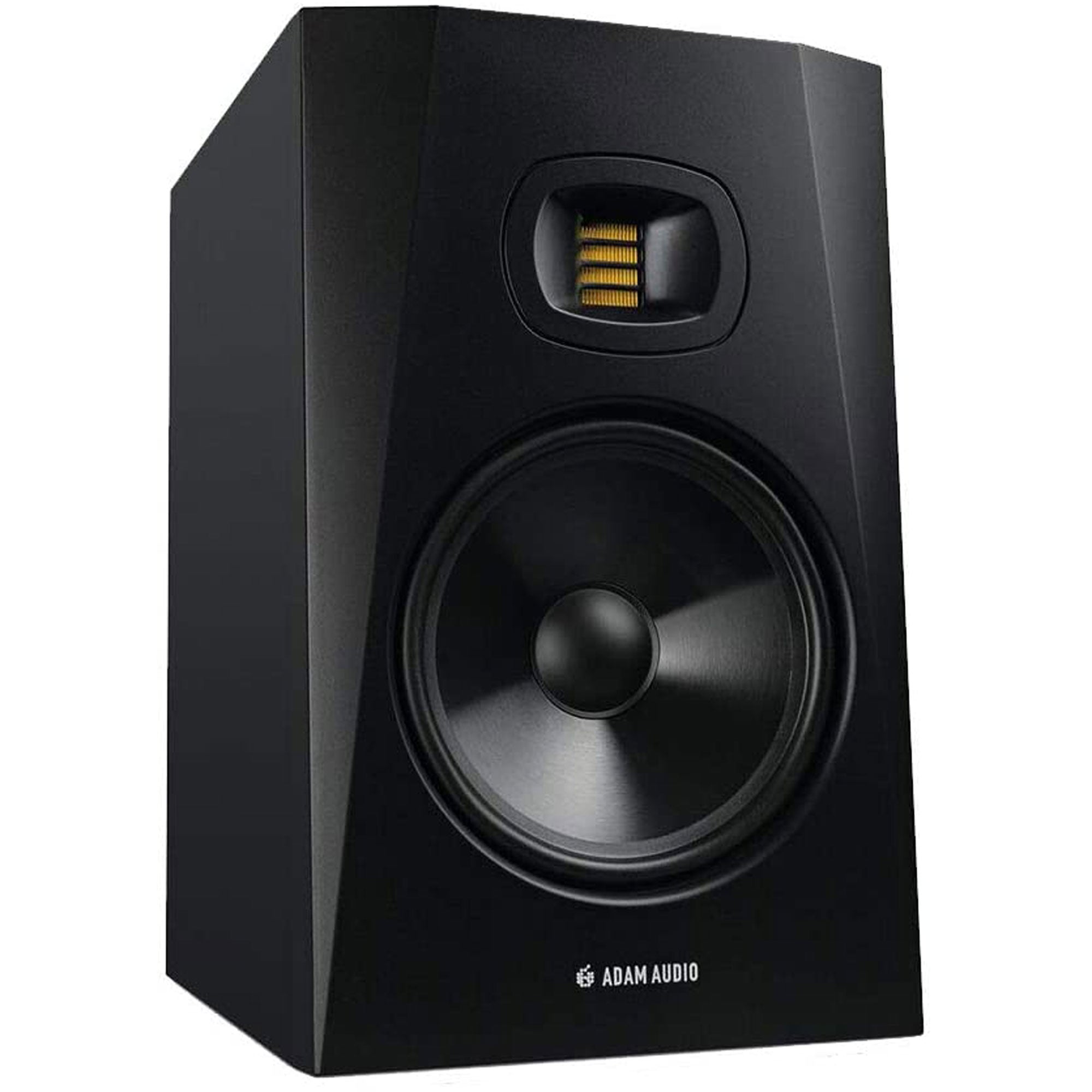

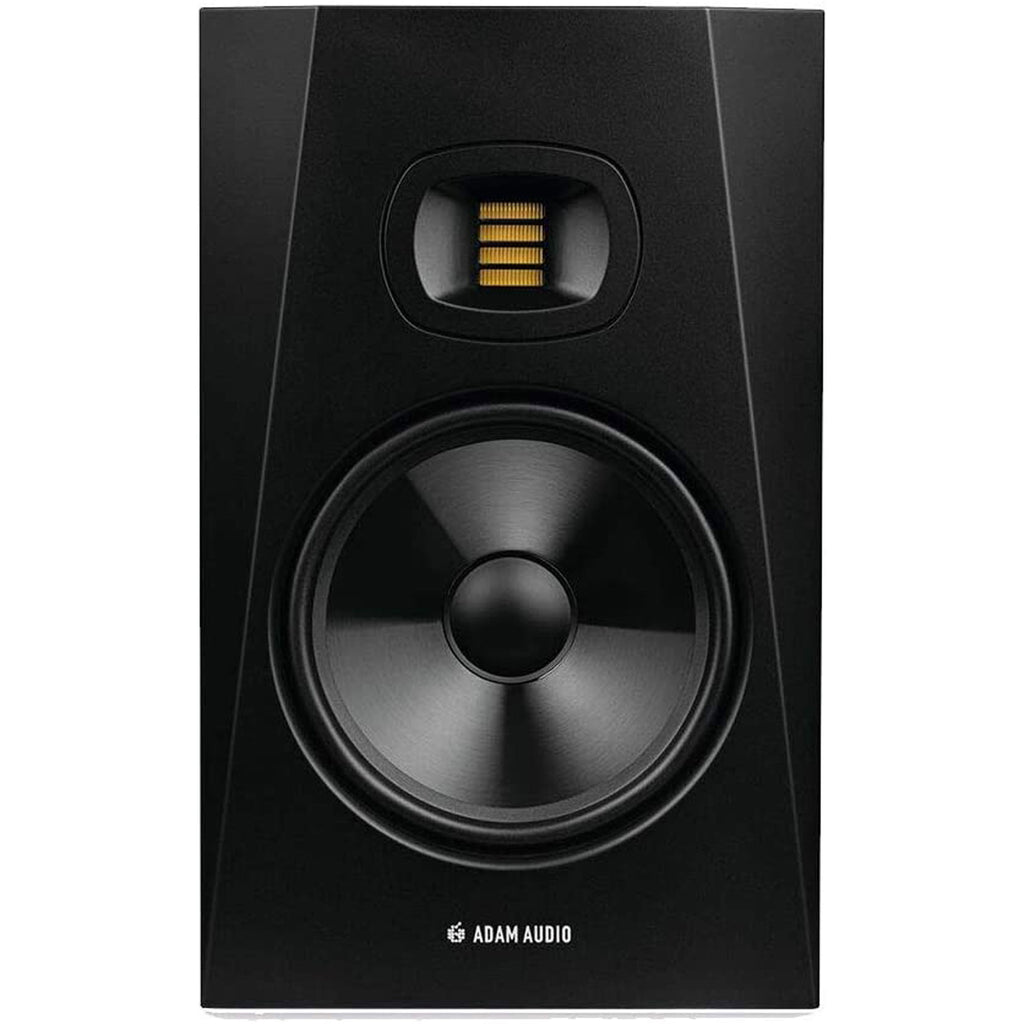

Adam Audio T8V T-Series 8" Active Nearfield Monitor (Single)

Active Vertical 2-way Nearfield Monitor with 70W 8" Woofer and 20W U-ART Accelerated-Ribbon Tweeter

The T8V is an affordable, professional 2-way powered studio monitor with an 8" woofer and ADAM Audio's latest addition to the T Series. Designed around the same technology, features and build quality as its smaller siblings, the T8V provides best-in-class characteristics and sound performance.

The T8V impresses with a multitude of features that bring real benefits to the user: The U-ART tweeter's 4:1 velocity transfer ratio, in combination with the new Class D amplifiers' high dynamic range, yield respective max. peak SPL of 118 dB per pair. The tweeter, which extends up to 25 kHz, works as a team with the HPS Waveguide. This allows an optimal radiation of the high frequencies, which means the advantage of a more controlled, larger usable sweet spot during monitoring. With a bass extension down to 33 Hz, the T8V is especially suitable for users who produce bass-heavy music.

The T8V is the perfect studio speaker for those who have always wanted to work with an 8" monitor from ADAM Audio, but where budgets have been insufficient. The 5-year warranty gives users additional security and the certainty of having purchased a quality product.

Features:

• U-ART 1.9" Accelerated Ribbon Tweeter with HPS Waveguide
• Polypropylene 8" woofer and rear-firing bass-reflex port
• Cumulated Amp. Power RMS: 90 W
• Frequency Response: 33 Hz - 25 kHz
• Max. SPL Per Pair at 1 m: ≥118 dB

Specifications:

• WOOFER
• Number: 1
• Basket Ø: 8" (203 mm)
• Cone Material: Polypropylene
• TWEETER
• Number: 1
• Type: U-ART
• Diaphragm Area: 4 inch² (2420 mm²)
• Equiv. Diaphragm Ø: 1.9" (48 mm)
• Velocity Transform Ratio: 4:1
• Diaphragm Weight: 0.17 g
• Waveguide: HPS
• BUILT-IN AMPLIFIERS
• Number: 2
• Woofer: 1
• Type: PWM
• Amp. Power RMS: 70 W
• Tweeter: 1
• Type: PWM
• Amp. Power RMS: 20 W
• CONTROL OPTIONS
• Input Sensitivity: Switchable +4 dBu / -10 dBV
• Gain: Yes
• High-Shelf: - 2 dB, 0 dB, +2 dB
• Low-Shelf: - 2 dB, 0 dB, +2 dB
• INPUT CONNECTORS
• Analog: XLR, RCA
• Input Impedance: 10 kOhm / 20 kOhm

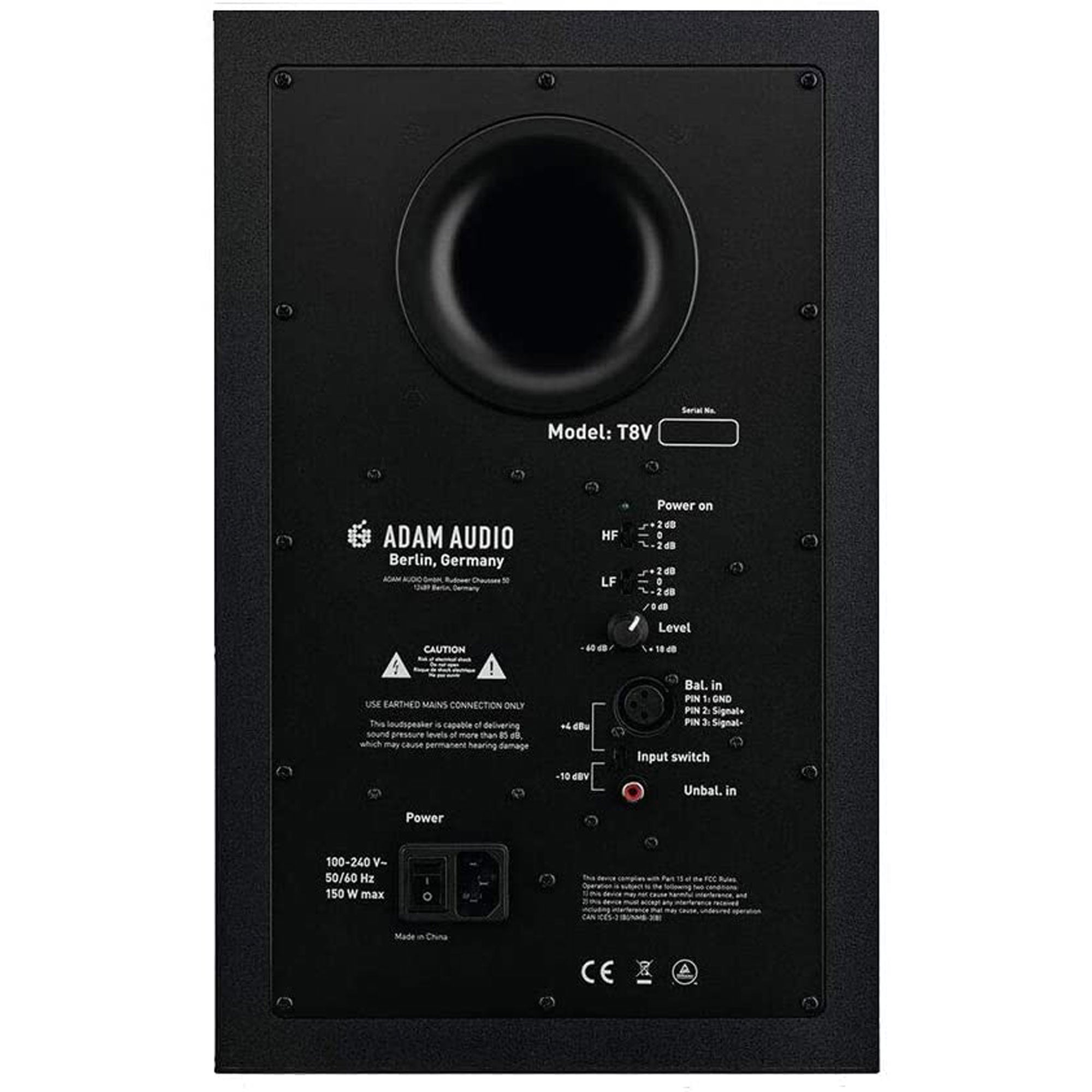

• GENERAL DATA
• Panel: Rear
• Frequency Response: 33 Hz - 25 kHz
• THD > 80 Hz: 0.5 %
• Max. SPL per pair at 1 m: ≥118 dB
• Crossover Frequency: 2.6 kHz
• Max. Power Consumption: 150 W
• Weight: 21.6 lb (9.8 kg)
• Height x Width x Depth: 15.8" x 9.8 " x 13.2" (400 mm x 250 mm x 335 mm)
• Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
• Delivery Contents: Power cord, Quick Start Guide
