Whirlwind WFF8x8x2.5B Flush Mount Wall Frame for 8" x 8" x 6" Recessed Electrical Box

Flush Mount Wall Frame for 8" x 8" x 6" Recessed Electrical Box

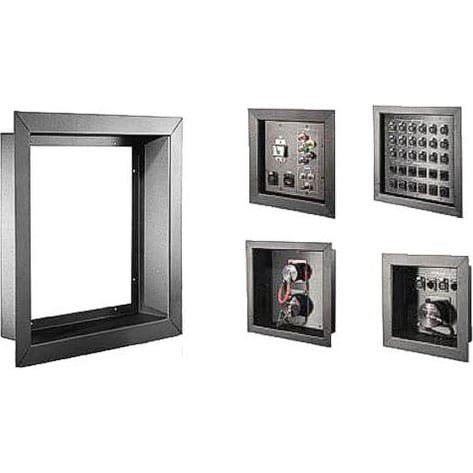

These patent-pending wall frame assemblies with recessed panels provide greater protection for connectors while enhancing the appearance of your installation. Two sizes fit 8" x 8" and 12" x 12" standard NEMA type 1 electrical backboxes and there are two standard connector panel recess depths, 1" and 2.5".

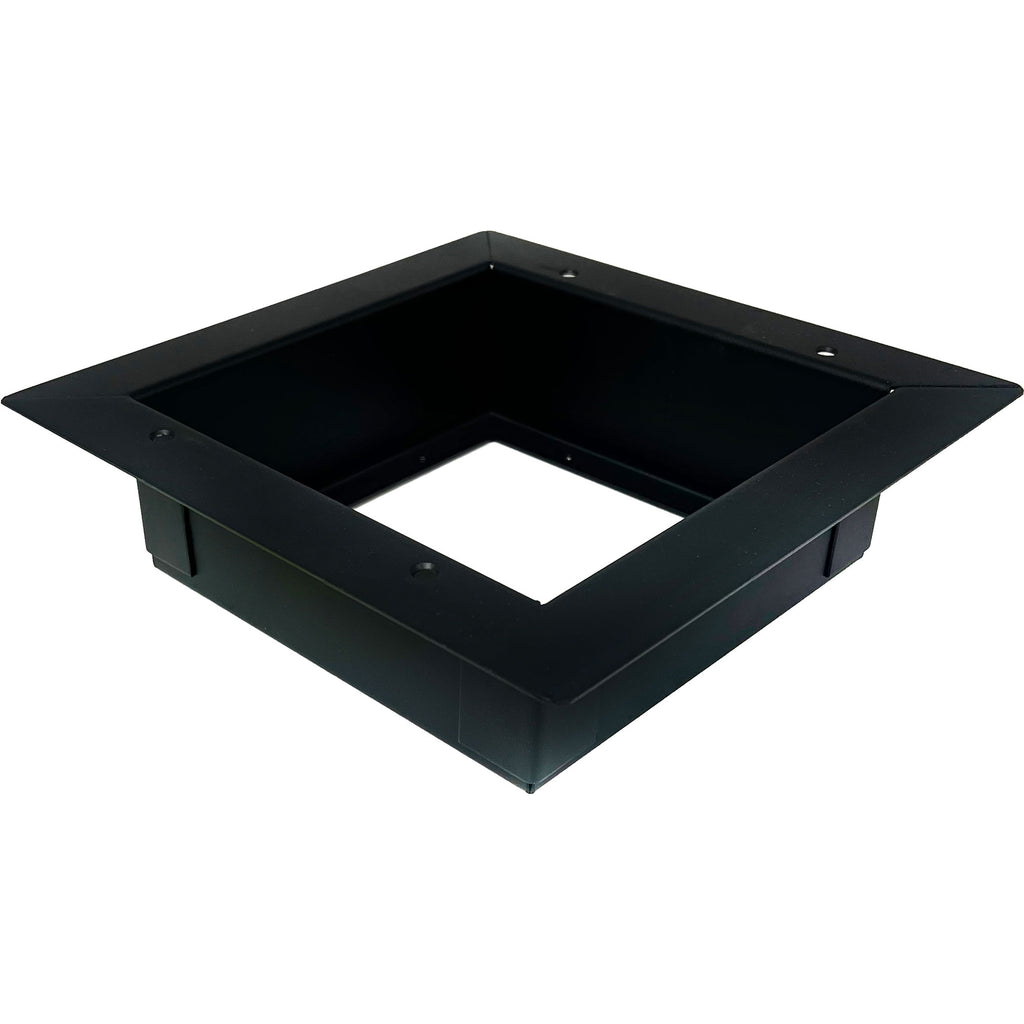

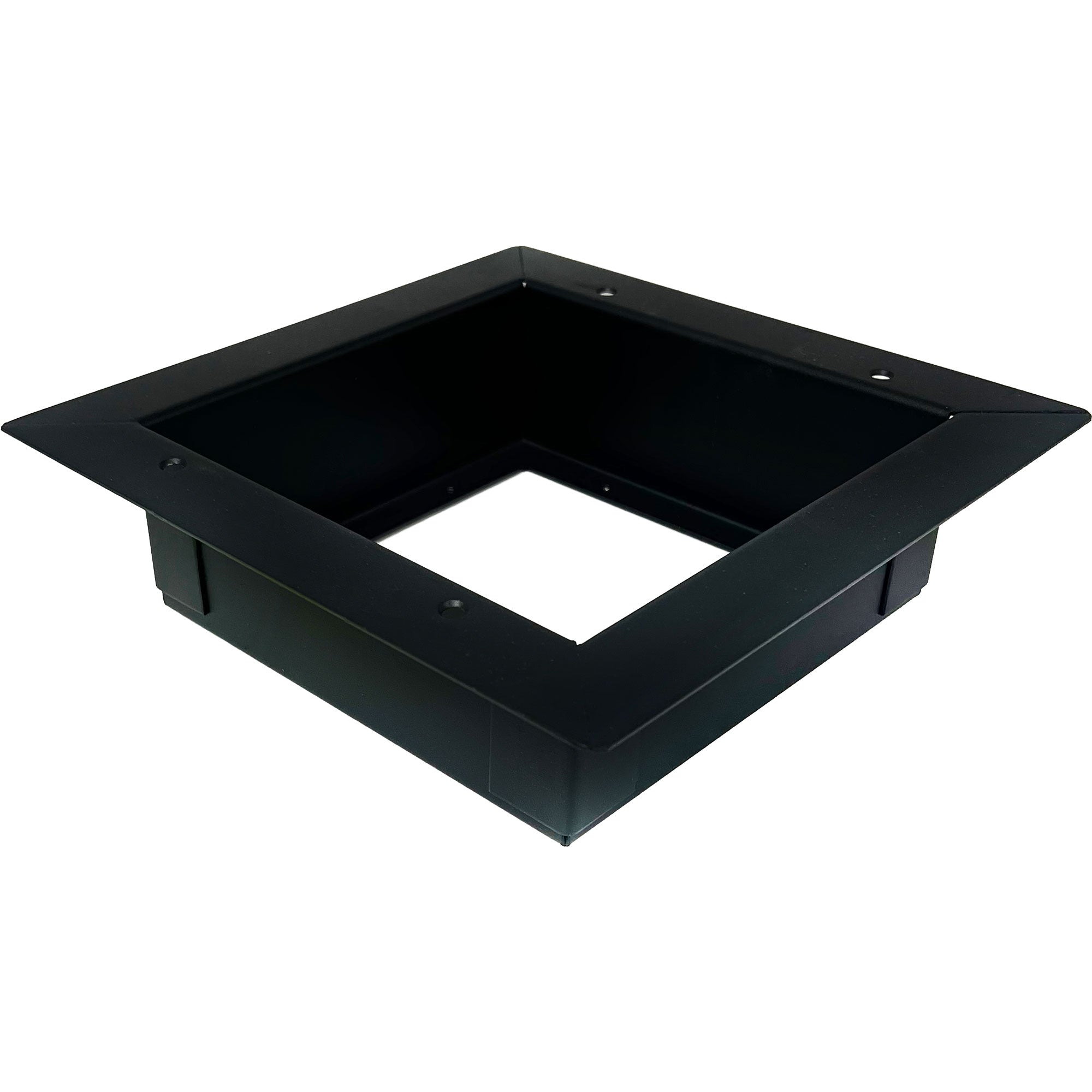

The flush mount version (WFF series) mounts "in the wall" and its mounting flanges extend one-half inch beyond the edge of the back box on all four sides to provide a visually appealing trim ring effect to the finished wall.

The surface mount version (WFS series) mounts "on the wall" and its mounting flanges are the same dimensions as the corresponding backbox. Optional Whirlwind black powder coated backboxes for the surface mount versions (as pictured above) are available for a finished look as opposed to a NEMA type electrical box, see table below.

Frame finish is black powdercoat. Custom finishes available upon request.

Connector mounting insert panels (WFI_ _ _ ) attach to the frames and can be custom punched, engraved and loaded to accommodate any installation requirement. Finish is black anodized aluminum.

Other sizes of Wall Frames are available upon request.

Specifications:

• Wall Frame Model # and Specs
• Frame Part #: WFS8x8x1B
  Dimensions: 8" X 8" X 1"
  Backbox (optional, not included): fits 8" X 8" X 4" surface-mounted electrical box
• Frame Part #: WFS8x8x2.5B
  Dimensions: 8" X 8" X 2.5"
  Backbox (optional, not included): fits 8" X 8" X 6" surface-mounted electrical box
• Frame Part #: WFF8x8x1B
  Dimensions: 9" X 9" X 1"
  Backbox (optional, not included): fits 8" X 8" X 4" recessed electrical box
• Frame Part #: WFF8x8x2.5B
  Dimensions: 9" X 9" X 2.5"
  Backbox (optional, not included): fits 8" x 8" X 6" recessed electrical box
• Frame Part #: WFS12x12x1B
  Dimensions: 12" X 12" X 1"
  Backbox (optional, not included): fits 12" X 12" X 4" surface-mounted electrical box
• Frame Part #: WFS12x12x2.5B
  Dimensions: 12" X 12" X 2.5"
  Backbox (optional, not included): fits 12" X 12" X 6" surface-mounted electrical box
• Frame Part #: WFF12x12x1B
  Dimensions: 13"x13"x1"
  Backbox (optional, not included): fits 12" X 12" X 4" recessed electrical box
• Frame Part #: WFF12x12x2.5B
  Dimensions: 13" X 13" X 2.5"
  Backbox (optional, not included): fits 12" X 12" X 6" recessed electrical box
• Insert Panel Model # and Specs
• Insert Plate Part #: WFI8X8B
  Dimensions: 6.5" X 6.5" 5.5" sq. usable area
  Fits These Frames: WFF8X8 and WFS8X8 series frames
• Insert Plate Part #: WFI12X12B
  Dimensions: 10.5" X 10.5" 9.5" sq. usable area
  Fits These Frames: WFF12X12 and WFS12X12 series frames
• Optional Whirlwind Black Powder Coated Backbox For Surface Mount Frames
• Backbox Part #: BB8X8X4B
  Dimensions: 8" X 8" X 4"
  Fits These Frames: WFS8X8X1B; WFS8X8X2.5B
• Backbox Part #: BB12X12X4B
  Dimensions: 12" X 12" X 4"
  Fits These Frames: WFS12X12X1B; WFS12X12X2.5B
• Optional NEMA Gray Electrical Backbox For Flush Mount Frames
• Backbox Part #: ASE8X8X4
  Dimensions: 8" X 8" X 4"
  Fits These Frames: WFF8X8X1B; WFF8X8X2.5B
• Backbox Part #: ASE12X12X4
  Dimensions: 12" X 12" X 4"
  Fits These Frames: WFF12X12X1B; WFF12X8X2.5B
