Key Features
- 2x 22 AWG Shielded
- 2x 18 AWG Unshielded
- 24 AWG Drain Wire
- Bare Copper Conductors
- Sold by the Foot
- Shipped in a Continuous Length
Description

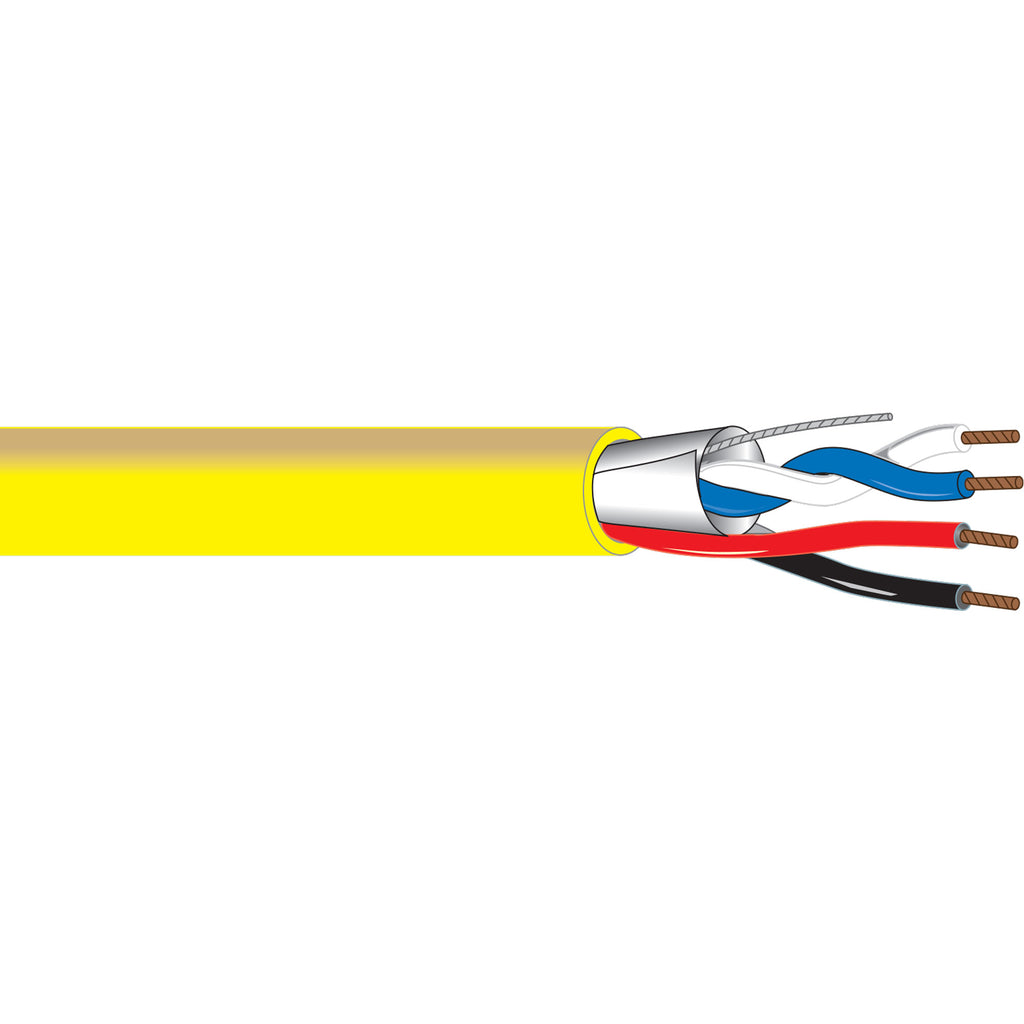

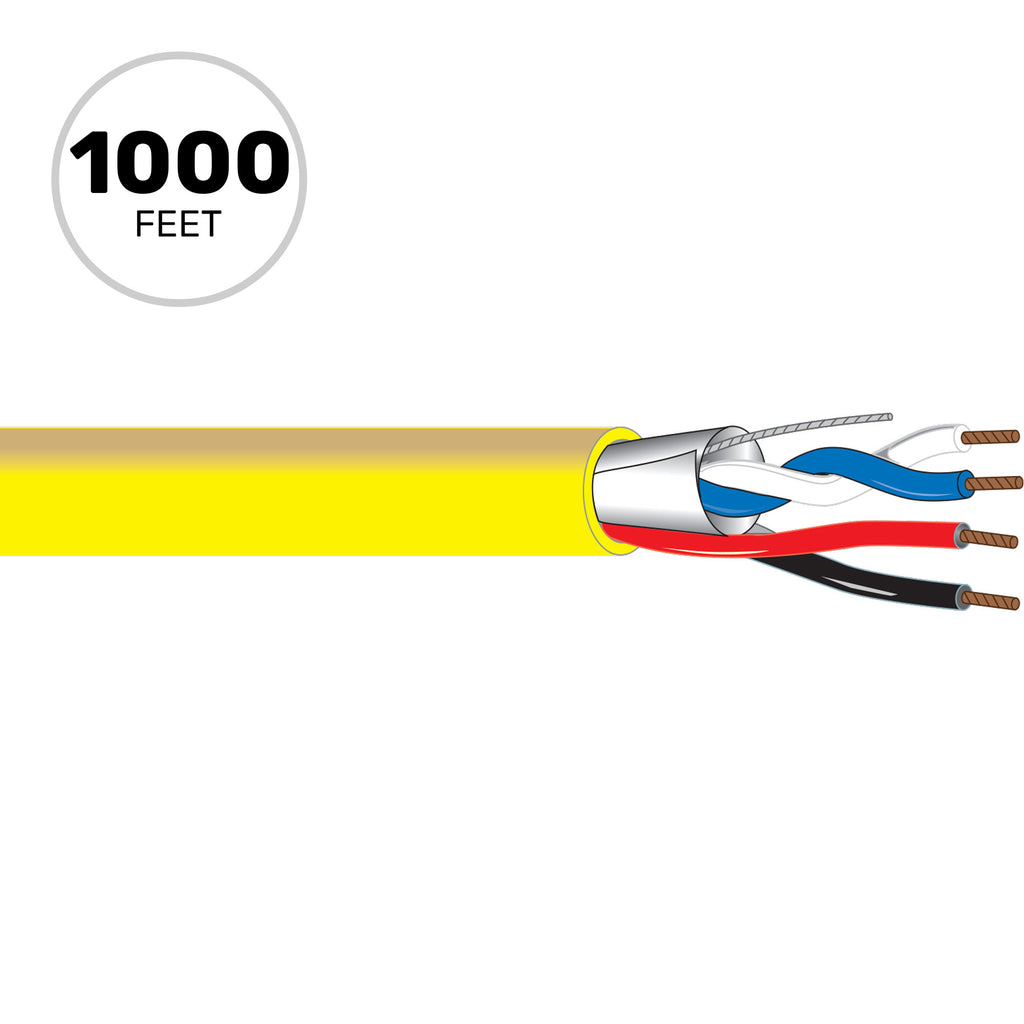

22/2 Shielded, 18/2 Unshielded Stranded Media Control Data+Power Cable - Yellow - Full 1000' Spool
West Penn's 77350 media control cable is/features 22/2 Shielded, 18/2 Unshielded Stranded bare copper conductors with an overall jacket.
Media Control Cable Data+Power CMR Media Control and Power Crestnet, Axlink
22/2 Shielded, 18/2 Unshielded Stranded bare copper conductors with an overall jacket.
APPLICATION: Indoor data cable for: Home Control Systems, Intercom Systems, Security Systems, Sound, Audio.
Specifications:
- CONSTRUCTION & DIMENSIONS
- CONDUCTOR PARAMETER
- Number of Unshielded Conductors: 2
- Number of Shielded Pairs: 1
- AWG Size
Shielded: 22
Unshielded: 18 - Conductor Stranding
Shielded: 7x30
Unshielded: 7x26 - Conductor Type: Bare Copper
- Nominal DCR
Shielded: 17 Ohm/1000ft
Unshielded: 6.2 Ohm/1000ft - INSULATION PARAMETER
- Insulation Type
Shielded: Foam Polyethylene
Unshielded: Polypropylene - PP - Insulation Thickness:
Shielded: 0.25 in
Unshielded: 0.008 in - Insulation Color Code:
Shielded: 1. Blue 2. White
Unshielded: 1. Black 2. Red - SHIELDING PARAMETER
- Shield Type:
Shielded: Overall 100% Aluminum Foil
Unshielded: None - Drain Wire Type: Tinned Copper
- Drain Wire AWG: 24 AWG
- ELECTRICAL CHARACTERISTICS
- Nominal Impedance: 100 Ohm
- Nom. Cap. Between Conductors: 12.5 pF/ft
- Nom. Cap. Conductor to Shield: 22.5 pF/ft
- OVERALL CONSTRUCTION PARAMETERS
- Total Number of Conductors: 4
- Jacket Type: PVC
- Jacket Thickness: 0.30 in
- Nominal Cable O.D.: 0.255 in
- Plenum: No
- NEC UL Rating: CMR
- RoHS Compliant: Yes
- Pull Tension: 40 lbs
- Bend Radius: 2.295 in
- Cable Weight: 36 lbs
Details
- Manufacturer: West Penn
- MPN: 77350YE1000
- Model Number: 77350YE1000
- UPC:
