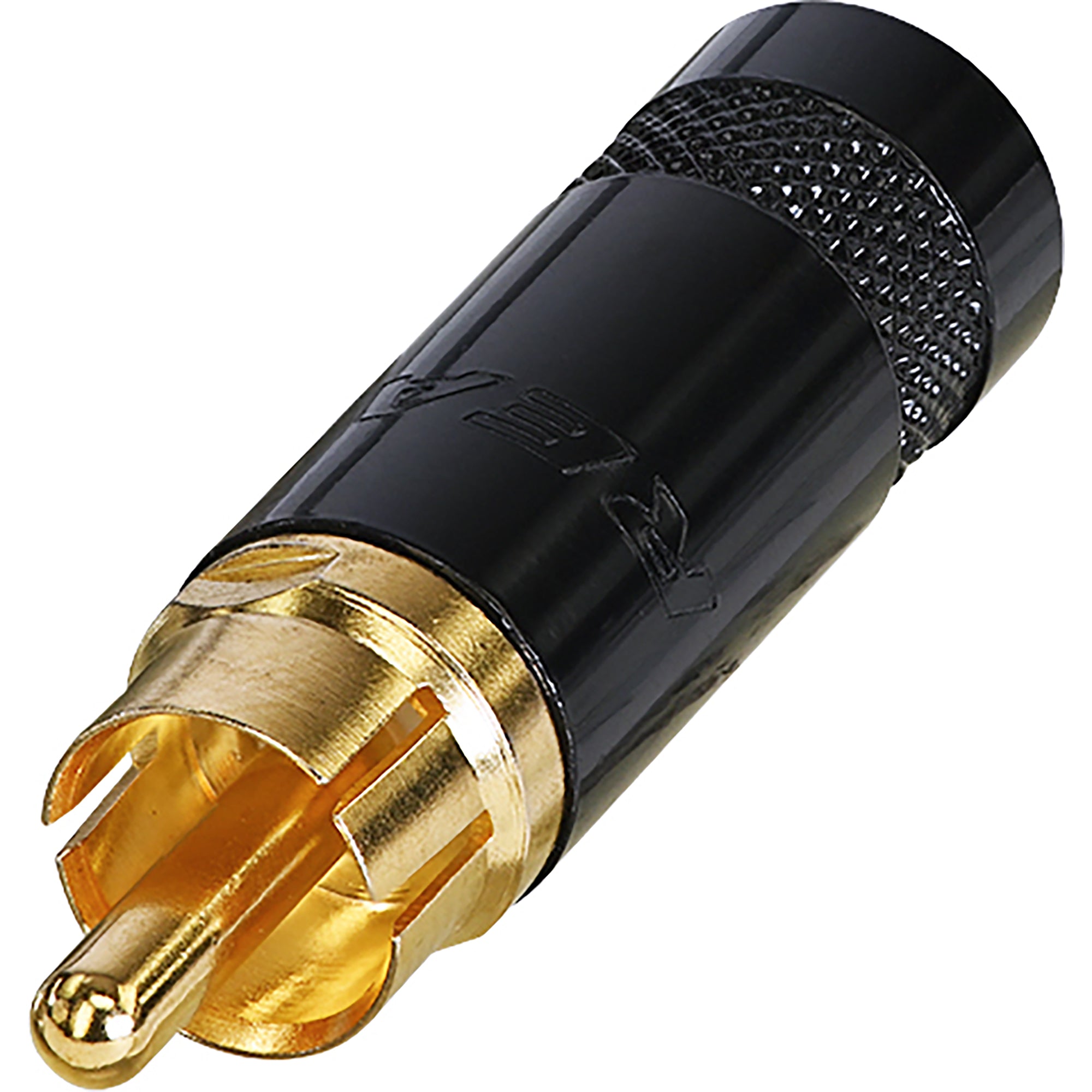

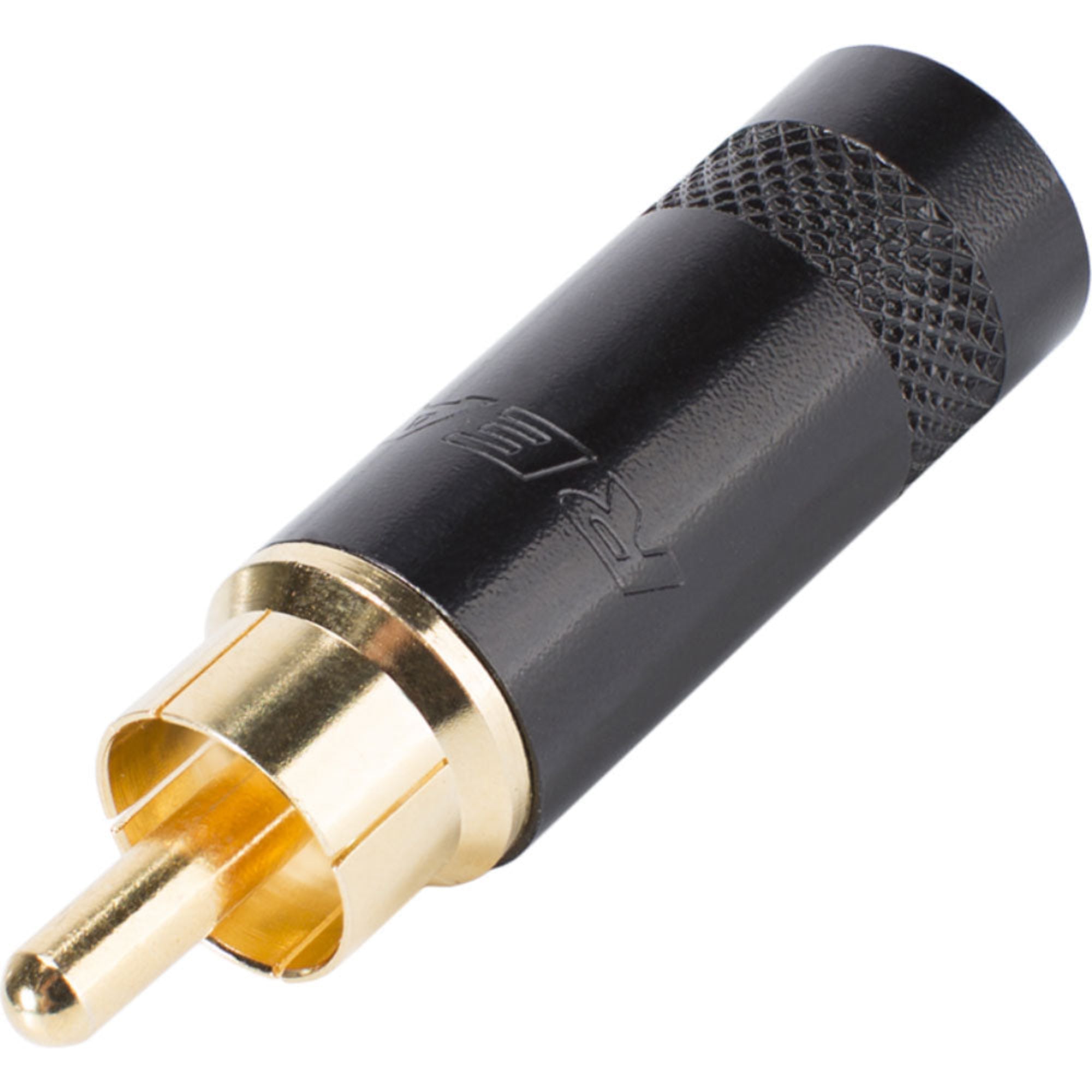

Neutrik Rean NYS352BG Male RCA Phono Plug (Black/Gold)

Male RCA Phono Plug, Cable End, Black Housing, Gold Contacts

RCA Phono plug, black plated shell and gold contacts

Feature heavy-duty machined brass construction with nickel plated shell and contacts. Accepts cable O.D. up to 6 mm (0.25").

Features:

• Heavy duty phono plug
• All metal construction
• Cable O.D. up to 6 mm (0.25")
• Cable clamp strain relief

Specifications:

• Product
• Title: NYS352B
• Electrical
• Dielectric strength: 0.5 kVdc
• Insulation resistance:>200 MΩ (Initial)
• Rated current: depends on mated connector
• Contact resistance: depends on mated connector
• Mechanical
• Cable O.D.: 7.2 mm
• Lifetime: > 1000 mating cycles
• Wiresize: 24 AWG
• Material
• Contact plating: Au
• Contacts: Brass (CuZn39Pb3)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black
• Strain relief: SnCe plated, crimp type
• Insulation: Thermoplastic
• Environmental
• Solderability: Complies with IEC 68-2-20
• Temperature range: -25 °C to +70 °C
