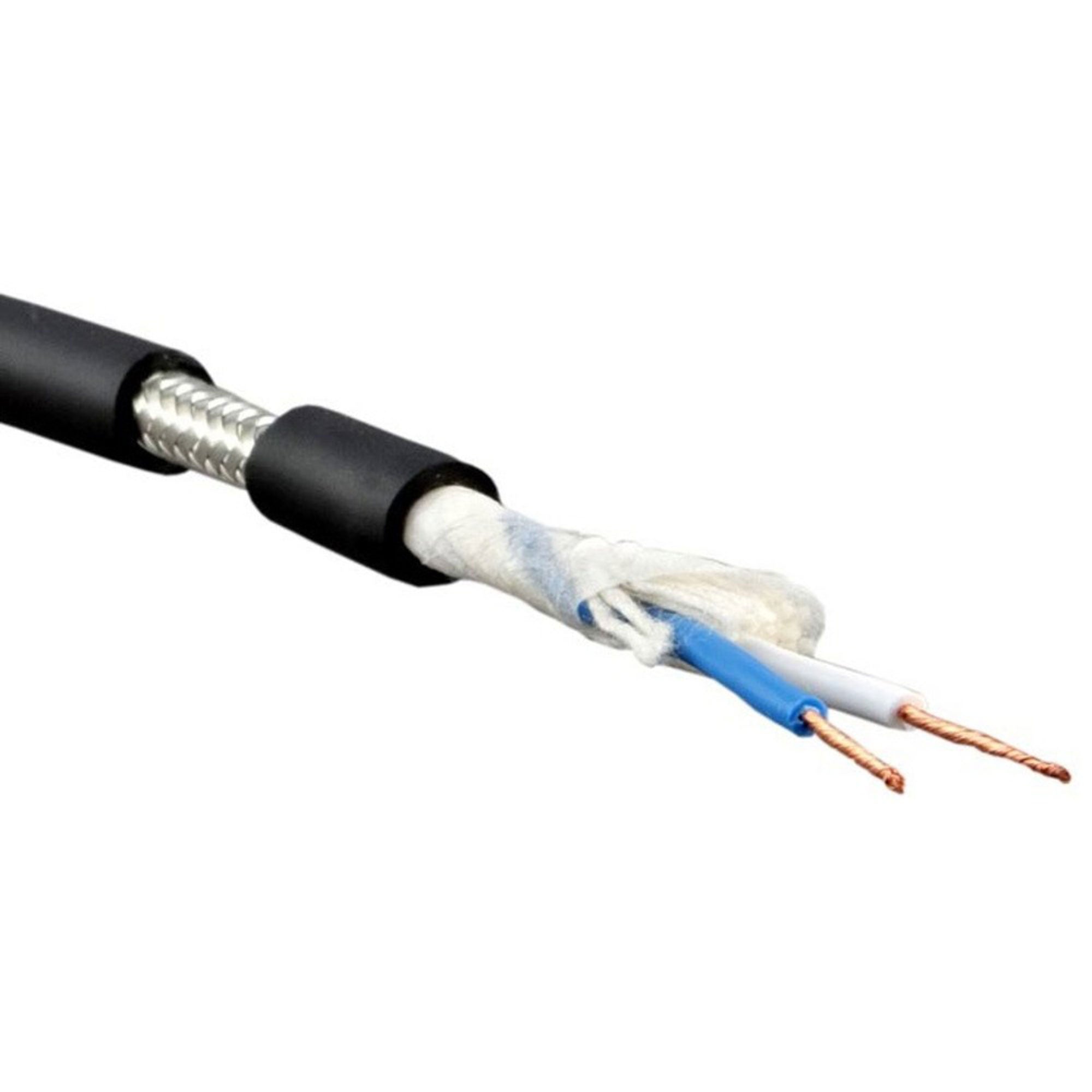

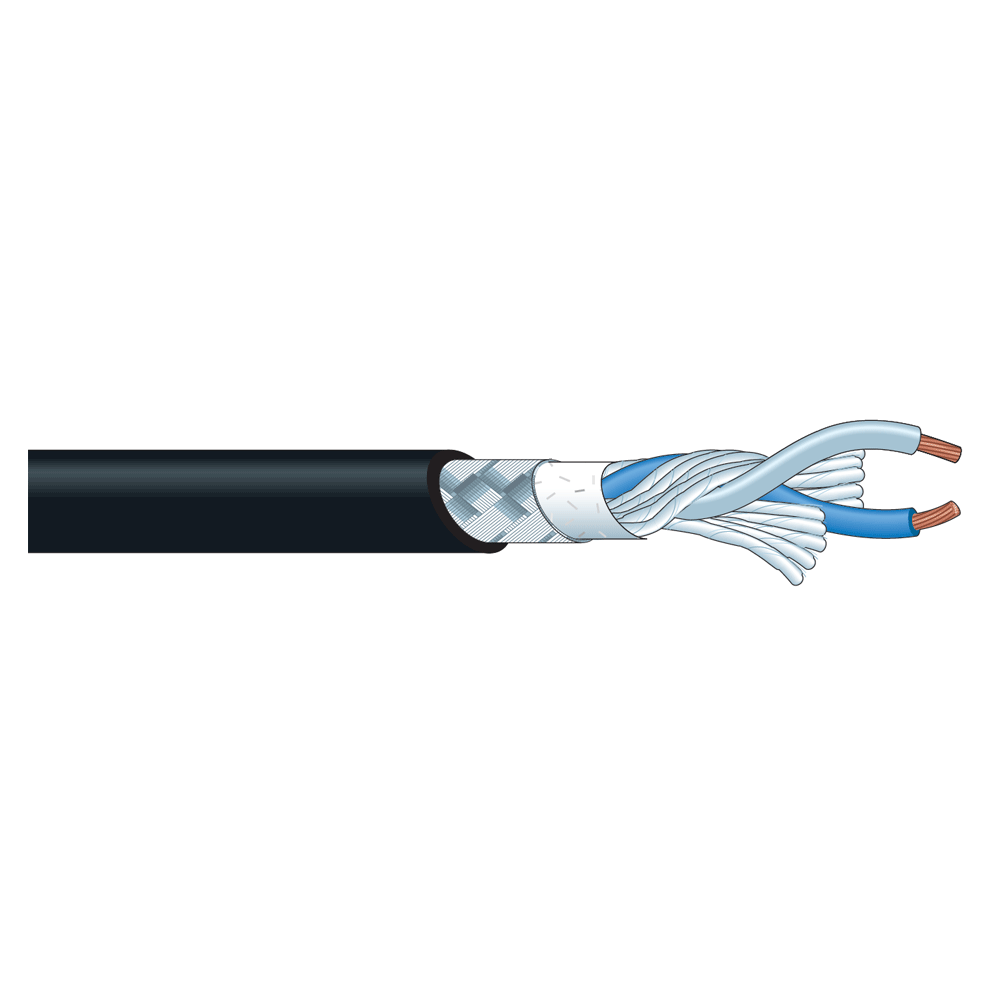

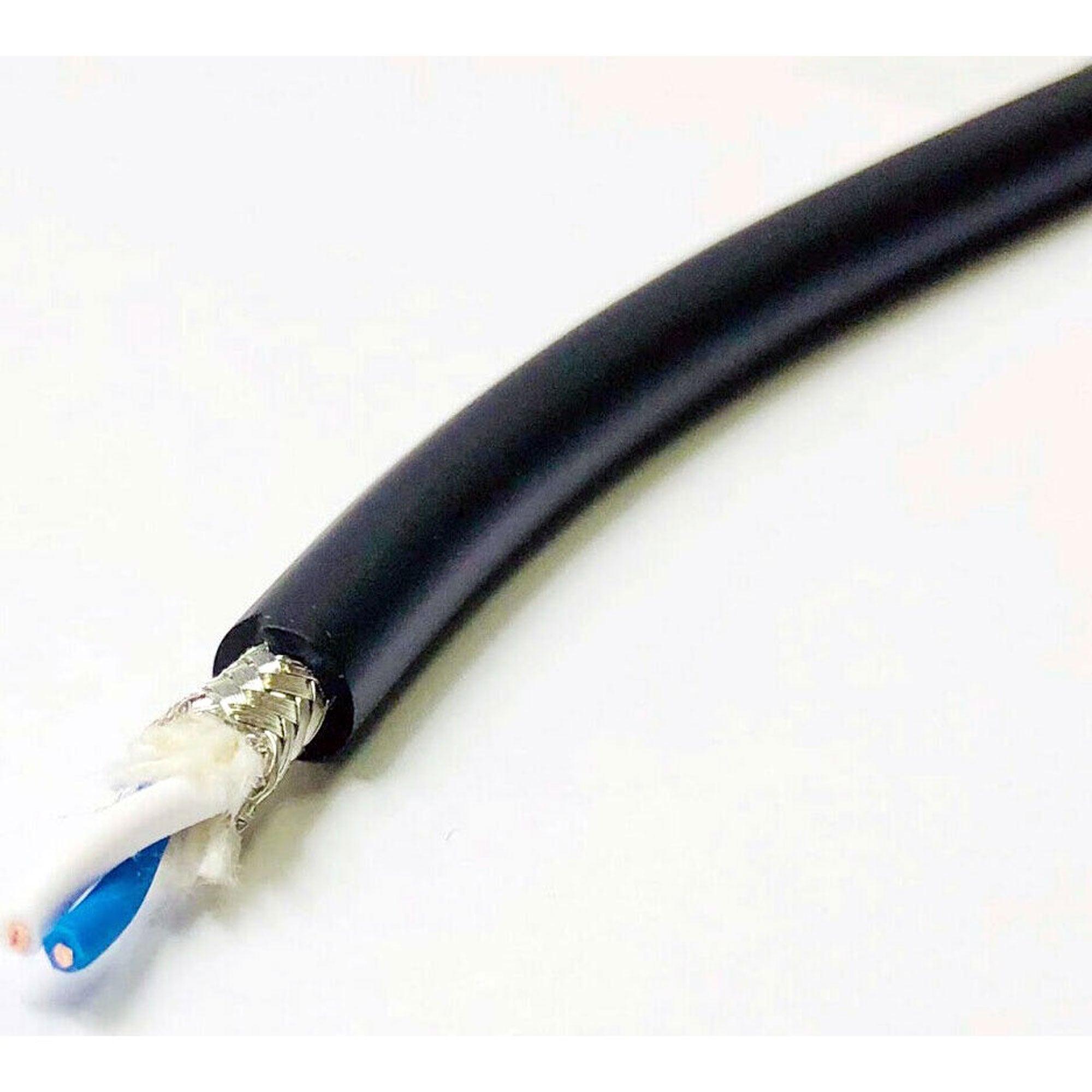

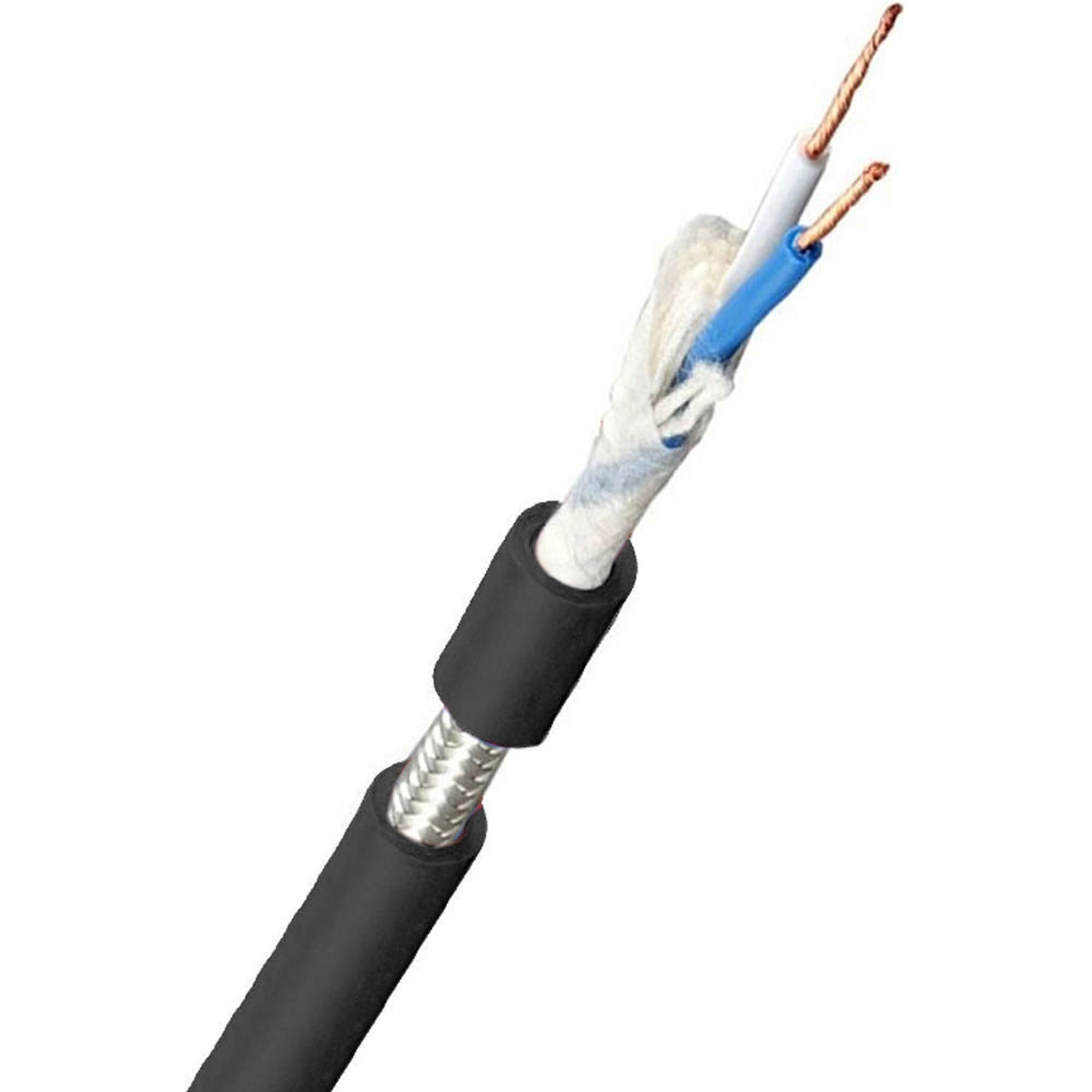

Canare L-2T2S 2-conductor Microphone Cable (Black, By the Foot)

Black Twisted Pair Microphone Cable with Braided Shield - Sold by the Foot

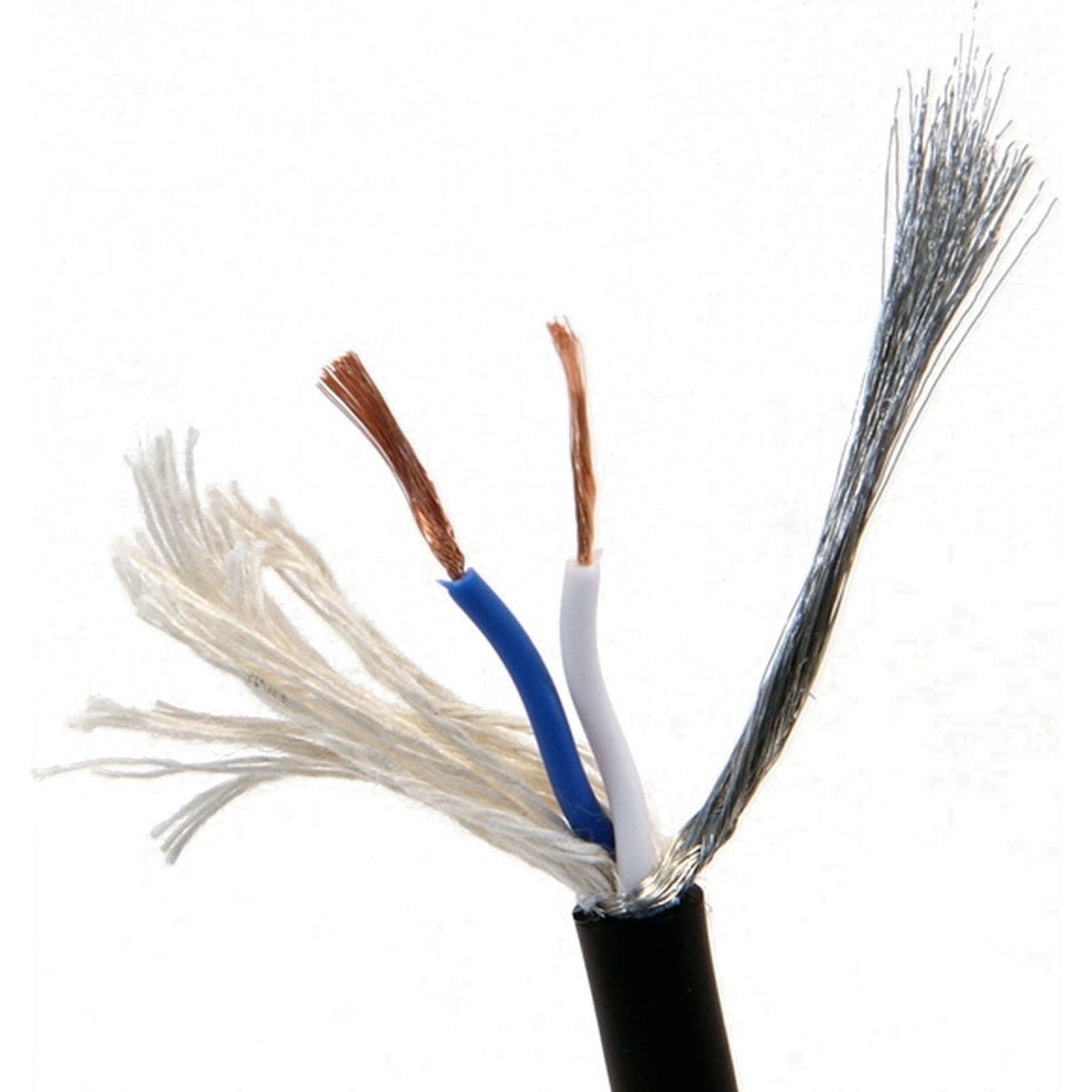

Our standard diameter 2-conductor microphone cable for general purpose audio applications. The high density braided copper shield and two inner conductors (composed of 60 thin strands of copper wire), allow for maximum flexibility and reduced handling noise. A special compound PVC outer jacket resists cracking and tears even in sub-zero environments.

Features:

• Braided Copper Shield
• Flexible in Extreme Cold Weather
• Reduced Handling Noise
• Rejects EMI and RFI

Specifications:

• Model: L-2T2S
• Std. Lng. ft. (m): 656 (200)
• Wt Std. Lng. lbs (kgs): 20 (9)
• Nom. O.D. in. (mm): .236 (6.00)
• Jacket Nom. Thick. in. (mm): .039 (1.0)
• Brittle Point F° (C°): -56 (-49)
• No. of Cond.: 2
• Insul. Type* Thick mil: IPE 19.7
• Cond-AWG (Qty./mil) Cross Sec. Area mil.²: AC - #23 (60/3.15) 465
• Pitch Twist Quad in. (mm): Less than 0.79 (less than 20)
• Shield Coverage: greater than 94% TAC Braid
• Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
• Cond. D.C.R. ohm/1000ft (ohm/100m): less than 19.8 (less than6.5)
• Shield D.C.R. ohm/1000ft (ohm/100m): less than 9.4 (less than 3.1)
• Nom. Cap. between conductors pF/m: 70
• Nom. Cap. between conductors to shield pF/m: 106
• Nom. Imp. ohm: 88
• Nom. Atten. V/1000ft (V/100m): 0.9 (0.3)
• Group Delay Time nS/ft (nS/m): 1.83 (6.00)
