Key Features
- Single Conductor
- Shielded
- 26 AWG
- Unbalanced Cable
- Hi-Fi Interconnect Cable
- Sold by the Foot
- Shipped in a Continuous Length
Description

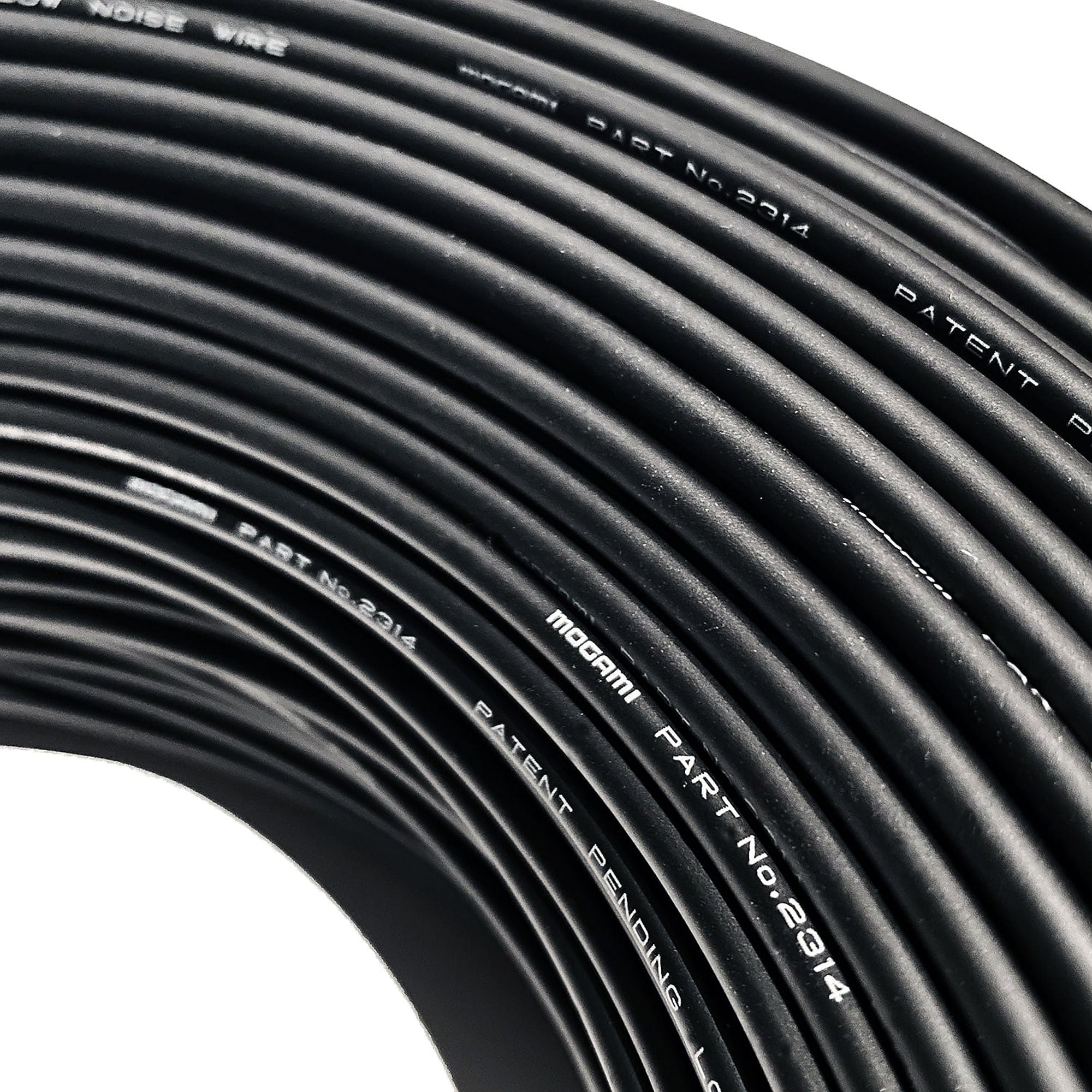

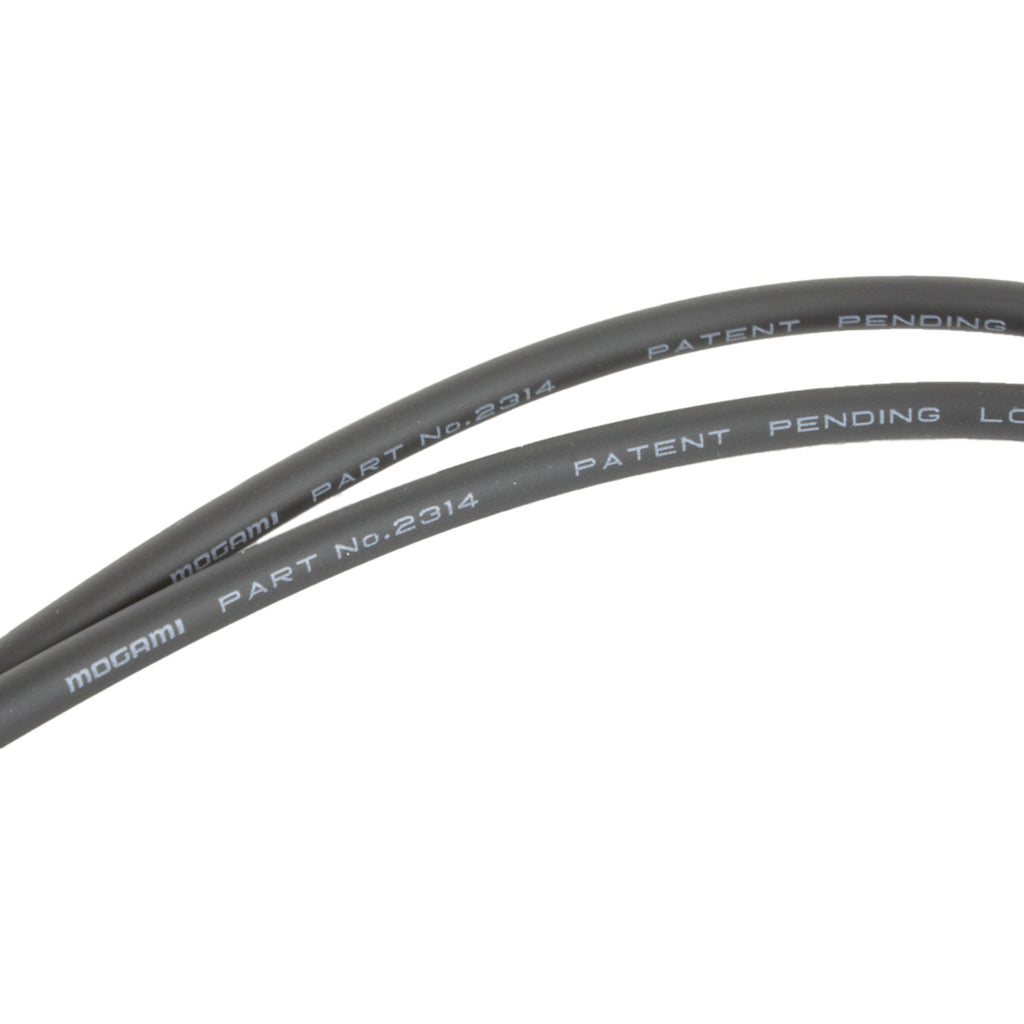

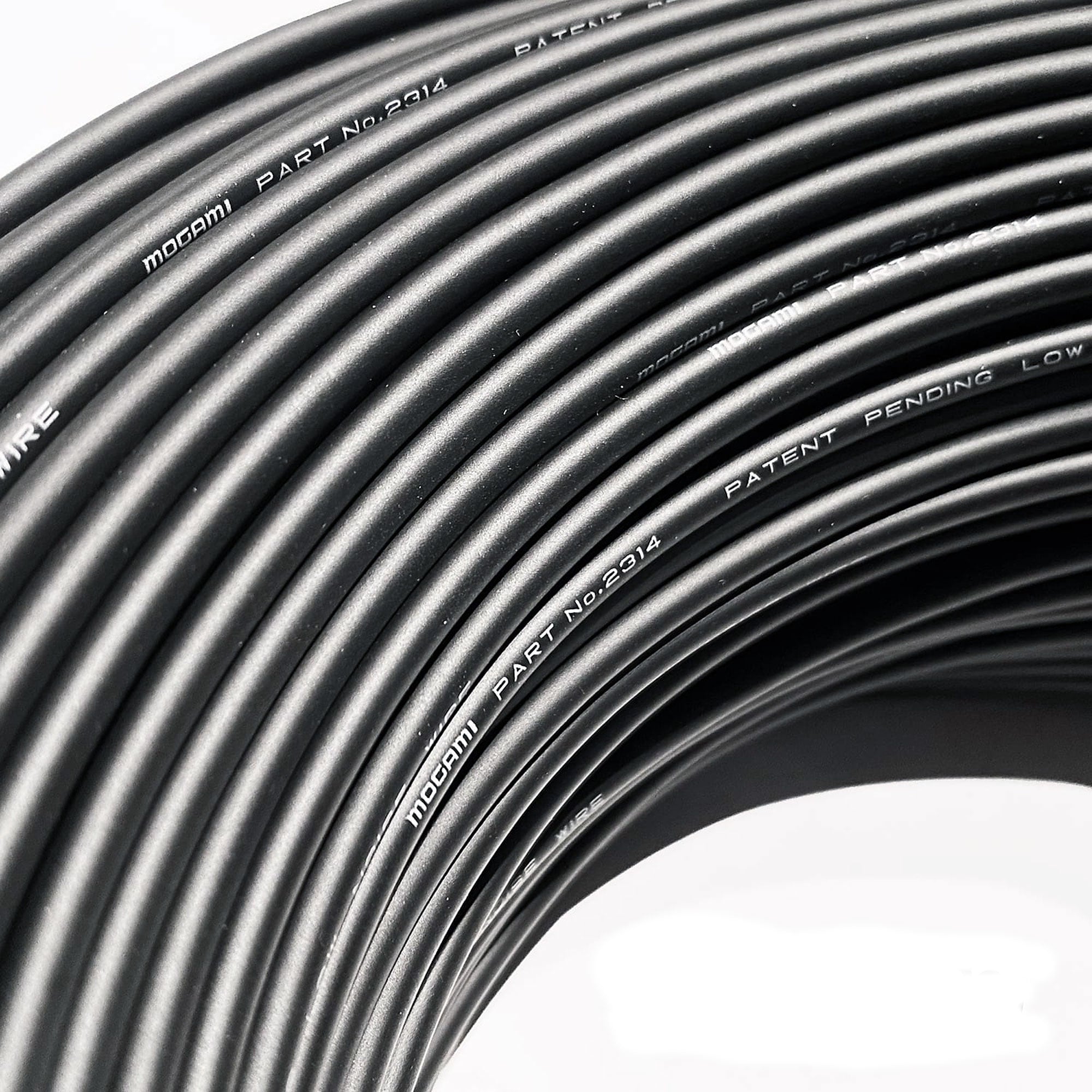

1 Conductor 26awg Unbalanced Coaxial Guitar/Instrument Audio Cable - Sold by the Foot

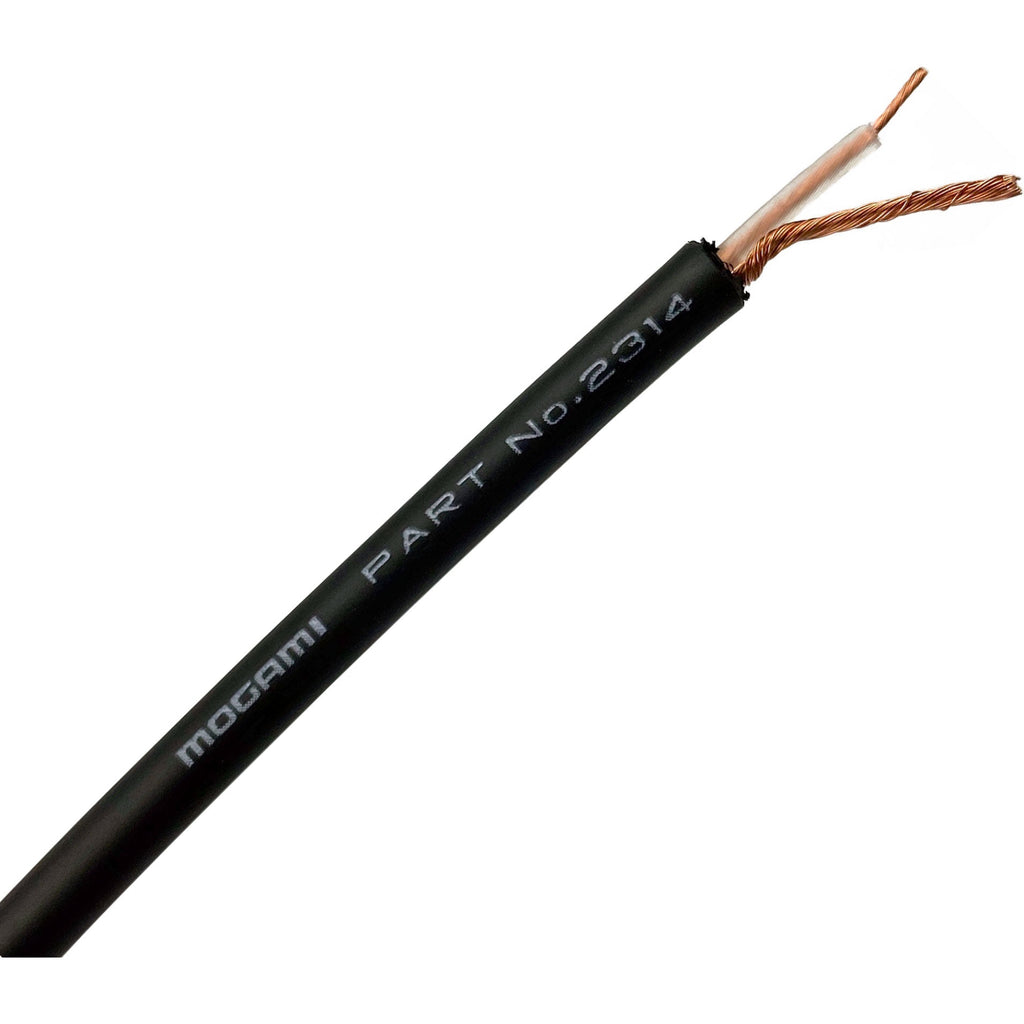

The Mogami W2314 miniature instrument cable is ideal for pedalboard effects, and wherever you need a high quality instrument cable with a coaxial design and small cross section. A professional quality low noise cable with great flexibility. Features a single conductor with spiral sheilding.
Available Colors: Black
Standard Roll Lengths: 656 feet
Specifications:
- Part No.: W2314
- No. of Conductor: 1
- Conductor Details: 30/0.08 A
- Conductor Size(mm²): 15mm² (#26 AWG)
- Insulation Ov. Dia.(mm): 1.5mm
- Insulation Material: XLPE
- Insulation Colors: Clear
- Served Shield: Approx. 37/0.12 Bare Copper
- Jacket Ov. Dia.(mm): 4.0mm (.157)
- Jacket Material: Flexible PVC
- Jacket Color: Black
- Roll Sizes: 200m (656Ft)
- Weight per 200m Roll: 4.4kg
- ELECTRICAL & MECHANICAL CHARACTERISTICS
- DC Resistance at 20°C Inner Cond.: 0.13Ω/m TYP.
- DC Resistance at 20°C Shield: 0.045Ω/m TYP.
- Capacitance at 1kHz, 20°C (Partial C. Value) See below figure* K0: 110pF/m TYP.
- Inductance between conductors at 1kHz. 20°C: 0.3µH/m TYP.
- Electrostatic Noise**: 50mV Max.
- Electromagnetic Noise**: LOD (Limit of Detection)
- Microphonics at 50KΩ Load**: 30mV Max.
- Insulation Resistance: 10^5MΩ. m Min. at DC 125V, 20°C
- Flex Life**: 18,200 cycles
- Tensile Strength: 260N
- Emigration: Non-emigrant to ABS resin
- Applicable Temperature: -20°C to +70°C(-4°F to +158°F)
